Description

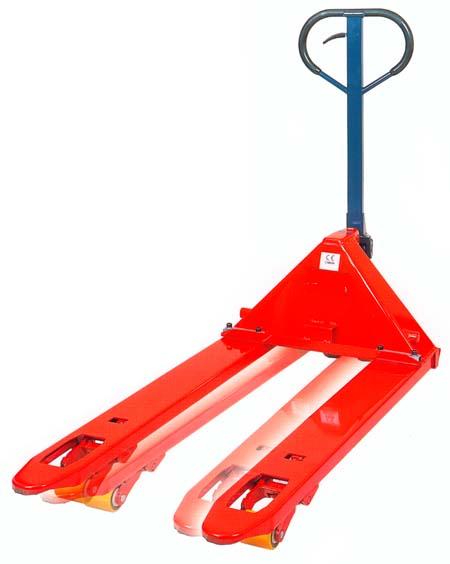

Ideal pallet truck for use with more then one pallet size or for unique applications.
A revolutionary hand pallet truck design – with adjustable forks.
• Move all your pallets with one pallet truck instead of two or even three!
• Ideal for applications where more than one type of pallet is used
• Great for special/unusual sized pallets thanks to “infinite” adjustment
• Available in three fork lengths and two fork width ranges
• Polyurethane wheels fitted as standard
• Supplied with single load rollers, tandem available at extra cost.
The 76mm lowered height makes this pallet truck a “semi-low profile” pallet truck. This allows it to fit into many special lower pallets, for example those coming from the US or the Far East.
Please see PDF below for full specification.
DOWNLOAD PDF
Specification
.tg {border-collapse:collapse;border-spacing:0;}
.tg td{border-color:black;border-style:solid;border-width:1px;font-family:Arial, sans-serif;font-size:14px;
overflow:hidden;padding:10px 5px;word-break:normal;}
.tg th{border-color:black;border-style:solid;border-width:1px;font-family:Arial, sans-serif;font-size:14px;
font-weight:normal;overflow:hidden;padding:10px 5px;word-break:normal;}
.tg .tg-baqh{text-align:center;vertical-align:top}
.tg .tg-4k42{background-color:#680100;color:#ffffff;font-weight:bold;text-align:center;vertical-align:top}
.tg .tg-amwm{font-weight:bold;text-align:center;vertical-align:top}
.tg .tg-rled{background-color:#680100;color:#efefef;font-weight:bold;text-align:center;vertical-align:top}
.tg .tg-0lax{text-align:left;vertical-align:top}
| Capacity
| Fork Height
| O/A Fork Width
| Fork Length
| Type
|
| 2200kg |
76mm to 196mm |
400 – 520mm |
900mm |
7156w |
| 2200kg |
76mm to 196mm |
400 – 520mm |
1050mm |
7157w |
| 2200kg |
76mm to 196mm |
400 – 520mm |
1150mm |
7158w |
| 2200kg |
76mm to 196mm |
530 – 680mm |
900mm |
7159w |
| 2200kg |
76mm to 196mm |
530 – 680mm |
1050mm |
7160w |
| 2200kg |
76mm to 196mm |
530 – 680mm |
1150mm |
7161w |
| OPTIONAL EXTRA |
| Tandem polyurethane rollers |
7163w |
