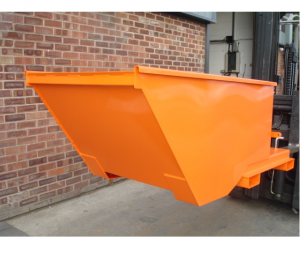

Automatic Roll Forward Skip

Price on Application

Category:

Description

Designed to simplify the holding, movement and disposal of material in confined areas with the unique ‘4 way entry’ base.

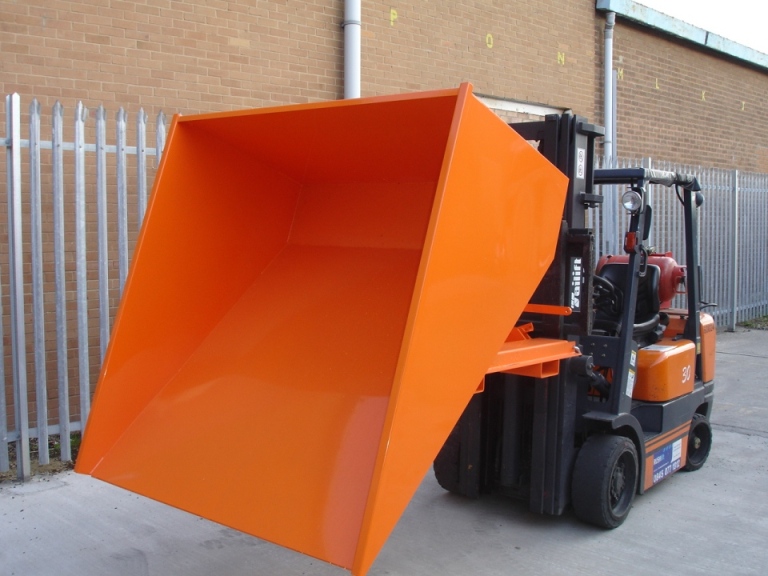

The skip is supplied with automatic tipping at high level for driver to empty the skip without leaving the safety of his seat.

• Low loading height
• Reinforced leading edge and body sides
• 4 way fork pocket entry
• Secondary Locking Mechanism to prevent accidental discharge
• Fully seam welded for retention of fluids
• Manual handle override
• Zinc plated heel pins for safe attachment to truck
• Nylon castors are available (factory fitted at time of manufacture), please contact us for pricing
• Painted bright orange for safety

Download PDF

Specification

.tg {border-collapse:collapse;border-spacing:0;}
.tg td{border-color:black;border-style:solid;border-width:1px;font-family:Arial, sans-serif;font-size:14px;
overflow:hidden;padding:10px 5px;word-break:normal;}
.tg th{border-color:black;border-style:solid;border-width:1px;font-family:Arial, sans-serif;font-size:14px;
font-weight:normal;overflow:hidden;padding:10px 5px;word-break:normal;}
.tg .tg-f8tx{color:#000000;text-align:center;vertical-align:top}
.tg .tg-1pye{color:#000000;font-weight:bold;text-align:center;vertical-align:top}

Model Nominal Capacity Capacity Max Fork Fork Centres Body Length Body Width Body Weight
1172w 0.9 m3 750kg 150 x 50mm 675mm 1600mm 1060mm 830mm*
1173w 1.2m3 960kg 150 x 50mm 675mm 1600mm 1300mm 830mm*
1174w 1.5m3 1100kg 150 x 50mm 675mm 1600mm 1560mm 830mm*

*Add 205mm to height to give overall skip height
