Description

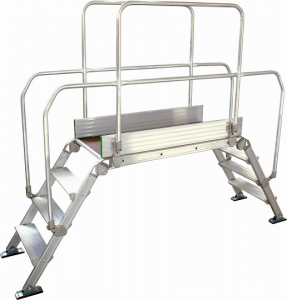

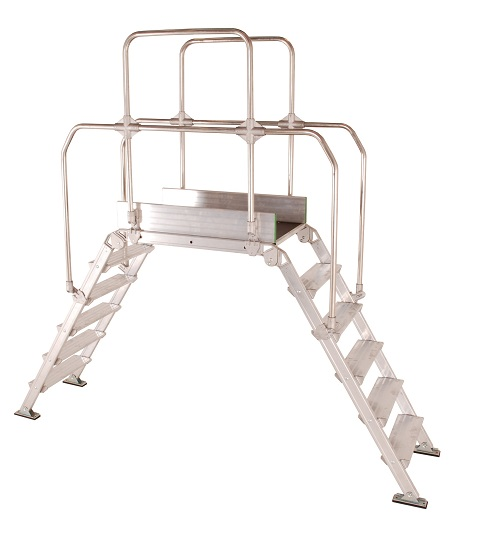

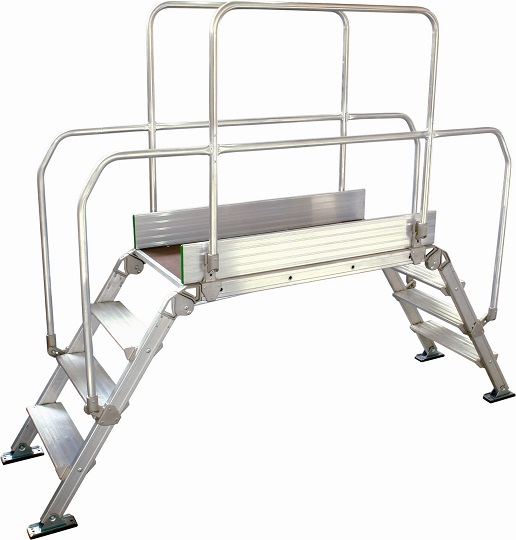

The Industrial Aluminium Bridging Step utilises extra-large 150mm deep steps with handrails on both sides of the platform for maximum safety.
Ideal for use in factories and distribution centres for safe access over machines and conveyor systems.
Product Features
• Supplied with double handrail for safety

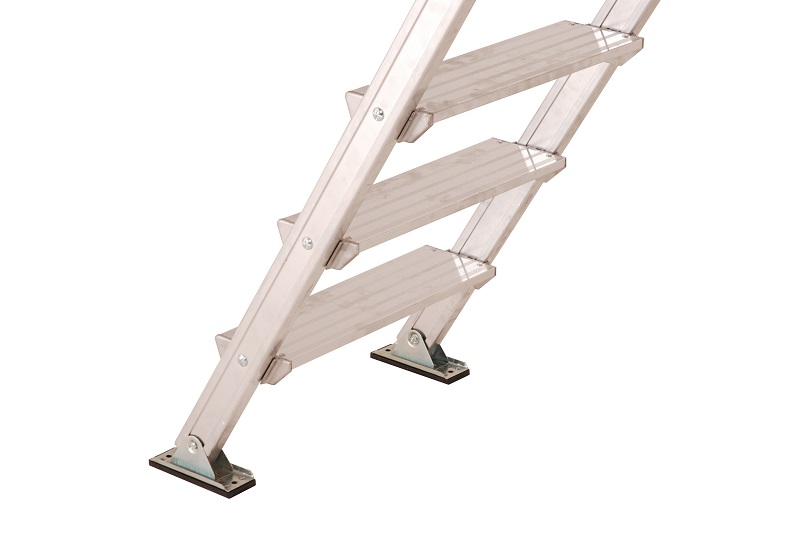

• Large 150mm deep steps
• Comfortable climbing angle
• Durable slip and wear resistant platform
• Can be used freestanding or secured to the floor

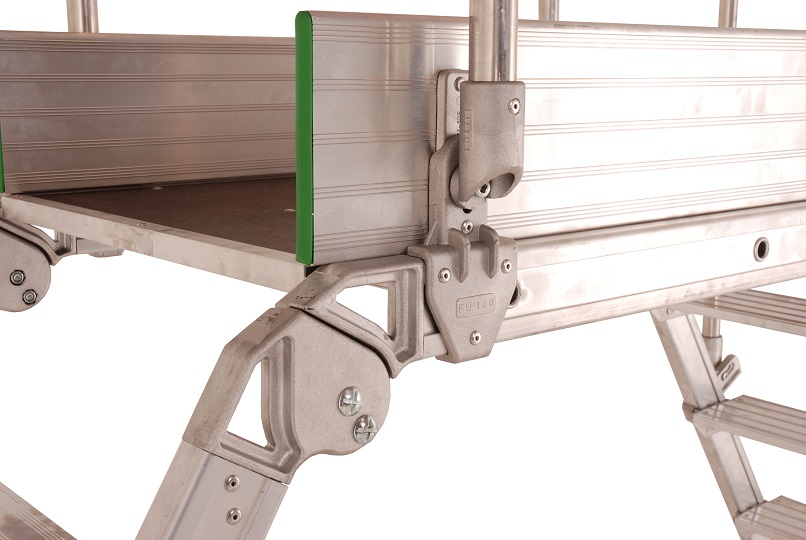

• Robust aluminium die-cast hinges
• Max Load 200kg
Please note: these are made on order and are non-returnable
Specification
.tg {border-collapse:collapse;border-spacing:0;}
.tg td{font-family:Arial, sans-serif;font-size:14px;padding:10px 5px;border-style:solid;border-width:1px;overflow:hidden;word-break:normal;border-color:black;}
.tg th{font-family:Arial, sans-serif;font-size:14px;font-weight:normal;padding:10px 5px;border-style:solid;border-width:1px;overflow:hidden;word-break:normal;border-color:black;}
.tg .tg-7fle{font-weight:bold;background-color:#efefef;text-align:center;vertical-align:top}
.tg .tg-s6z2{text-align:center;vertical-align:middle}
.tg .tg-baqh{text-align:center;vertical-align:top}
.tg .tg-amwm{font-weight:bold;text-align:center;vertical-align:top}
| Platform: 900mm deep x 530mm wide |
| Treads* |
Approx working
height** |
Platform
height |
Width |
Handrail
height |
Open
depth |
Weight |
Type |
| 3 |
2.3m |
0.7m |
0.6m |
1.3m |
1.7m |
32.0kg |
9251w |
| 4 |
2.5m |
0.9m |
0.6m |
1.3m |
1.9m |
35.0kg |
9252w |
| 5 |
2.7m |
1.1m |
0.6m |
1.5m |
2.2m |
36.5kg |
9253w |
| 6 |
2.9m |
1.3m |
0.6m |
1.8m |
2.4m |
38.0kg |
9254w |
| 7 |
3.1m |
1.5m |
0.6m |
2.0m |
2.7m |
39.5kg |
9255w |
| 8 |
3.4m |
1.8m |
0.6m |
2.3m |
2.9m |
41.0kg |
9256w |
| 9 |
3.6m |
2.0m |
0.6m |
2.5m |
3.2m |
42.5kg |
9257w |
| Platform: 1200mm deep x 530mm wide
|
| Treads* |
Approx working
height** |
Platform
height |
Width |
Handrail
height |
Open
depth |
Weight |
Type |
| 3 |
2.3m |
0.7m |
0.6m |
1.6m |
2.0m |
33.5kg |
9258w |
| 4 |
2.5m |
0.9m |
0.6m |
1.6m |
2.2m |
36.8kg |
9259w |
| 5 |
2.7m |
1.1m |
0.6m |
1.8m |
2.5m |
40.0kg |
9260w |
| 6 |
2.9m |
1.3m |
0.6m |
2.1m |
2.7m |
42.8kg |
9261w |
| 7 |
3.1m |
1.5m |
0.6m |
2.3m |
3.0m |
46.0kg |
9262w |
| 8 |
3.4m |
1.8m |
0.6m |
2.6m |
3.2m |
49.0kg |
9263w |
| 9 |
3.6m |
2.0m |
0.6m |
2.8m |
3.5m |
52.0kg |
9264w |
| Accessories |
| Castors |
Levellers |
Anti splay bars |
To suit treads |
To suit platform size |
Type |
| 2 |
2 |
2 |
3 – 4 treads |
900mm deep |
9265w |
| 2 |
2 |
2 |
5 – 9 treads |
9266w |
| 2 |
2 |
2 |
3 – 4 treads |
1200mm deep |
9267w |
| 2 |
2 |
2 |
5 – 9 treads |
9268w |
* Tread count includes top platform step
** Working height is calculated as 1,600mm plus the height of the platform or last climbing tread, whichever is appropriate
