Crowd Barriers

Price on Application

Category:

Description

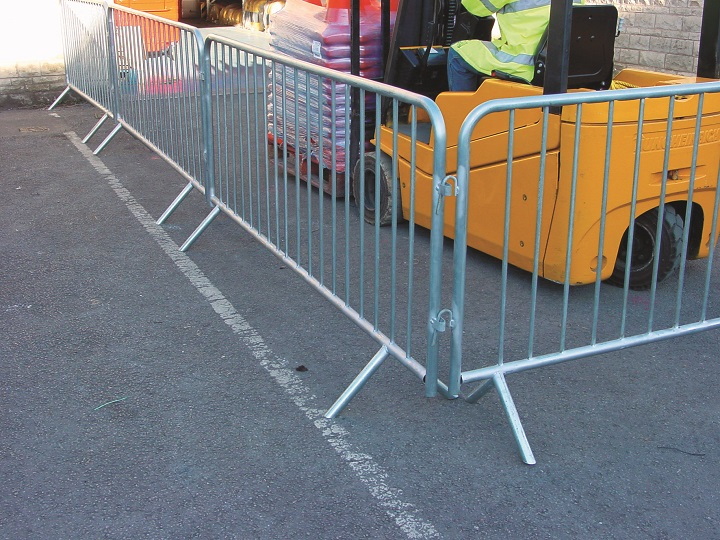

Crowd Barriers are supplied in 2 versions that meet most requirements, comprising of fixed leg and Low Profile Stands (LPS type), the latter featuring virtually flat support feet to reduce the risk of tripping. All barriers interlink to form a connected barrier.

Applications:
Crowd control, demarcation of pedestrians from traffic routes, public gatherings, events, queue control etc.

Specifications:

Fixed Leg 23 Crowd Barriers
• Dimensions: 2.25m long x 1.10m high
• Frame: 38.1mm Dia.
• Infill bars: 15
• Infill bar Dimension: 12.75mm Dia.
• Finish: Galvanised
• Style: Fixed leg

Fixed Leg 25 Crowd Barriers
• Dimensions: 2.50m long x 1.10m high
• Frame: 38.1mm Dia.
• Infill bars: 18
• Infill bar Dimension: 12.75mm Dia.
• Finish: Galvanised
• Style: Fixed leg



Specification

.tg {border-collapse:collapse;border-spacing:0;}
.tg td{border-color:black;border-style:solid;border-width:1px;font-family:Arial, sans-serif;font-size:14px;
overflow:hidden;padding:10px 5px;word-break:normal;}
.tg th{border-color:black;border-style:solid;border-width:1px;font-family:Arial, sans-serif;font-size:14px;
font-weight:normal;overflow:hidden;padding:10px 5px;word-break:normal;}
.tg .tg-zqun{background-color:#ffffff;color:#000000;font-weight:bold;text-align:center;vertical-align:middle}
.tg .tg-vxga{background-color:#ffffff;text-align:center;vertical-align:middle}
.tg .tg-i81m{background-color:#ffffff;text-align:center;vertical-align:top}
.tg .tg-scrz{background-color:#ffffff;color:#000000;font-weight:bold;text-align:center;vertical-align:top}

Crowd Barriers Model Overall height (mm) Overall barrier width Weight Type
Image Fixed Leg 23 1100mm 2250mm 10kg 9035w
Fixed Leg 25 2580mm 15kg 9036w
