Description

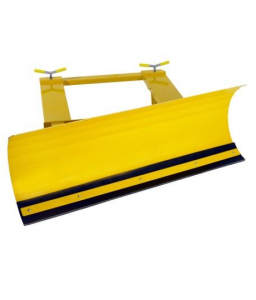

Heavy duty snow plough and yard scraper attachment to fit most fork lift trucks. Fixed left hand sweep angle of 15°.
Heavy duty concave blade with bolt on 12mm thick reversible rubber wear strip. When not used for snow clearing can be utilised as general purpose yard scraper.
Wear Strip Thickness: 12mm

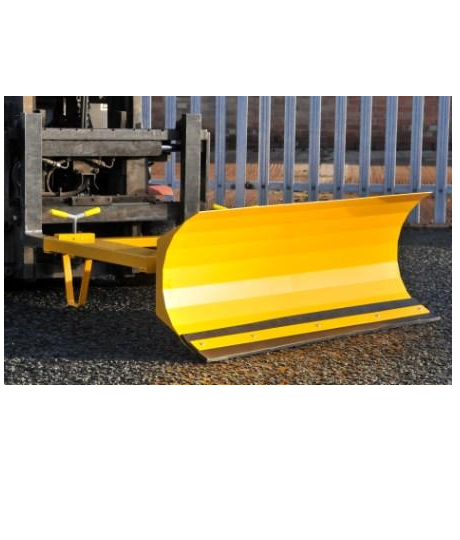

Plough fits over forks and is secured with zinc plated ‘T’ bar screws.
Fork pockets H x W: 160 x 50mm.
Fork centres: 800mm.
Finish: Yellow epoxy coated
Specification
.tg {border-collapse:collapse;border-spacing:0;}
.tg td{border-color:black;border-style:solid;border-width:1px;font-family:Arial, sans-serif;font-size:14px;
overflow:hidden;padding:10px 5px;word-break:normal;}
.tg th{border-color:black;border-style:solid;border-width:1px;font-family:Arial, sans-serif;font-size:14px;
font-weight:normal;overflow:hidden;padding:10px 5px;word-break:normal;}
.tg .tg-7fle{background-color:#efefef;font-weight:bold;text-align:center;vertical-align:top}
.tg .tg-baqh{text-align:center;vertical-align:top}
.tg .tg-4k42{background-color:#680100;color:#ffffff;font-weight:bold;text-align:center;vertical-align:top}
.tg .tg-amwm{font-weight:bold;text-align:center;vertical-align:top}
| SNOW PLOUGHS |
REPLACEMENT RUBBER WEAR STRIPS |
| Blade Width |
Blade height |
Overall depth |
Weight |
Type |
Type |
| 1200mm |
510mm |
1350mm |
79kg |
6953w |
6956w |
| 1500mm |
510mm |
1350mm |
98kg |
6954w |
6957w |
| 2000mm |
510mm |
1350mm |
123kg |
6955w |
6958w |
