Description
> Smooth running HD Elastic wheels and castors 160mm dia
> Ideal for food processing, textile, chemical industries, etc
> Very low rolling resistance
> Zinc plated steel housing
> Double race precision ball bearings
HD Black Elastic Wheels
Price on Application
Specification
.tg {border-collapse:collapse;border-spacing:0;}
.tg td{font-family:Arial, sans-serif;font-size:14px;padding:10px 5px;border-style:solid;border-width:1px;overflow:hidden;word-break:normal;}
.tg th{font-family:Arial, sans-serif;font-size:14px;font-weight:normal;padding:10px 5px;border-style:solid;border-width:1px;overflow:hidden;word-break:normal;}
.tg .tg-baqh{text-align:center;vertical-align:top}
.tg .tg-amwm{font-weight:bold;text-align:center;vertical-align:top}

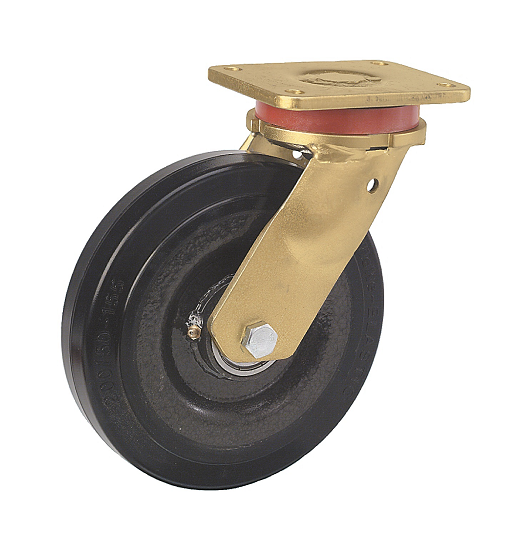

| Wheel dia | Capacity | Hole Spacing | Plate W x D | Overall Height | Swivel Castor Type |

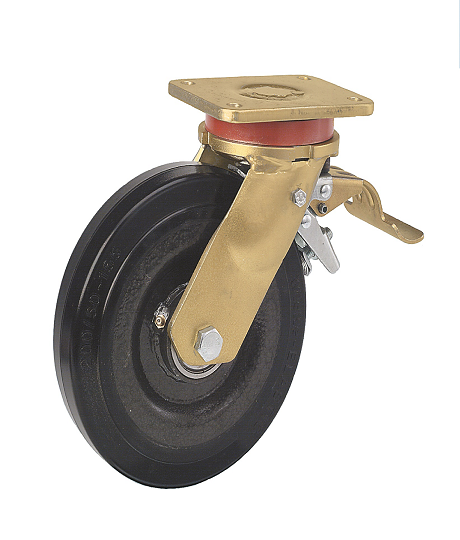

Swivel Braked Castor Type |

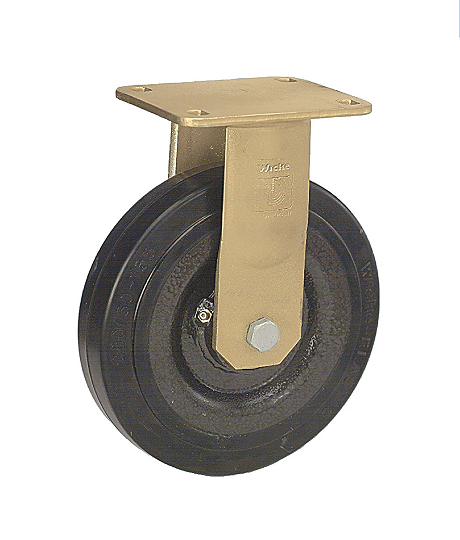

Fixed Castor Type |

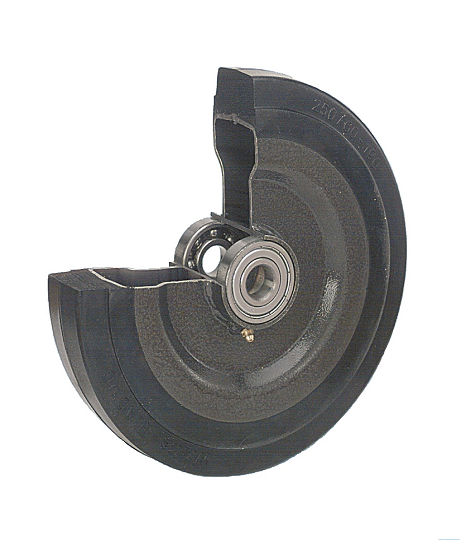

Wheel Type |
|---|---|---|---|---|---|---|---|---|
| 160mm | 380kg | 105 x 80mm | 135 x 110mm | 205mm | 4380w | 4381w | 4382w | 4383w |
| 200mm | 450kg | 105 x 80mm | 135 x 110mm | 245mm | 4384w | 4385w | 4386w | 4387w |
| 250mm | 750kg | 140 x 105mm | 175 x 140mm | 305mm | 4388w | 4389w | 4390w | 4391w |
