Description
• Welded steel tube and bar construction.
• Treads: 560 x 175mm deep
• Platform: 560 x 400mm deep.
• Handrail height above platform: 960mm
• Max load: 150kg

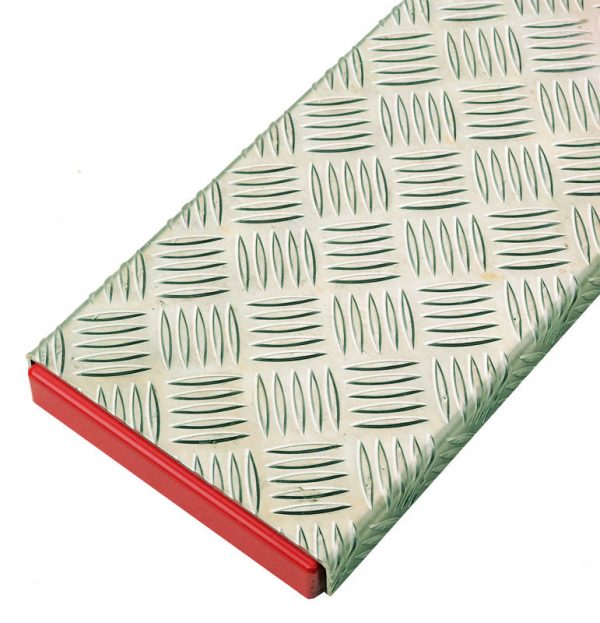

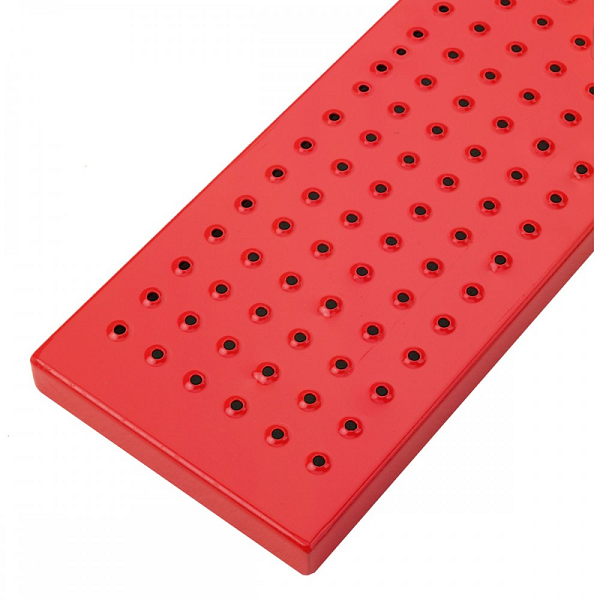

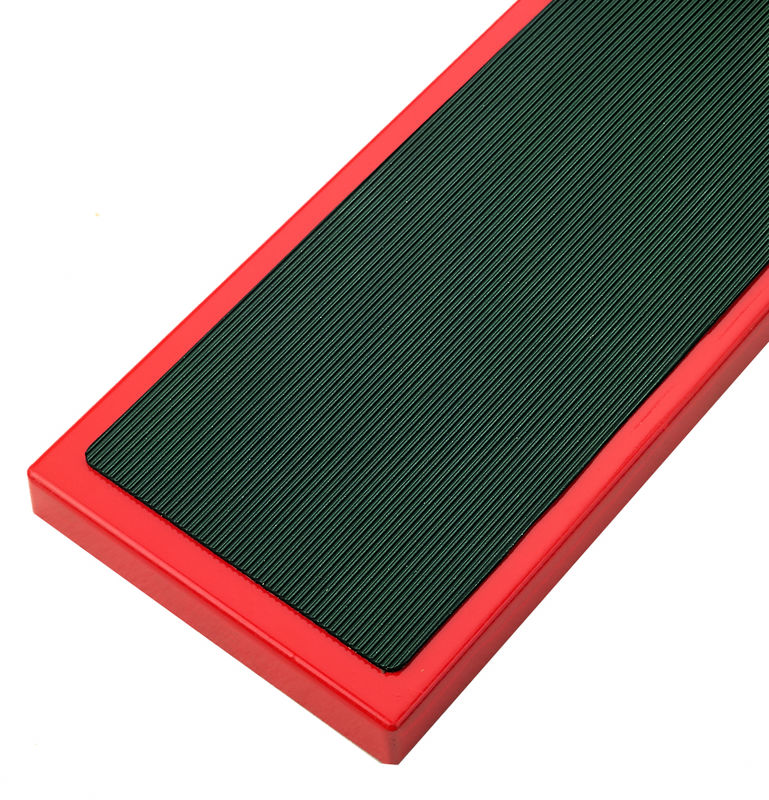

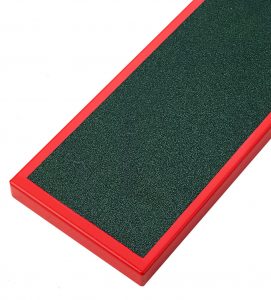

• Tread options: ribbed rubber, punched steel, anti slip or aluminium
• Fitted with handlock anchorage, when clocked the front feet rest firmly on the floor, feet fitted with protective plastic floor pads. The outboard axle mounted rear wheels give extra stability.
• Wheels: front 2 x 100mm dia swivel rubber tyred wheels with roller bearings. Rear 2 x 200mm dia axle mounted rubber tyred wheels with roller bearings.
• Kite-marked to BS EN 131-7
• Finish: all steelwork red epoxy finish.
• Caution Notice: a ‘caution’notice is fitted to each set to reminder user of operation procedure. A health and safety at work information sheet is supplied.
Specification
.tg {border-collapse:collapse;border-spacing:0;}
.tg td{font-family:Arial, sans-serif;font-size:14px;padding:10px 5px;border-style:solid;border-width:1px;overflow:hidden;word-break:normal;border-color:black;}
.tg th{font-family:Arial, sans-serif;font-size:14px;font-weight:normal;padding:10px 5px;border-style:solid;border-width:1px;overflow:hidden;word-break:normal;border-color:black;}
.tg .tg-88nc{font-weight:bold;border-color:inherit;text-align:center}
.tg .tg-yj5y{background-color:#efefef;border-color:inherit;text-align:center;vertical-align:top}
.tg .tg-v0hj{font-weight:bold;background-color:#efefef;border-color:inherit;text-align:center;vertical-align:top}
.tg .tg-c3ow{border-color:inherit;text-align:center;vertical-align:top}
.tg .tg-uys7{border-color:inherit;text-align:center}
.tg .tg-l04w{font-weight:bold;background-color:#efefef;border-color:inherit;text-align:center}
.tg .tg-7g6k{font-weight:bold;background-color:#ffffff;border-color:inherit;text-align:center;vertical-align:top}
.tg .tg-7btt{font-weight:bold;border-color:inherit;text-align:center;vertical-align:top}
.tg .tg-fymr{font-weight:bold;border-color:inherit;text-align:left;vertical-align:top}
.tg .tg-0pky{border-color:inherit;text-align:left;vertical-align:top}
Treads
(incl
Platform) |
Average
Working
Height |
Platform
Height |
Overall
H x W x H |
Ribbed Rubber |
Punched Steel |
Anti-slip |
Aluminium |
| Type |
Weight |
Type |
Weight |
Type |
Weight |
Type |
Weight |
| 3 |
2250mm |
750mm |
1710 x 780 x 860mm |
9434w |
48kg |
9448w |
46kg |
9462w |
48kg |
9476w |
49kg |
| 4 |
2500mm |
1000mm |
1960 x 780 x 1040mm |
9435w |
50kg |
9449w |
48kg |
9463w |
50kg |
9477w |
51kg |
| 5 |
2750mm |
1250mm |
2210 x 850 x 1220mm |
9436w |
53kg |
9450w |
51kg |
9464w |
53kg |
9478w |
54kg |
| 6 |
3000mm |
1500mm |
2460 x 850 x 1400mm |
9437w |
58kg |
9451w |
56kg |
9465w |
58kg |
9479w |
60kg |
| 7 |
3250mm |
1750mm |
2710 x 850 x 1580mm |
9438w |
63kg |
9452w |
61kg |
9466w |
63kg |

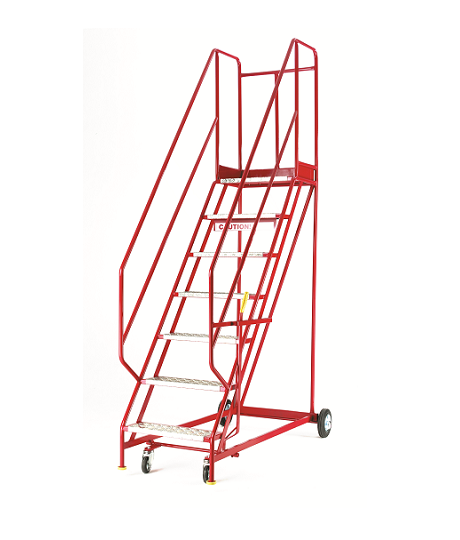

9480w |
65kg |
| 8 |
3500mm |
2000mm |
2960 x 850 x 1760mm |
9439w |
70kg |
9453w |
68kg |
9467w |
70kg |
9481w |
73kg |
| 9 |
3750mm |
2250mm |
3210 x 850 x 1940mm |
9440w |
76kg |
9454w |
73kg |
9468w |
76kg |
9482w |
78kg |
| 10* |
4000mm |
2500mm |
3460 x 1000 x 2200mm |
9441w |
89kg |
9455w |
85kg |
9469w |
89kg |
9483w |
92kg |
| 11* |
4250mm |
2750mm |
3710 x 1000 x 2380mm |
9442w |
98kg |
9456w |
94kg |
9470w |
98kg |
9484w |
101kg |
| 12* |
4500mm |
3000mm |
3960 x 1000 x 2560mm |
9443w |
110kg |
9457w |
106kg |
9471w |
110kg |
9485w |
113kg |
| 13* |
4750mm |
3250mm |
4210 x 1250 x 2740mm |
9444w |
117kg |
9458w |
112kg |
9472w |
117kg |
9486w |
121kg |
| 14* |
5000mm |
3500mm |
4460 x 1250 x 2920mm |
9445w |
124kg |
9459w |
120kg |
9473w |
124kg |
9487w |
127kg |
| 15* |
5250mm |
3750mm |
4710 x 1300 x 3100mm |
9446w |
160kg |
9460w |
158kg |
9474w |
160kg |
9488w |
161kg |
| 16* |
5500mm |
4000mm |
4960 x 1450 x 3280mm |
9447w |
169kg |
9461w |
167kg |
9475w |
169kg |
9489w |
170kg |
| **FACTORY FITTED OPTIONAL EXTRAS |
| Description |
Type |
Description |
Type |
| Platform Gate to end |
9490w |
Platform Chain to front |
9497w |
| Platform Gate to left side |
9491w |
Platform Chain to left side |
9498w |
| Platform Gate to right side |
9492w |
Platform Chain to right side |
9499w |
| Double Hinged Bar to end |
9493w |
Platform Chain to end |
9500w |
| Double Hinged Bar to left side |
9494w |
Security Gate fitted to bottom of steps with padlock facility |
9501w |
| Double Hinged Bar to right side |
9495w |
Hook-on Tray 5kg swl, 600mm long x 250mm wide x 220mm deep |
9502w |
| Double Hinged Bar to front |
9496w |
Hook-on Wire Tray 5kg swl, 600mm long x 250mm wide x 220mm deep |
9503w |
* 10 Tread and above will be supplied in 2 parts ready for easy assembly
** Goods with Factory fitted optional extras have no option for return
