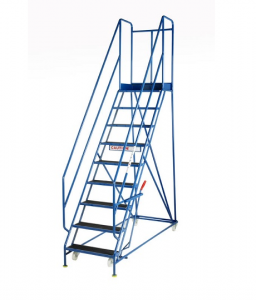

Description
• Welded steel tube and bar construction.
• Treads: choice of 610 x 175mm or 760 x 175mm deep
• Platform: either 610 x 457mm deep or 760 x 457mm
• Handrail height above platform: 960mm

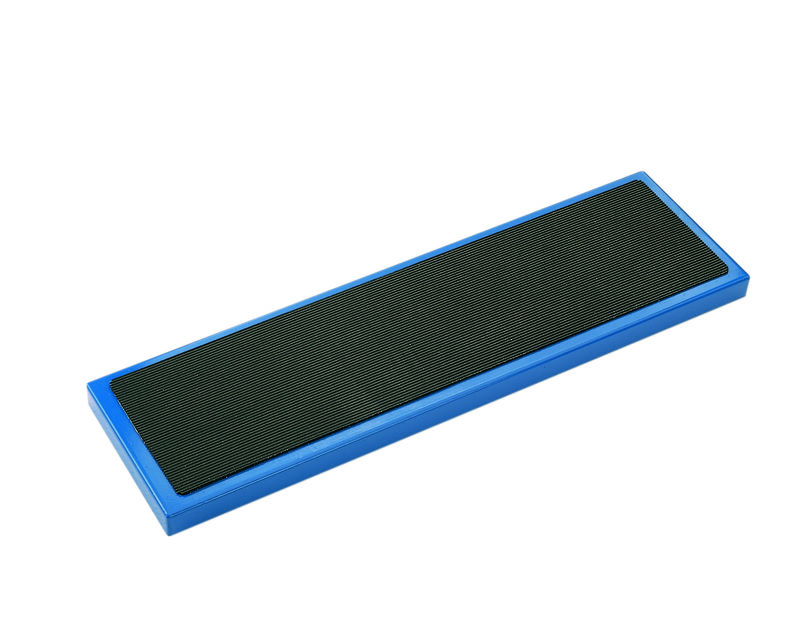

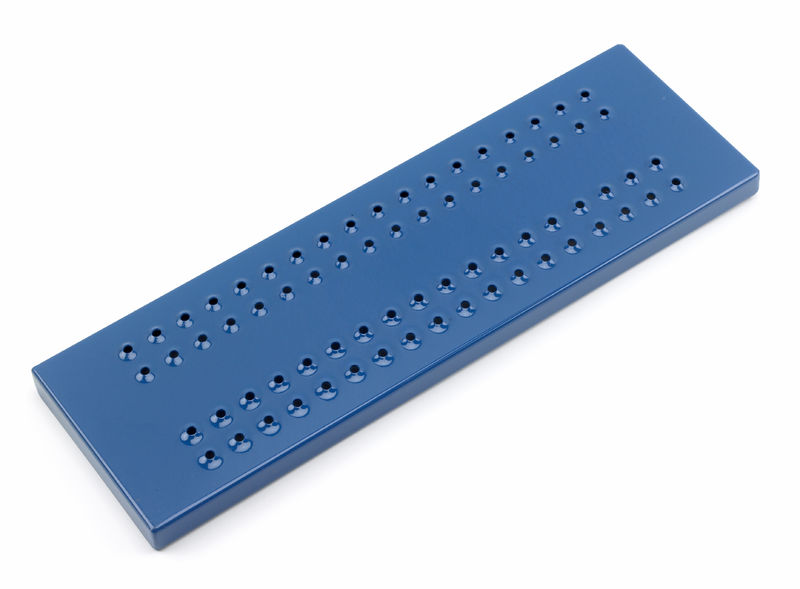

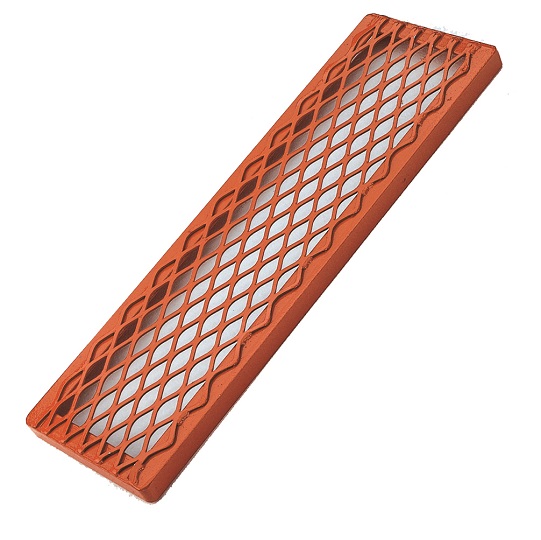

• Tread options: ribbed rubber, punched steel, anti slip or expamet
• Fitted with handlock anchorage, when clocked the front feet rest firmly on the floor, feet fitted with protective plastic floor pads.
• Wheels: front 2 x 100mm dia front swivel nylon wheels , 2 x 100mm dia rear nylon fixed castors, all with roller bearings.
• Designed to conform to BS EN 131-7
• Finish: all steelwork blue epoxy finish.
Caution Notice: a ‘caution’notice is fitted to each set to reminder user of operation procedure. A health and safety at work information sheet is supplied.
Specification
.tg {border-collapse:collapse;border-spacing:0;}
.tg td{font-family:Arial, sans-serif;font-size:14px;padding:10px 5px;border-style:solid;border-width:1px;overflow:hidden;word-break:normal;border-color:black;}
.tg th{font-family:Arial, sans-serif;font-size:14px;font-weight:normal;padding:10px 5px;border-style:solid;border-width:1px;overflow:hidden;word-break:normal;border-color:black;}
.tg .tg-88nc{font-weight:bold;border-color:inherit;text-align:center}
.tg .tg-yj5y{background-color:#efefef;border-color:inherit;text-align:center;vertical-align:top}
.tg .tg-v0hj{font-weight:bold;background-color:#efefef;border-color:inherit;text-align:center;vertical-align:top}
.tg .tg-c3ow{border-color:inherit;text-align:center;vertical-align:top}
.tg .tg-uys7{border-color:inherit;text-align:center}
.tg .tg-l04w{font-weight:bold;background-color:#efefef;border-color:inherit;text-align:center}
.tg .tg-7g6k{font-weight:bold;background-color:#ffffff;border-color:inherit;text-align:center;vertical-align:top}
.tg .tg-7btt{font-weight:bold;border-color:inherit;text-align:center;vertical-align:top}
.tg .tg-0pky{border-color:inherit;text-align:left;vertical-align:top}
.tg .tg-fymr{font-weight:bold;border-color:inherit;text-align:left;vertical-align:top}
| TREAD WIDTH 610mm – PLATFORM W X D: 610 X 457mm |
Treads
(incl
Platform) |
Average
Working
Height |
Platform
Height |
Overall
H x W x H |
Ribbed Rubber |
Expamet |
Anti-slip |
Punched |
| Type |
Weight |
Type |
Weight |
Type |
Weight |
Type |
Weight |
| 4 |
2400mm |
915mm |
1875 x 760 x 1085mm |
9504w |
45kg |
9513w |
45kg |
9522w |
45kg |
9531w |
43kg |
| 5 |
2700mm |
1145mm |
2105 x 760 x 1260mm |
9505w |
50kg |
9514w |
50kg |
9523w |
50kg |
9532w |
48kg |
| 6 |
2900mm |
1370mm |
2330 x 760 x 1435mm |
9506w |
56kg |
9515w |
56kg |
9524w |
56kg |
9533w |
53kg |
| 7 |
3100mm |
1600mm |
2560 x 760 x 1690mm |
9507w |
65kg |
9516w |
65kg |
9525w |
65kg |
9534w |
62kg |
| 8 |
3400mm |
1830mm |
2790 x 760 x 1865mm |
9508w |
70kg |
9517w |
70kg |
9526w |
70kg |
9535w |
67kg |
| 9 |
3600mm |
2060mm |
3020 x 760 x 2045mm |
9509w |
76kg |
9518w |
76kg |
9527w |
76kg |
9536w |
73kg |
| 10* |
3800mm |
2285mm |
3245 x 760 x 2225mm |
9510w |
88kg |
9519w |
88kg |
9528w |
88kg |
9537w |
84kg |
| 11* |
4000mm |
2515mm |
3475 x 760 x 2400mm |
9511w |
96kg |
9520w |
96kg |
9529w |
96kg |
9538w |
91kg |
| 12* |
4300mm |
2745mm |
3705 x 760 x 2580mm |
9512w |
104kg |
9521w |
104kg |
9530w |
104kg |
9539w |
99kg |
| TREAD WIDTH 760mm – PLATFORM W X D: 760 X 457mm |
|
Treads
(incl
Platform) |
Average
Working
Height |
Platform
Height |
Overall
H x W x H |
Ribbed Rubber |
Expamet |
Anti Slip |
Punched |
| Type |
Weight |
Type |
Weight |
Type |
Weight |
Type |
Weight |
| 5 |
2700mm |
1145mm |
2105 x 915 x 1260mm |
9540w |
60kg |
9550w |
56kg |
9560w |
60kg |
9570w |
58kg |
| 6 |
2900mm |
1370mm |
2330 x 915 x 1435mm |
9541w |
66kg |
9551w |
62kg |
9561w |
66kg |
9571w |
64kg |
| 7 |
3100mm |
1600mm |
2560 x 915 x 1690mm |
9542w |
76kg |
9552w |
72kg |
9562w |
76kg |
9572w |
74kg |
| 8 |
3400mm |
1830mm |
2790 x 915 x 1865mm |
9543w |
84kg |
9553w |
79kg |
9563w |
84kg |
9573w |
82kg |
| 9 |
3600mm |
2060mm |
3020 x 915 x 2045mm |
9544w |
91kg |
9554w |
86kg |
9564w |
91kg |
9574w |
88kg |
| 10* |
3800mm |
2285mm |
3245 x 915 x 2225mm |
9545w |
105kg |
9555w |
99kg |
9565w |
105kg |
9575w |
102kg |
| 11* |
4000mm |
2515mm |
3475 x 915 x 2400mm |
9546w |
114kg |
9556w |
107kg |
9566w |
114kg |
9576w |
110kg |
| 12* |
4300mm |
2745mm |
3705 x 915 x 2580mm |
9547w |
123kg |
9557w |
115kg |
9567w |
123kg |
9577w |
118kg |
| 13* |
4500mm |
2975mm |
3935 x 915 x 2755mm |
9548w |
130kg |
9558w |
122kg |
9568w |
130kg |
9578w |
127kg |
| 14* |
4700mm |
3200mm |
4160 x 915 x 2935mm |
9549w |
138kg |
9559w |
130kg |
9569w |
138kg |
9579w |
134kg |
| **FACTORY FITTED OPTIONAL EXTRAS |
| Description |
Type |
Description |
Type |

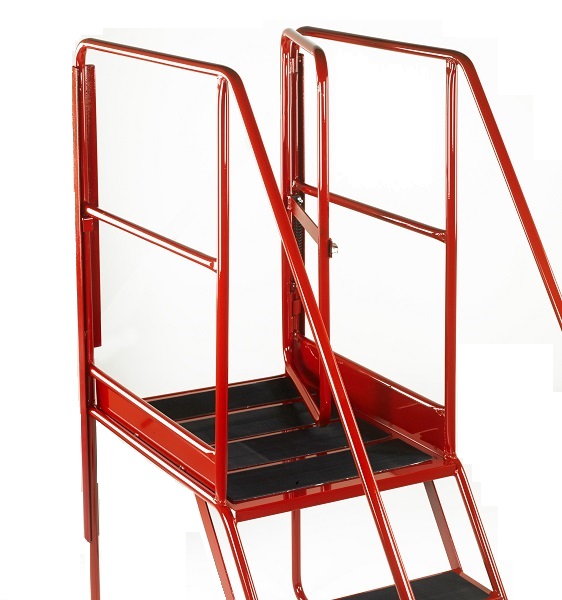

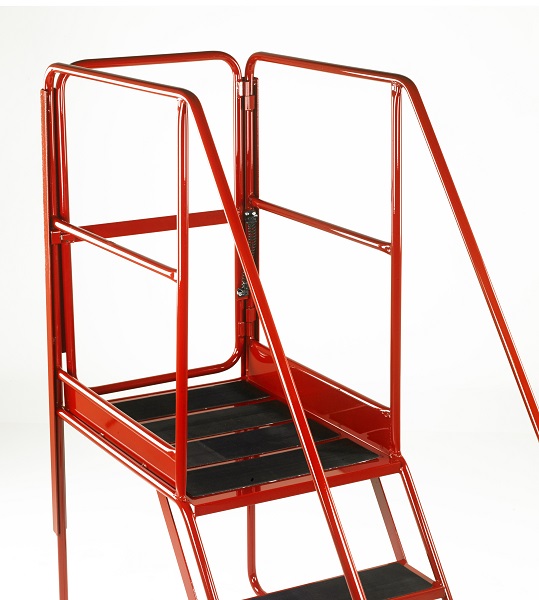

| Platform Gate to end |
9490w |

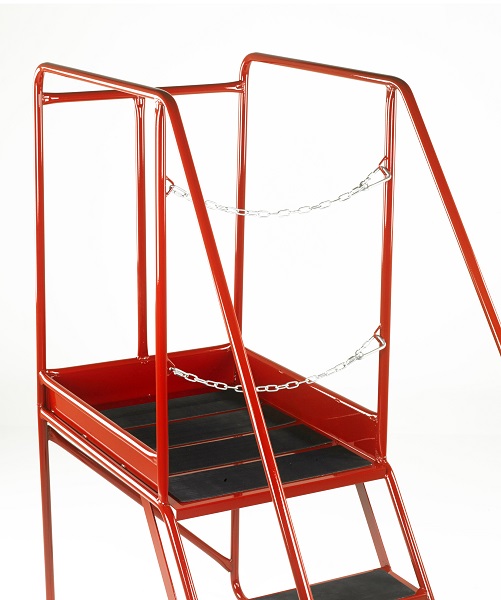

Platform Chain to front |
9497w |

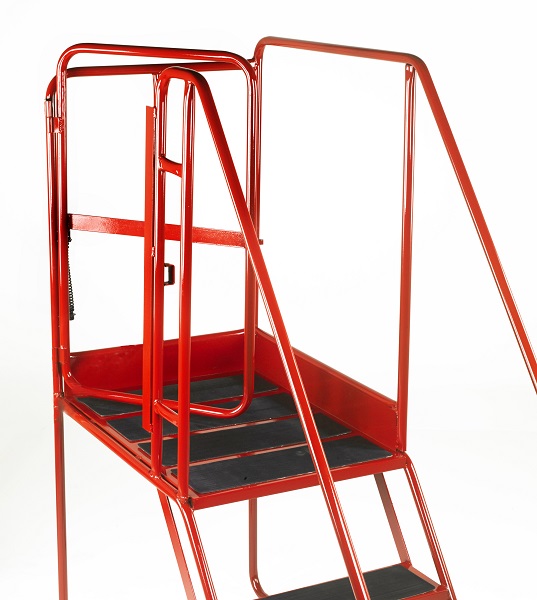

| Platform Gate to left side |
9491w |

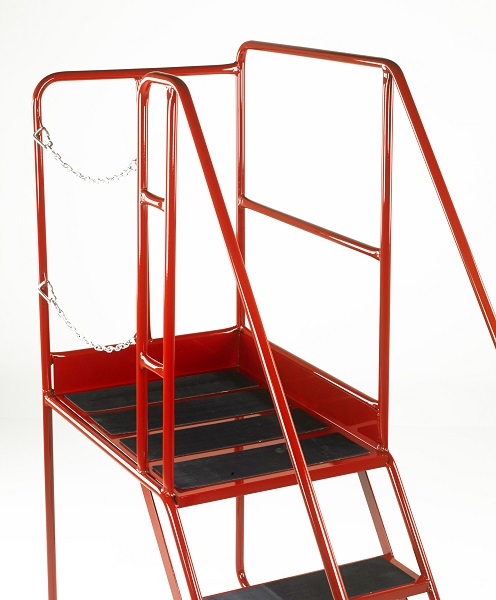

Platform Chain to left side |
9498w |
| Platform Gate to right side |
9492w |
Platform Chain to right side |
9499w |

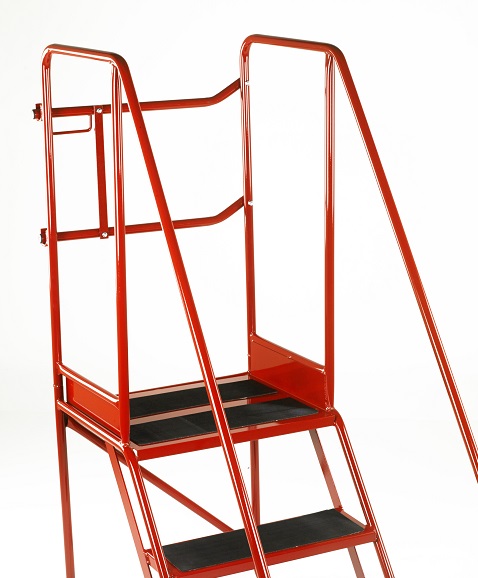

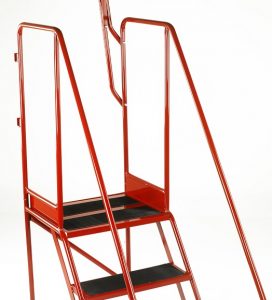

| Double Hinged Bar to end |
9493w |

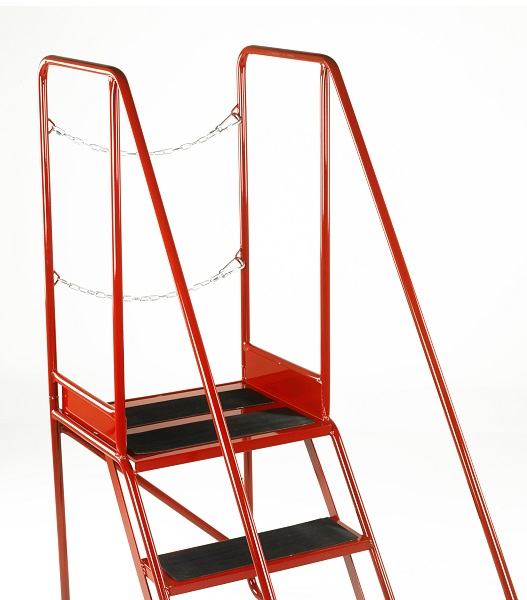

Platform Chain to end |
9500w |

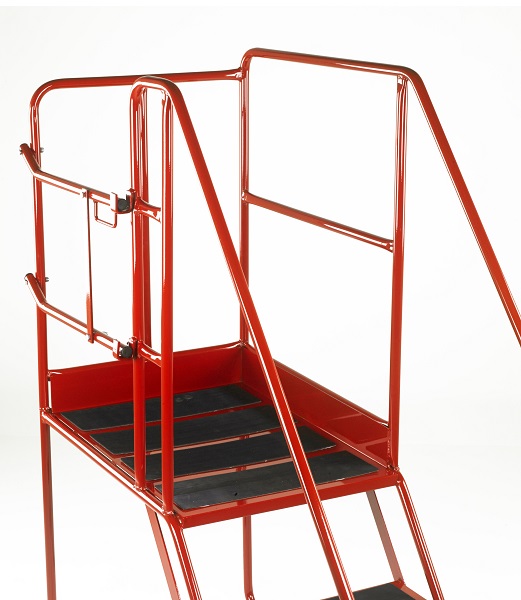

| Double Hinged Bar to left side |
9494w |
Security Gate fitted to bottom of steps with padlock facility |
9501w |
| Double Hinged Bar to right side |
9495w |

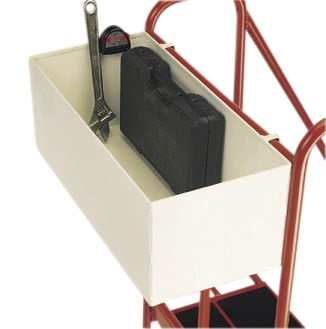

Hook-on Tray 5kg swl, 600mm long x 250mm wide x 220mm deep |
9502w |

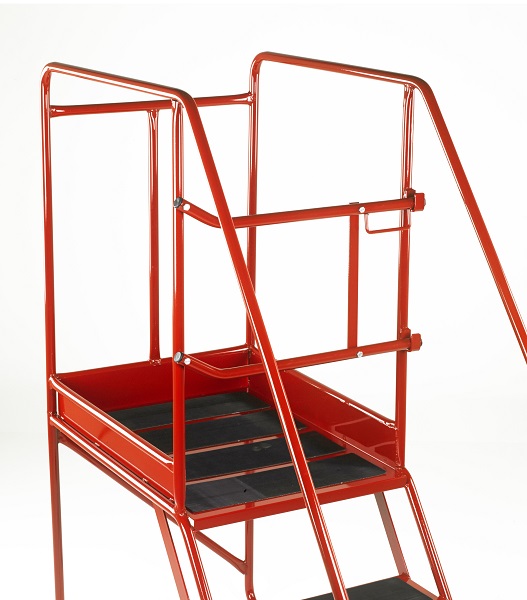

| Double Hinged Bar to front |
9496w |

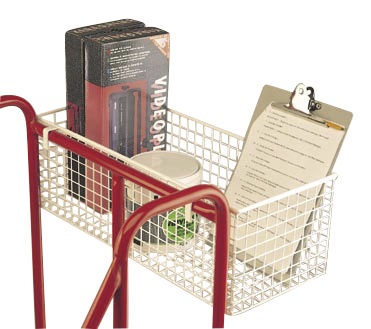

Hook-on Wire Tray 5kg swl, 600mm long x 250mm wide x 220mm deep |
9503w |
* 10 Tread and above will be supplied in 2 parts ready for easy assembly
** Goods with Factory fitted optional extras have no option for return
