Price on Application

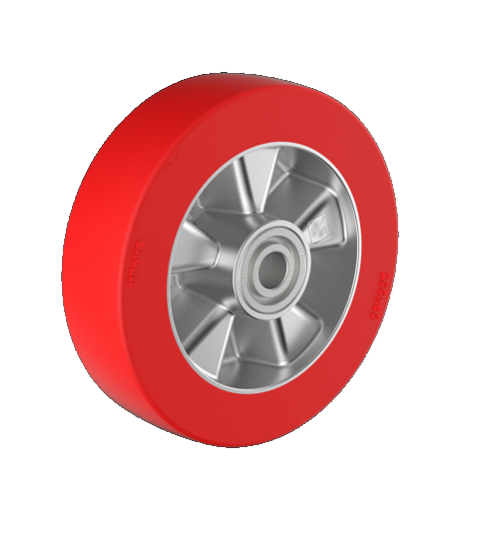

> Non marking smooth running Polyurethane wheels and castors 100mm dia with aluminium centres and red tyres
> Ideal for food processing, textile, chemicial industries, etc
> Hard wearing and cut resistant
> Double race precision ball bearings
.tg {border-collapse:collapse;border-spacing:0;}
.tg td{font-family:Arial, sans-serif;font-size:14px;padding:10px 5px;border-style:solid;border-width:1px;overflow:hidden;word-break:normal;}
.tg th{font-family:Arial, sans-serif;font-size:14px;font-weight:normal;padding:10px 5px;border-style:solid;border-width:1px;overflow:hidden;word-break:normal;}
.tg .tg-baqh{text-align:center;vertical-align:top}
.tg .tg-amwm{font-weight:bold;text-align:center;vertical-align:top}
| Wheel dia | Capacity | Hole Spacing |
Plate W x D |
Overall height |

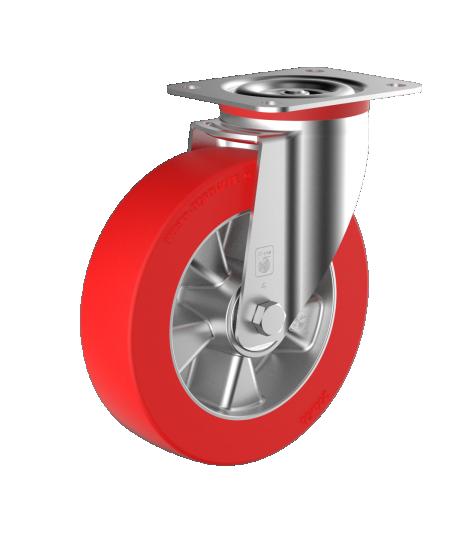

Swivel Castor Type |

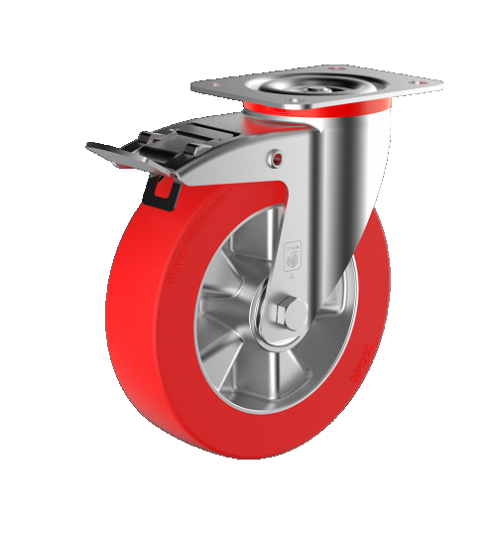

Swivel Braked Castor Type |

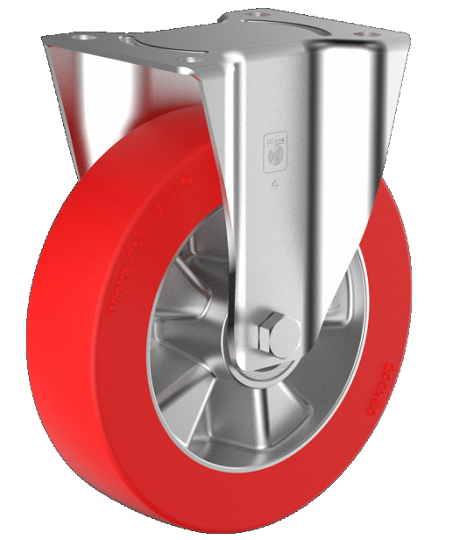

Fixed Castor Type |
Wheel Type |
|---|---|---|---|---|---|---|---|---|
| 125mm | 560kg | 105 x 80mm | 135 x 110mm | 170mm | 4408w | 4409w | 4410w | 4411w |
| 150mm | 660kg | 105 x 80mm | 135 x 110mm | 200mm | 4412w | 4413w | 4414w | 4415w |
| 200mm | 1000kg | 105 x 80mm | 135 x 110mm | 245mm | 4416w | 4417w | 4418w | 4419w |
| 250mm | 1100kg | 105 x 80mm | 135 x 110mm | 305mm | 4420w | 4421w | 4422w | 4423w |
