7938

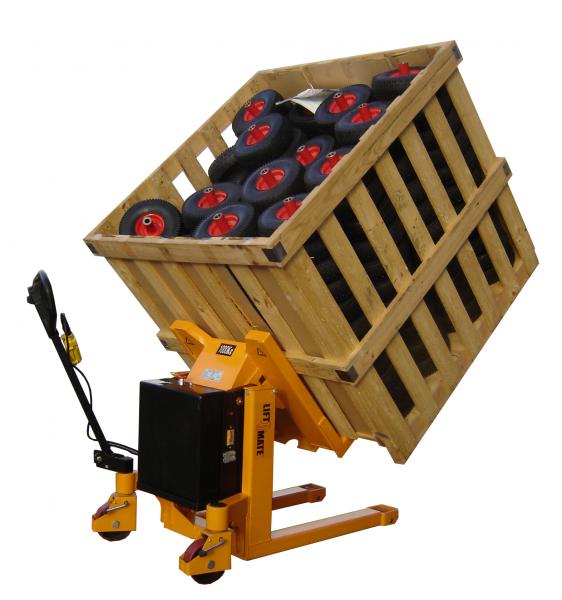

7938 with loaded pallet

Semi Electric Upward Tilting Pallet Tilter – 1000kg

£2,140.00

Product code:  7938w

SKU: 7938w Category:

Product Description



The manual push around  pallet tilter lifts, tilts and transports crates or boxes on pallets.

The pallet tilter is designed to give the user an ergonomically correct position to reach loads easily, without the need for bending down or stretching up

• Handle can be turned and locked in position away from the work area

• Applies to both standing and sitting positions

• Forks can be tilted up to 90 degrees

• Supplied with parking brake and foot protectors as standard

• Lifting and lowering functions are built into handle, tilting action is operated by remote control – this allows user to adjust tilt during filling or emptying crate or box

Capacity: 1000kg
Max. lift height: 285mm
Lowered fork height: 85mm

Angle of tilt: 90 °
Lift: electric
Tilt: electric

Wheels: Polyurethane

Please see PDF below for full specification

DOWNLOAD PDF

Specification

Model 7938w
Capacity 1000kg
h Max fork height (without tilt 285mm
h1 Min fork height 85mm
I Fork length 800mm
L1 Handle height 200mm
b Overall fork width 560mm
b1 Width between forks 234mm
L2 Fork tip length from roller 135mm
B Overall width 640mm
L Overall length 1410mm
H Max fork height (tilted) 950mm
Overall raised height (tilted) 1750mm
C1 Load centre 200mm to 400mm
C2 Load centre 200mm to 400mm
Power unit 0.8kw, 12v
Nett weight 185kg approx
