Description
• Ideal for warehouse access or maintenance work
• All welded tubular steel construction
• Mounted on two rear fixed rubber wheels and two front nylon swivel castors
• Non slip punched steel tread/platform
• Platform can be extended in 190mm increments
• 60° angle steps, backward descent design
• Colour: Blue only
• Hand operated lever mobilises/immobilises
• Handrail on both sides of steps 950mm high

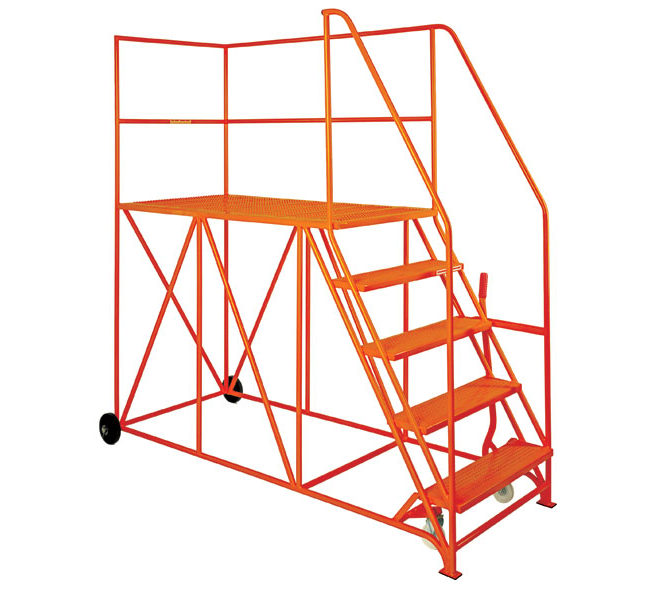

• Handrail at end and on one side of platform, 950mm high, please select left (as shown in above image) or right side opening
Please note: image shown is for illustration purposes only and product supplied may differ in appearance to image shown.
Specification
.tg {border-collapse:collapse;border-spacing:0;}
.tg td{font-family:Arial, sans-serif;font-size:14px;padding:10px 5px;border-style:solid;border-width:1px;overflow:hidden;word-break:normal;border-color:black;}
.tg th{font-family:Arial, sans-serif;font-size:14px;font-weight:normal;padding:10px 5px;border-style:solid;border-width:1px;overflow:hidden;word-break:normal;border-color:black;}
.tg .tg-1wig{font-weight:bold;text-align:left;vertical-align:top}
.tg .tg-baqh{text-align:center;vertical-align:top}
.tg .tg-amwm{font-weight:bold;text-align:center;vertical-align:top}
.tg .tg-0lax{text-align:left;vertical-align:top}
| SINGLED SIDED ACCESS PLATFORMS |
Platform Opening
|
| Number of Treads |
Platform Height |
Overall Dimensions H x W x L |
Platform Size W x L |
Tread Width |
SWL |
Left |
Right |
| 3 |
762mm |
1712 x 950 x 1940mm |
780 x 1560mm |
730mm |
300kg |
9412L |
9412R |
| 4 |
1016mm |
1966 x 950 x 2090mm |
780 x 1560mm |
730mm |
300kg |
9413L |
9413R |
| 5 |
1270mm |
2220 x 950 x 2250mm |
780 x 1560mm |
730mm |
300kg |
9414L |
9414R |
| 6 |
1524mm |
2474 x 950 x 2400mm |
780 x 1560mm |
730mm |
300kg |
9415L |
9415R |
| 7 |
1778mm |
2728 x 950 x 2550mm |
780 x 1560mm |
730mm |
300kg |
9416L |
9416R |
| 8 |
2032mm |
2985 x 991 x 2700mm |
780 x 1560mm |
730mm |
300kg |
9417L |
9417R |
| 9 |
2286mm |
3236 x 1016 x 2860mm |
780 x 1560mm |
730mm |
300kg |
9418L |
9418R |
| 10 |
2540mm |
3490 x 1092 x 3010mm |
780 x 1560mm |
730mm |
300kg |
9419L |
9419R |
| OPTIONAL EXTRAS |
| Description |
Type |
| Chain to Secure open side |
9420w |
| Additional 190mm Platform Length |
9421w |
