Description

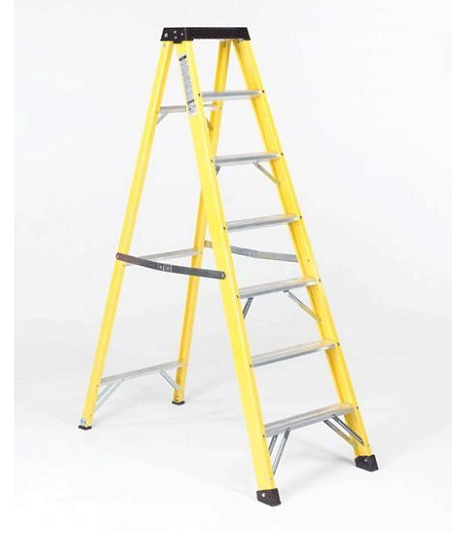

GRP Platform Steps are ideal for safe electrical installation and maintenance work.
The combination of super-strong C-section glass fibre stiles and reinforced alumnium treads and a checker plate platform gives you a step that’s electrically insulated to 35,000 volts.
- Large reinforced checker plate platform
- Deep serrated treads
- Excellent non sparking properties
- Ideal for indoor and outdoor use
- Moulded Tool Holder
- Large non-slip rubber feet
- EN131 5 Year Warranty
- 150kg /23.5 stone work load capacity
Specification
.tg {border-collapse:collapse;border-spacing:0;}
.tg td{font-family:Arial, sans-serif;font-size:14px;padding:10px 5px;border-style:solid;border-width:1px;overflow:hidden;word-break:normal;border-color:black;}
.tg th{font-family:Arial, sans-serif;font-size:14px;font-weight:normal;padding:10px 5px;border-style:solid;border-width:1px;overflow:hidden;word-break:normal;border-color:black;}
.tg .tg-baqh{text-align:center;vertical-align:top}
.tg .tg-amwm{font-weight:bold;text-align:center;vertical-align:top}
| No of Treads* |
Last
climbing
height |
Approx working
height** |
Open
height |
Closed
height |
Width |
Open
Depth |
Weight |
Type |
| 4 |
200mm |
1800mm |
1000mm |
1100mm |
400mm |
800mm |
6kg |
4204w |
| 5 |
500mm |
2100mm |
1200mm |
1300mm |
500mm |
900mm |
7kg |
9301w |
| 6 |
700mm |
2300mm |
1400mm |
1600mm |
500mm |
1100mm |
8kg |
4205w |
| 8 |
1200mm |
2800mm |
1900mm |
2100mm |
600mm |
1400mm |
10kg |
4206w |
| 10 |
1900mm |
3200mm |
2400mm |
2600mm |
600mm |
1700mm |
12kg |
9302w |
** Working height is calculated as 1,600mm plus the height of the platform or last climbing tread, whichever is appropriate.
*Tread count includes top cap tread.
