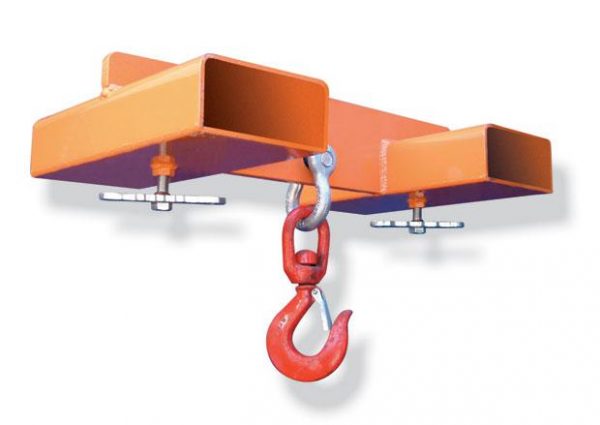

Adjustable Fork Mounted Crane Hooks

£453.00£596.00

Clear
SKU: N/A Category:

Description

> Economic method of converting Fork Lift into a mobile crane
> Capacities available: from 1000kg to 5000kg – please specify preference in options
> Adjustable along the length of the fork
> Safety swivel hook
> Secured to forks by thumb screws

Please see PDF below for full specification available, please specify preference in options when ordering

DOWNLOAD PDF

Specification

.tg {border-collapse:collapse;border-spacing:0;} .tg td{font-family:Arial, sans-serif;font-size:14px;padding:10px 5px;border-style:solid;border-width:1px;overflow:hidden;word-break:normal;} .tg th{font-family:Arial, sans-serif;font-size:14px;font-weight:normal;padding:10px 5px;border-style:solid;border-width:1px;overflow:hidden;word-break:normal;} .tg .tg-baqh{text-align:center;vertical-align:top} .tg .tg-9hbo{font-weight:bold;vertical-align:top} .tg .tg-amwm{font-weight:bold;text-align:center;vertical-align:top} .tg .tg-yw4l{vertical-align:top}
Capacity Max Fork Section Fork centres C of G Weight Ref
1000kg 150 x 60mm 355mm 125mm 16kg 1089w
1500kg 150 x 60mm 355mm 125mm 18kg 1090w
2000kg 150 x 60mm 355mm 125mm 20kg 1091w
2500kg 150 x 60mm 355mm 125mm 21kg 1092w
3000kg 150 x 60mm 355mm 125mm 24kg 1093w
4000kg 150 x 60mm 355mm 125mm 26kg 1094w
5000kg 150 x 60mm 355mm 125mm 29kg 1095w
