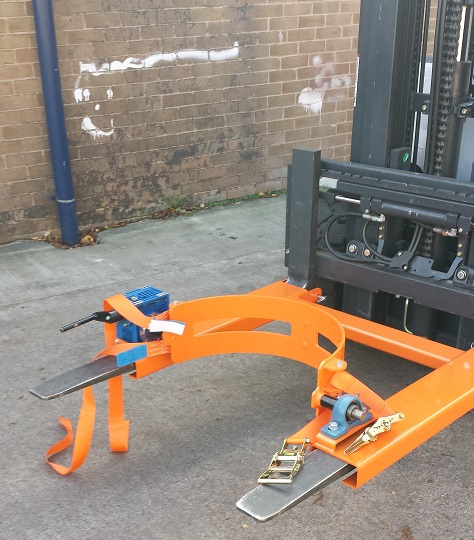

Description

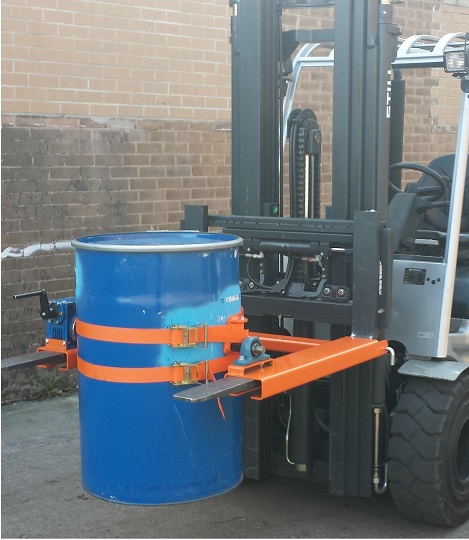

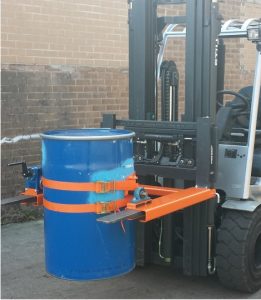

The Fork Mounted Drum Tilter allows the safe discharge from steel and plastic drums with minimal ease within any confined space, with the option of crank handle or looped chain for low or elevated level controlled discharge.
Standard Features
• Robust gearbox allowing drum to be locked and held at any angle
• Three point mechanical restraints to prevent drum slippage
• Twin 50mm wide webbing strap with ratchet restraint
• Maximum fork section 125 x 50mm at 801mm centres
• Zinc plated heel pins for safe attachment to truck
• Painted bright orange for safety
Optional Features
• Plastic drum adaptor
Specification
.tg {border-collapse:collapse;border-spacing:0;}
.tg td{font-family:Arial, sans-serif;font-size:14px;padding:10px 5px;border-style:solid;border-width:1px;overflow:hidden;word-break:normal;border-color:black;}
.tg th{font-family:Arial, sans-serif;font-size:14px;font-weight:normal;padding:10px 5px;border-style:solid;border-width:1px;overflow:hidden;word-break:normal;border-color:black;}
.tg .tg-1wig{font-weight:bold;text-align:left;vertical-align:top}
.tg .tg-uqo3{background-color:#efefef;text-align:center;vertical-align:top}
.tg .tg-baqh{text-align:center;vertical-align:top}
.tg .tg-amwm{font-weight:bold;text-align:center;vertical-align:top}
.tg .tg-0lax{text-align:left;vertical-align:top}
| Mounting Type
| Capacity
| Type of Control
| C of G
| Weight
| Model
|
| Fork |
360kg |

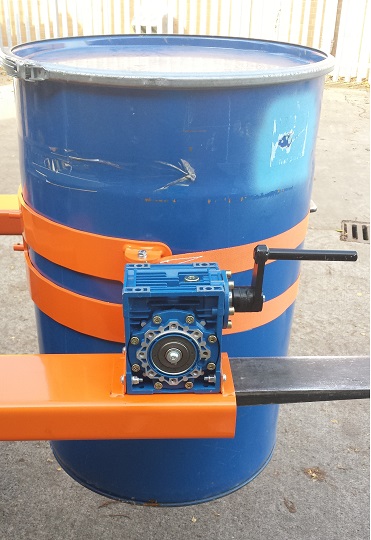

Crank Handle |
560mm |
70kg |
9404w |
| Fork |
360kg |
Looped Chain |
560mm |
95kg |
9405w |
| Optional Extra |
| Description |
Type |
| Adaptor Bracket for plastic drums |
9406w |
