Description

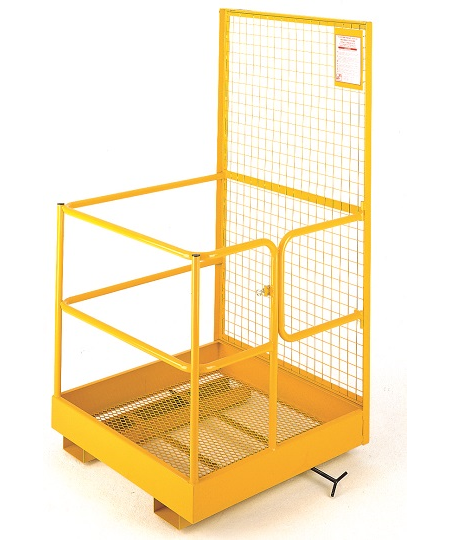

• 2 man Fork lift working platform provides safe working access for maintenance and stock checking purposes
• Fully welded with a raised expanded metal floor, located & welded into a formed kickboard surround.
• Tubular handrail.
• Rear RSA Frame with wire mesh panels.
• Hinged entry gate with spring return to closed position, a spring loaded retention bolt holds the gate in the closed position
• Platform is secured to the forks with threaded screw jacks
Optional factory fitted extras available:

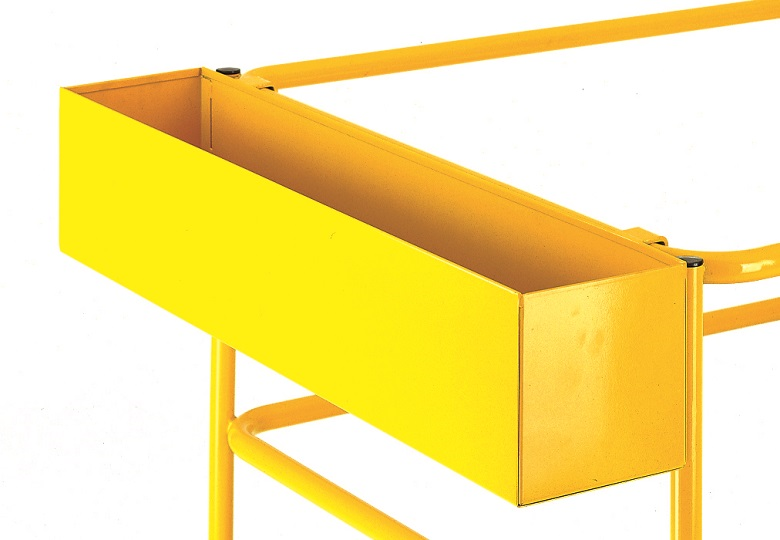

• Welded tool tray, Type 1148a, which hooks onto front guard rail. Complete with locking screws. L x W x D: 1000 x 200 x 200mm. Weight approx. 10kg

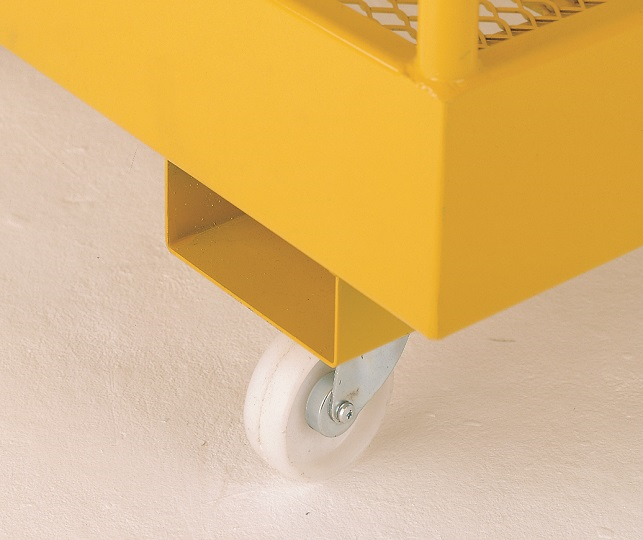

• Castors, Type 1148b, provide ease of movement and storage independent of forklift truck. Increases height by 125mm. 2 swivel, 2 fixsed, 100mm dia nylon wheels.
Important ordering requirements
Platform must be manufactured to your fork truck specification.
On all orders, please specify:
• Length of forks
• Width and depth (cross section) of forks
• Maximum standard distance between forks
Specification
.tg {border-collapse:collapse;border-spacing:0;}
.tg td{border-color:black;border-style:solid;border-width:1px;font-family:Arial, sans-serif;font-size:14px;
overflow:hidden;padding:10px 5px;word-break:normal;}
.tg th{border-color:black;border-style:solid;border-width:1px;font-family:Arial, sans-serif;font-size:14px;
font-weight:normal;overflow:hidden;padding:10px 5px;word-break:normal;}
.tg .tg-7fle{background-color:#efefef;font-weight:bold;text-align:center;vertical-align:top}
.tg .tg-baqh{text-align:center;vertical-align:top}
.tg .tg-4k42{background-color:#680100;color:#ffffff;font-weight:bold;text-align:center;vertical-align:top}
.tg .tg-b3sw{background-color:#efefef;font-weight:bold;text-align:left;vertical-align:top}
.tg .tg-0lax{text-align:left;vertical-align:top}
.tg .tg-amwm{font-weight:bold;text-align:center;vertical-align:top}
| Working Platform |
| Type |
1148w |
| Capacity |
350kg |
| Platform width x length |
1000 x 1000mm |
| Handrail height |
1010mm |
| Total height |
1925mm |
| Overall width (not including screw jacks) |
1020mm |
| Overall depth |
1020mm |
| Gate width |
510mm |
| Weight approx |
78kg |
| Optional Extras
|
| Description |
Type |
| Welding Tool Tray |
1148a |
| Castors |
1148b |
