Fork Mounted Drum Tilting Unit with Steel Band

Price on Application

Description

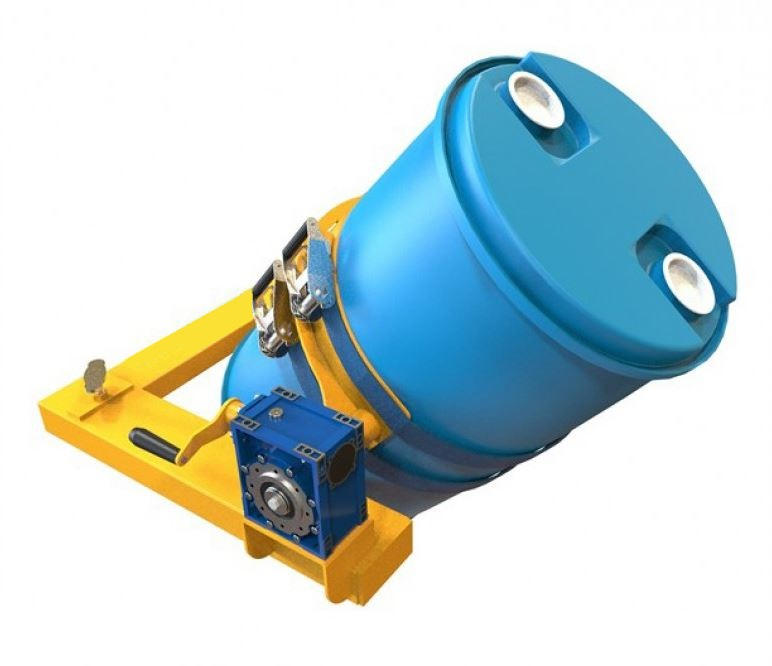

This drum rotator is designed to slide onto the forks of a fork truck to handle 210L steel drums.

The drum fixes positively into this forklift drum rotator using a steel over centre clamp.

This forklift drum turner is ideal for handling drums that have corrosive contents.

Drum rotation is carried out by means of a crank-handle (for below shoulder operation)

Fitted with a heavy duty gearbox for precise and controlled pouring

Specification

.tg {border-collapse:collapse;border-spacing:0;}
.tg td{font-family:Arial, sans-serif;font-size:14px;padding:10px 5px;border-style:solid;border-width:1px;overflow:hidden;word-break:normal;}
.tg th{font-family:Arial, sans-serif;font-size:14px;font-weight:normal;padding:10px 5px;border-style:solid;border-width:1px;overflow:hidden;word-break:normal;}
.tg .tg-s6z2{text-align:center}
.tg .tg-baqh{text-align:center;vertical-align:top}
.tg .tg-hgcj{font-weight:bold;text-align:center}
.tg .tg-amwm{font-weight:bold;text-align:center;vertical-align:top}

Load
Capacity
Drum Type Max Fork
size
Max Fork
Spread
C of G
(min)
Operation Type
360kg 210L steel 140 x 50mm 942mm 510mm Crank Handle 1414w
500kg 210L steel 140x 50mm 942mm 510mm Crank Handle 1415w
