HD Grey Rubber Wheels – Aluminium Centre

Price on Application

Category:

Description

> Smooth running heavy duty wheels with grey, non-marking elastic wheel on high quality die-cast aluminium rim
> Ideal for food processing, textile, chemicial industries, etc
> Hard wearing
> Very low rolling resistance
> Double race ball bearings

Specification

.tg {border-collapse:collapse;border-spacing:0;}
.tg td{font-family:Arial, sans-serif;font-size:14px;padding:10px 5px;border-style:solid;border-width:1px;overflow:hidden;word-break:normal;}
.tg th{font-family:Arial, sans-serif;font-size:14px;font-weight:normal;padding:10px 5px;border-style:solid;border-width:1px;overflow:hidden;word-break:normal;}
.tg .tg-s6z2{text-align:center}
.tg .tg-amwm{font-weight:bold;text-align:center;vertical-align:top}
.tg .tg-hgcj{font-weight:bold;text-align:center}

Wheel
dia		 Capacity Hole
Spacing		 Plate

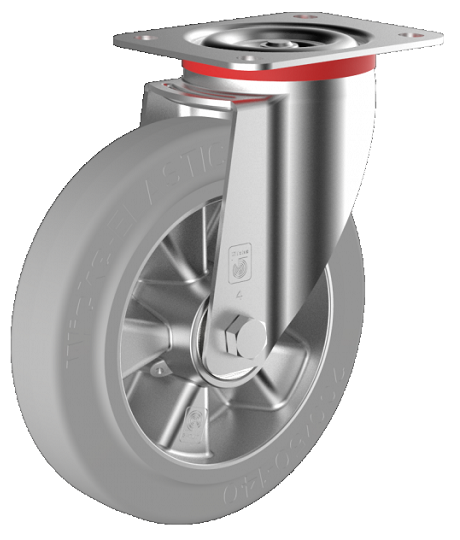

W x D		 Overall Height Swivel

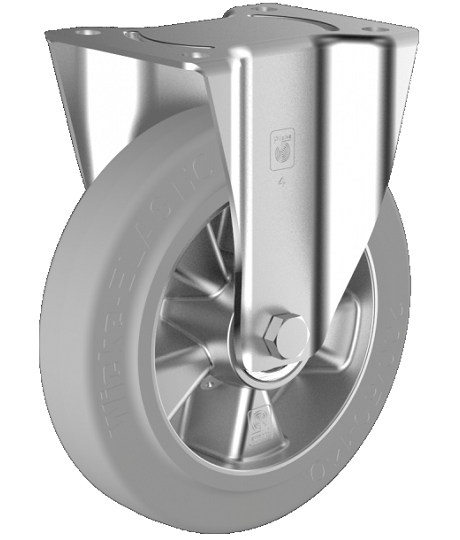

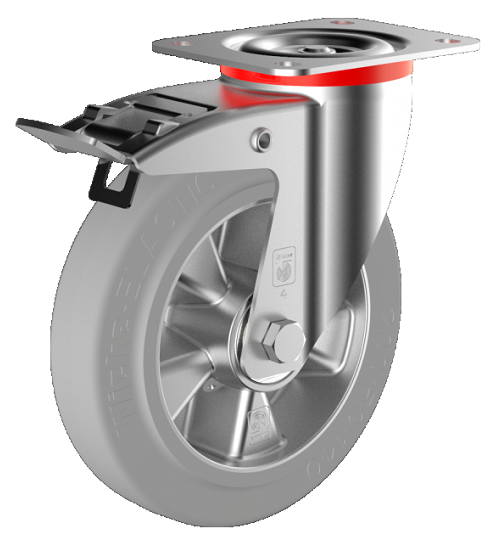

Castor 		Swivel Braked Castor Fixed

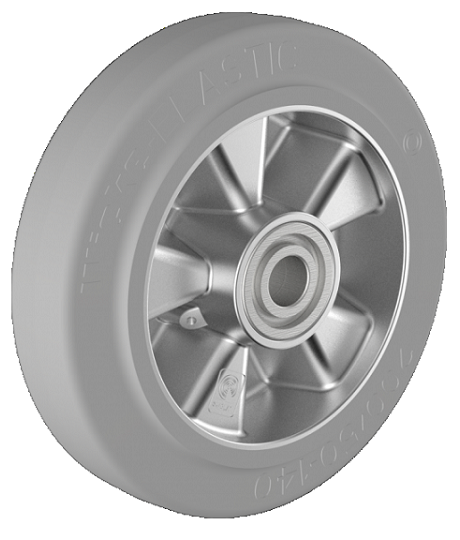

Castor		 Wheel

Type Type Type Type
100mm 180kg 105 x 80mm 135 x 110mm 128mm 4300w 4301w 4302w 4303w
100mm 180kg 80 x 60mm 105 x 80mm 128mm 4304w 4305w 4306w 4307w
125mm 200kg 105 x 80mm 135 x 110mm 155mm 4308w 4309w 4307w 4311w
125mm 200kg 80 x 60mm 105 x 80mm 155mm 4312w 4313w 4314w 4315w
160mm 300kg 105 x 80mm 135 x 110mm 190mm 4316w 4317w 4318w 4319w
200mm 300kg 105 x 80mm 135 x 110mm 235mm 4320w 4321w 4322w 4323w
