Description

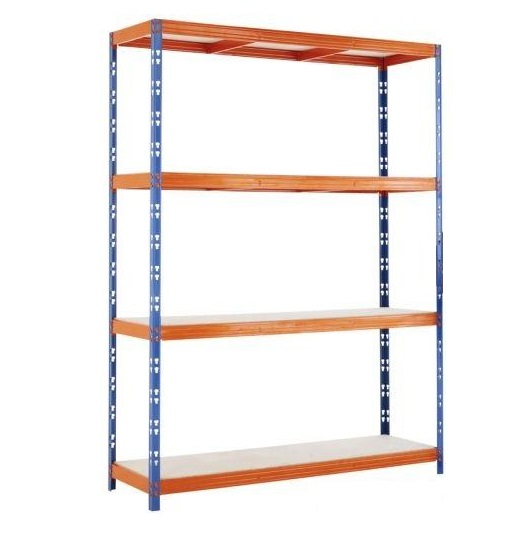

Blue & Orange 2440mm High Racking With Chipboard Shelves
• Load capacity per shelf: up to 800kg UDL*
• Tested to FEM industrial load and use standards
• ISO 9001 quality management certification
• Manufactured from profiled, premium-grade European steel
• 4x 15mm thick chipboard decks with steel central supports
• Shelves adjust on a 38mm pitch (1.5 inches)
• Simple and quick to build – just knock together with a rubber assembly mallet
• Modular, stud-and-keyhole build system allows shelves to be configured to products and multiple bay extensions
• Requires no cross-bracing so suitable for double-sided access
• Powder-coated Blue uprights and Orange beams
• Supplied with protective plastic feet
• Metal feet, tie plates and wall brackets are all available separately
* UDL= Uniformly Distributed Load. Please note that actual capacity varies according to shelf size.
Specification
.tg {border-collapse:collapse;border-spacing:0;}
.tg td{font-family:Arial, sans-serif;font-size:14px;padding:10px 5px;border-style:solid;border-width:1px;overflow:hidden;word-break:normal;}
.tg th{font-family:Arial, sans-serif;font-size:14px;font-weight:normal;padding:10px 5px;border-style:solid;border-width:1px;overflow:hidden;word-break:normal;}
.tg .tg-baqh{text-align:center;vertical-align:top}
.tg .tg-amwm{font-weight:bold;text-align:center;vertical-align:top}
.tg .tg-yw4l{vertical-align:top}
| Bay Overall H x W x D |
Shelf UDL* |
Bay – Type |
Extra Shelf – Type |
| 2440 x 1525 x 455mm |
800kg |
5554w |
5578w |
| 2440 x 1525 x 610mm |
800kg |
5555w |
5579w |
| 2440 x 1525 x 915mm |
800kg |
5556w |
5580w |
| 2440 x 1830 x 455mm |
610kg |
5557w |
5581w |
| 2440 x 1830 x 610mm |
610kg |
5558w |
5582w |
| 2440 x 1830 x 915mm |
610kg |
5559w |
5583w |
| 2440 x 2440 x 455mm |
500kg |
5560w |
5584w |
| 2440 x 2440 x 610mm |
610kg |
5561w |
5585w |
| 2440 x 2440 x 915mm |
500kg |
5562w |
5586w |
| 3050 x 1525 x 610mm |
800kg |
5565w |
5579w |
| 3050 x 1525 x 915mm |
800kg |
5566w |
5580w |
| 3050 x 1825 x 610mm |
610kg |
5568w |
5582w |
| 3050 x 1825 x 915mm |
610kg |
5569w |
5583w |
| 3050 x 2440 x 610mm |
500kg |
5571w |
5585w |
| 3050 x 2440 x 915mm |
500kg |
5572w |
5586w |
| Set of 4 Metal Feet |
– |
5563w |
– |

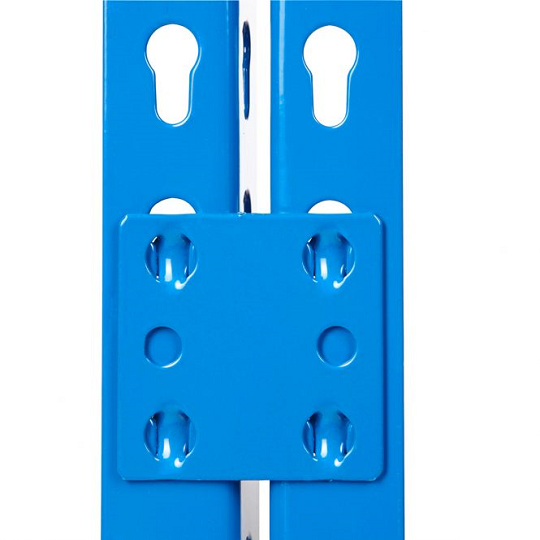

| Set of 4 Tie Plates |
– |
5577w |
– |

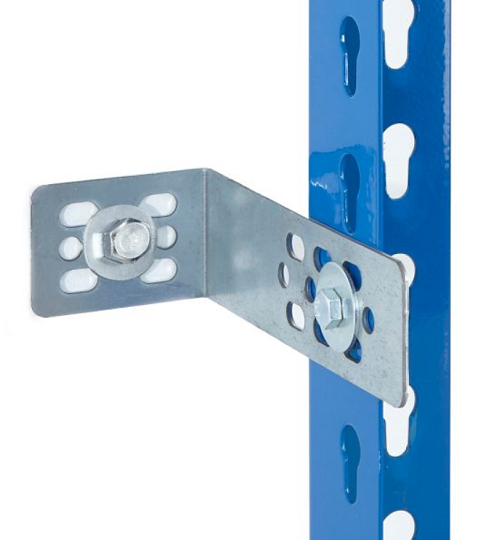

| Universal Wall Fixing 130mm |
– |
9055w |
– |
* UDL= Uniformly Distributed Load. Please note that actual capacity varies according to shelf size.
