Description
Heavy duty nylon castors wheels
Ideal for solid floors
Zinc plated steel housings
Swivel castors have a double bearing ball race
Heavy Duty Nylon Wheels & Castors
Price on Application
Specification
.tg {border-collapse:collapse;border-spacing:0;}
.tg td{font-family:Arial, sans-serif;font-size:14px;padding:10px 5px;border-style:solid;border-width:1px;overflow:hidden;word-break:normal;}
.tg th{font-family:Arial, sans-serif;font-size:14px;font-weight:normal;padding:10px 5px;border-style:solid;border-width:1px;overflow:hidden;word-break:normal;}
.tg .tg-baqh{text-align:center;vertical-align:top}
.tg .tg-amwm{font-weight:bold;text-align:center;vertical-align:top}
| WHEEL DIA |
CAPACITY | HOLE SPACING |
PLATE W X D |
OVERALL HEIGHT |

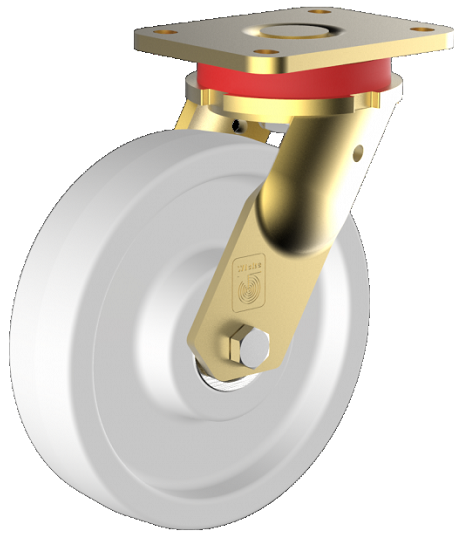

SWIVEL CASTOR |

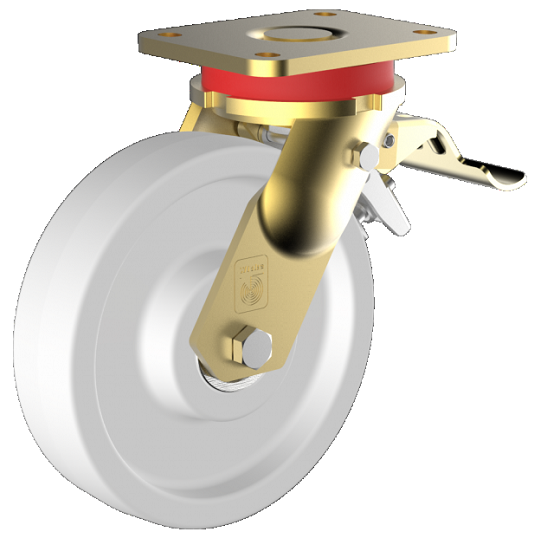

SWIVEL BRAKED CASTOR |

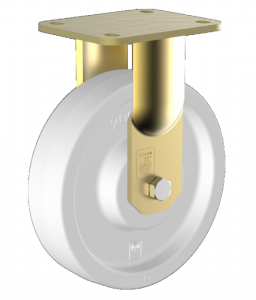

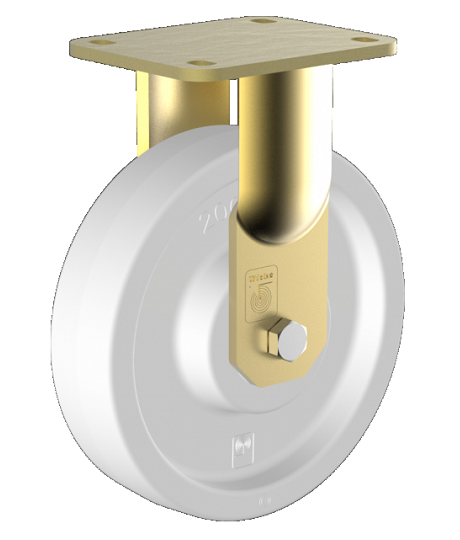

FIXED CASTOR |

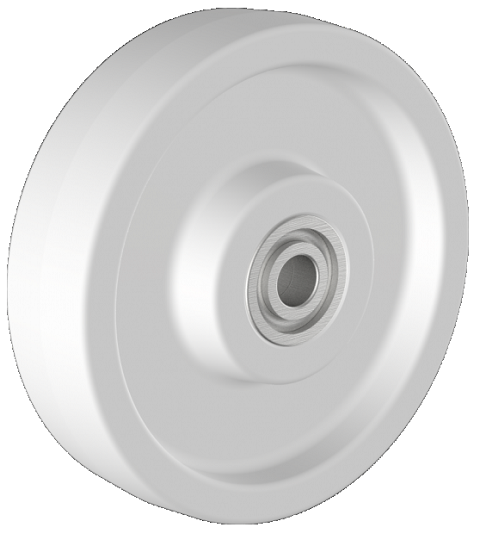

WHEEL |
|---|---|---|---|---|---|---|---|---|
| Type | Type | Type | Type | |||||
| 125mm | 600kg | 105 x 80mm | 135 x 110mm | 170mm | 4392w | 4393w | 4394w | 4395w |
| 150mm | 900kg | 105 x 80mm | 135 x 110mm | 200mm | 4396w | 4397w | 4398w | 4399w |
| 200mm | 1100kg | 105 x 80mm | 135 x 110mm | 245mm | 4400w | 4401w | 4402w | 4403w |
| 250mm | 1700kg | 105 x 80mm | 135 x 110mm | 305mm | 4404w | 4405w | 4406w | 4407w |
