Description

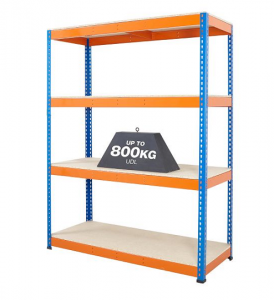

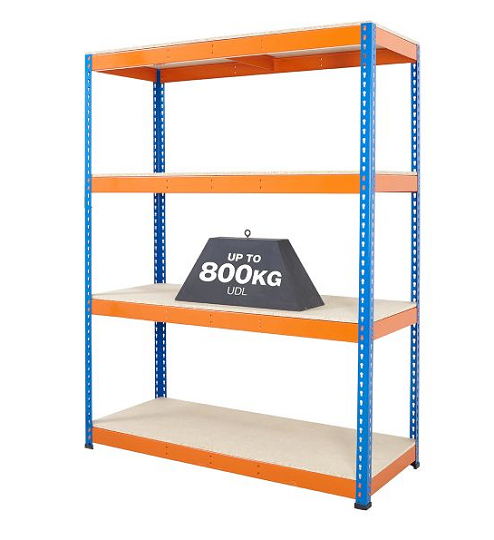

Blue & Orange 1980mm High Racking With Chipboard Shelves
- Load capacity per shelf: up to 800kg UDL*
- Tested to FEM industrial load and use standards
- ISO 9001 quality management certification
- Manufactured from profiled, premium-grade European steel
- 4 x 15mm thick chipboard decks with steel central supports
- Shelves adjust on a 38mm pitch (1.5 inches)
- Simple and quick to build – just knock together with a rubber assembly mallet
- Modular, stud-and-keyhole build system allows shelves to be configured to products and multiple bay extensions
- Requires no cross-bracing so suitable for double-sided access
- Powder coated in Blue and Orange
- Supplied with protective plastic feet
- Metal feet, tie plates and wall brackets are all available separately
* UDL= Uniformly Distributed Load. Please note that actual capacity varies according to shelf size.
Specification
.tg {border-collapse:collapse;border-spacing:0;}
.tg td{font-family:Arial, sans-serif;font-size:14px;padding:10px 5px;border-style:solid;border-width:1px;overflow:hidden;word-break:normal;}
.tg th{font-family:Arial, sans-serif;font-size:14px;font-weight:normal;padding:10px 5px;border-style:solid;border-width:1px;overflow:hidden;word-break:normal;}
.tg .tg-baqh{text-align:center;vertical-align:top}
.tg .tg-9hbo{font-weight:bold;vertical-align:top}
.tg .tg-amwm{font-weight:bold;text-align:center;vertical-align:top}
.tg .tg-yw4l{vertical-align:top}
| BAY OVERALL H X W X D |
UDL PER SHELF* |
BAY TYPE |
EXTRA SHELF TYPE |
| 1980 x 1525 x 455mm |
800kg |
5535w |
5578w |
| 1980 x 1525 x 610mm |
800kg |
5536w |
5579w |
| 1980 x 1525 x 915mm |
800kg |
5537w |
5580w |
| 1980 x 1825 x 455mm |
610kg |
5538w |
5581w |
| 1980 x 1825 x 610mm |
610kg |
5539w |
5582w |
| 1980 x 1825 x 915mm |
610kg |
5540w |
5583w |
| 1980 x 2440 x 455mm |
500kg |
5541w |
5584w |
| 1980 x 2440 x 610mm |
500kg |
5542w |
5585w |
| 1980 x 2440 x 915mm |
400kg |
5543w |
5586w |
| Set of 4 Metal Feet |
– |
5563w |
– |
| Set of 4 Tie Plates |
– |
5577w |
– |
| Universal Wall Fixing 130mm |
– |
9055w |
– |
* UDL= Uniformly Distributed Load. Please note that actual capacity varies according to shelf size.
