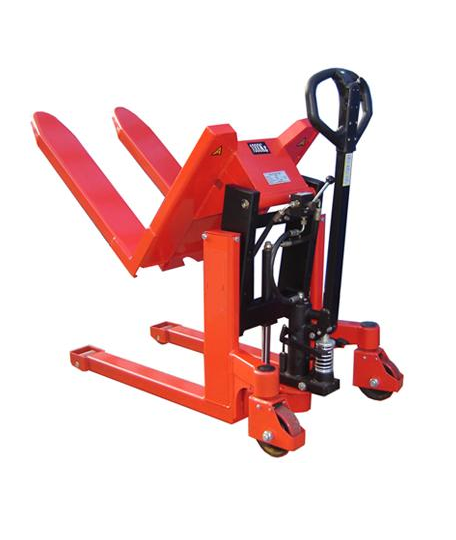

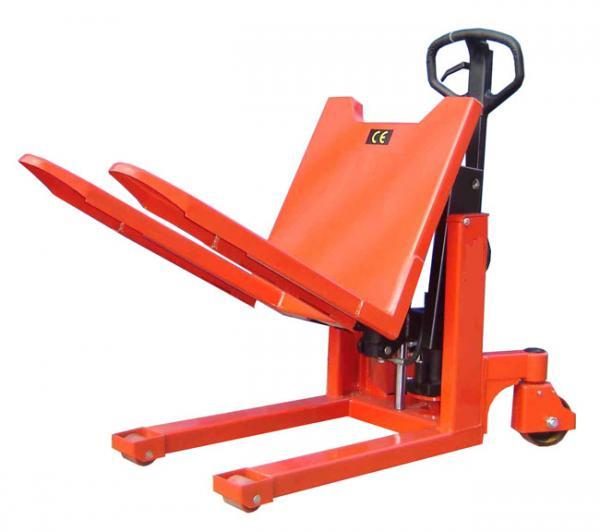

Manual Hydraulic Upward Tilting Pallet Tilter – 1000kg

£1,389.00

SKU: 7954w Category:

Description

Capacity: 1000kg
Angle of tilt: 90 °
Lift: manual
Tilt: manual



Wheels: Polyurethane

Manual pallet tilters assist in tilting a pallet, crate or stillage towards the operator and thus making it easy to reach inside.

The pallet tilters are especially useful where palletised good are loose small items that need to be picked out one by one.

Please see PDF below for full specification

DOWNLOAD PDF

Specification

.tg {border-collapse:collapse;border-spacing:0;} .tg td{font-family:Arial, sans-serif;font-size:14px;padding:10px 5px;border-style:solid;border-width:1px;overflow:hidden;word-break:normal;} .tg th{font-family:Arial, sans-serif;font-size:14px;font-weight:normal;padding:10px 5px;border-style:solid;border-width:1px;overflow:hidden;word-break:normal;} .tg .tg-baqh{text-align:center;vertical-align:top} .tg .tg-9hbo{font-weight:bold;vertical-align:top} .tg .tg-amwm{font-weight:bold;text-align:center;vertical-align:top} .tg .tg-yw4l{vertical-align:top}
Model 7954w
Capacity 1000kg
h Max fork height (without tilt) 285mm
h1 Min fork height (without tilt) 85mm
I Fork length 800mm
L1 Handle height 1138mm
b Overall fork width 560mm
b1 Width between forks 234mm
L2 Fork tip length from roller 135mm
B Overall width 640mm
L Overall length 1325mm
H Raised height forks (tilted) 950mm
Overall height (forks tilted) 1750mm
C1 Load centre 200mm to 400mm
C2 Load centre 200mm to 400mm
Nett weight 178kg approx
