Description
Stackers are fitted with ergonomic pump handles and foot pumps, giving a choice of operation. The machines are sturdy, compact and constructed from robust steel profiles. The lowering speed is fully adjustable.

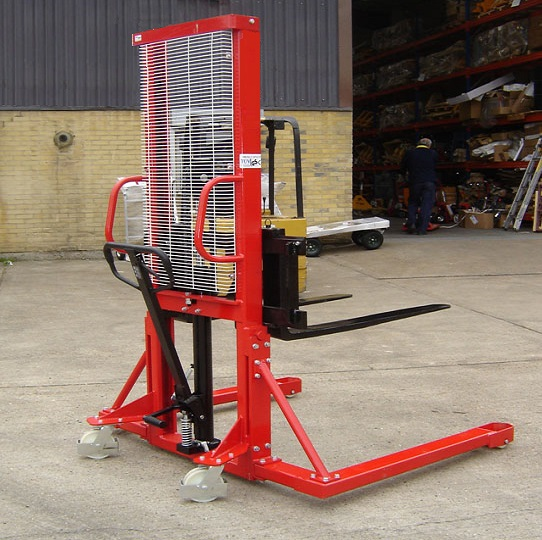

This straddle version allows for the handling of closed bottom pallets such as the UK standard blue pallets (also called GKN or CHEP pallets). In addition to this the stacker’s straddle legs provide excellent balance making pallet handling even safer.
This straddle stacker is fitted with forged forks with an adjustable width as standard.
Swivel castors are fitted with foot brakes.
The straddle stacker comes in two lift heights: 1600mm and 2500mm
Straddle gap: 1250mm
Capacity: 1000kg @ 600mm load centre
Specification
.tg {border-collapse:collapse;border-spacing:0;}
.tg td{border-color:black;border-style:solid;border-width:1px;font-family:Arial, sans-serif;font-size:14px;
overflow:hidden;padding:10px 5px;word-break:normal;}
.tg th{border-color:black;border-style:solid;border-width:1px;font-family:Arial, sans-serif;font-size:14px;
font-weight:normal;overflow:hidden;padding:10px 5px;word-break:normal;}
.tg .tg-1wig{font-weight:bold;text-align:left;vertical-align:top}
.tg .tg-baqh{text-align:center;vertical-align:top}
.tg .tg-amwm{font-weight:bold;text-align:center;vertical-align:top}
.tg .tg-0lax{text-align:left;vertical-align:top}
| Type

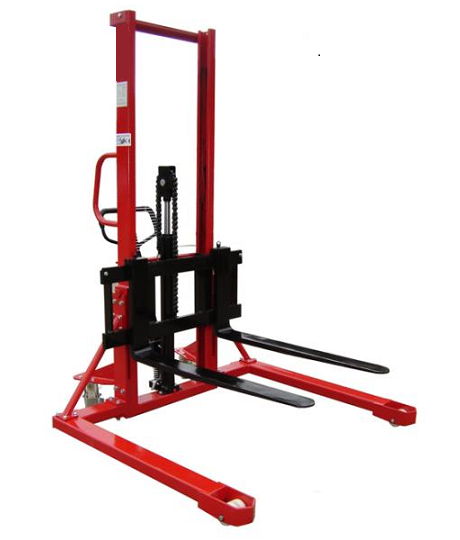

| 8740w

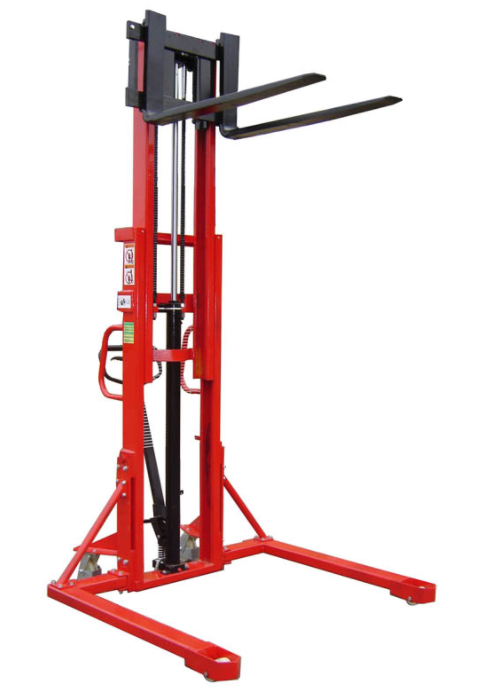

| 8741w
|
| Capacity |
1000kg |
| Load Centre |
600mm |
| Max. Lift Height |
1600mm |
2500mm |
| Fork Length |
1060mm |
| Width over Forks |
Adjustable 240 – 940mm |
Adjustable 240 – 700mm |
| Overall Length |
1540mm |
1600mm |
| Overall width |
1500mm |
1500mm |
| Overall Closed Height |
2050mm |
1840mm |
| Lowered Fork Height |
50mm |
| Wheels |
Nylon |
| Wheels Diameter |
ΓΈ 150 / 80mm |
| Approx. Weight |
336kg |
340kg |
