Non Extending Fork Mounted Jibs

£958.00£1,243.00

Please select preference from the following:

Clear
SKU: N/A Category:

Description

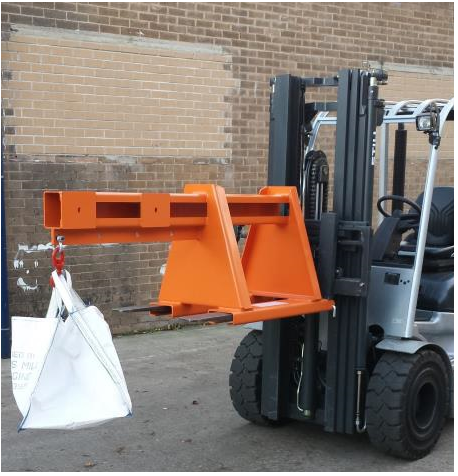

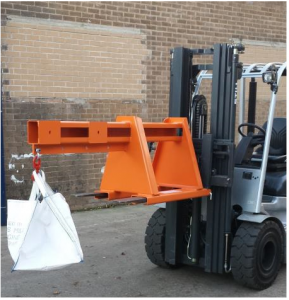

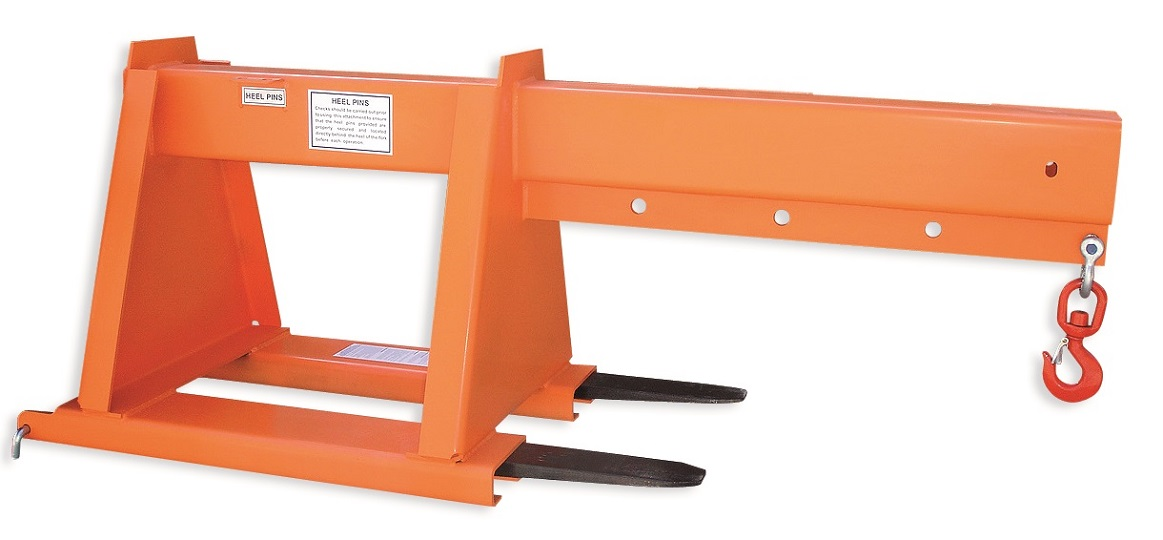

When height is not at a premium, but maximum lift capacity is critical, the Non Extending Fork Mounted Jib allows the movement of long and awkward loads from inaccessible locations with the potential of 4 different lifting centres.

Standard Features

  • Multi hook positioning from 1000 – 1750mm load centres
  • Supplied complete with single swivel hook and bow shackle
  • Maximum fork section 150 x 50mm at 435mm centres

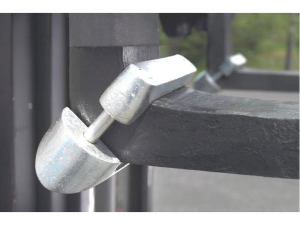

  • Zinc plated heel pins for safe attachment to truck
  • Painted bright orange for safety





Specification

.tg {border-collapse:collapse;border-spacing:0;} .tg td{font-family:Arial, sans-serif;font-size:14px;padding:10px 5px;border-style:solid;border-width:1px;overflow:hidden;word-break:normal;} .tg th{font-family:Arial, sans-serif;font-size:14px;font-weight:normal;padding:10px 5px;border-style:solid;border-width:1px;overflow:hidden;word-break:normal;} .tg .tg-baqh{text-align:center;vertical-align:top} .tg .tg-amwm{font-weight:bold;text-align:center;vertical-align:top}
Capacities at centres shown Weight Type
1000mm 1250mm 1500mm 1750mm
1000kg 800kg 600kg 300kg 141kg 1110w
1500kg 1000kg 800kg 400kg 146kg 1111w
2000kg 1500kg 1000kg 600kg 152kg 1112w
3000kg 2000kg 1500kg 1000kg 159kg 1113w
4000kg 3000kg 2500kg 2000kg 171kg 1114w
5000kg 4000kg 3300kg 2800kg 183kg 1115w
