Polypropylene Castors

Price on Application

Category:

Description

> Polypropylene wheels & castors 80mm dia
> Ideal for solid floors, for eg cement, stone tiles, resin, etc
> Swivel castors have a double ball race
> Plain bearing
> Zinc plated steel castor housing
> Footbrake options are available upon request



Specification

.tg {border-collapse:collapse;border-spacing:0;}
.tg td{font-family:Arial, sans-serif;font-size:14px;padding:10px 5px;border-style:solid;border-width:1px;overflow:hidden;word-break:normal;}
.tg th{font-family:Arial, sans-serif;font-size:14px;font-weight:normal;padding:10px 5px;border-style:solid;border-width:1px;overflow:hidden;word-break:normal;}
.tg .tg-7fle{font-weight:bold;background-color:#efefef;text-align:center;vertical-align:top}
.tg .tg-baqh{text-align:center;vertical-align:top}
.tg .tg-amwm{font-weight:bold;text-align:center;vertical-align:top}

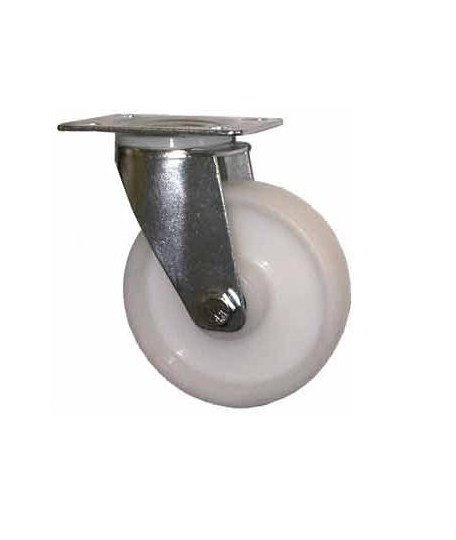

Wheel dia Capacity Hole Spacing Plate W x D Overall Height Swivel Castor
Type

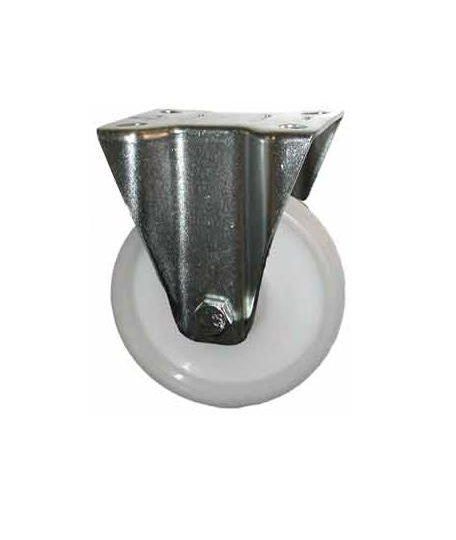

Fixed Castor
Type

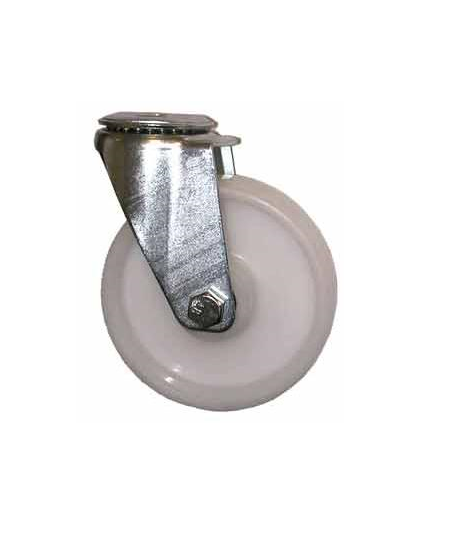

Bolt Hole Castor
Type

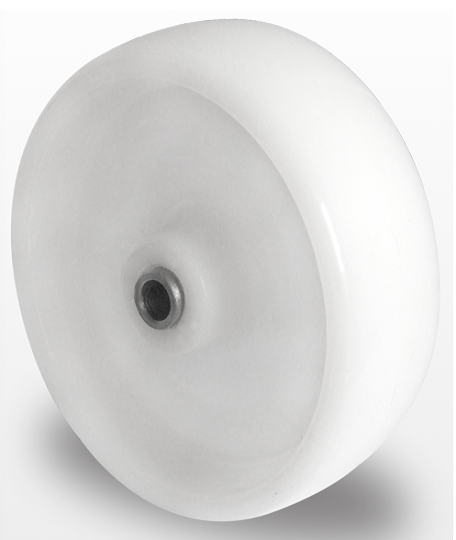

Wheel only
Type
80mm 80kg 80 x 60mm 104 x 80mm 105mm 3260w 3265w 3270w 3275w
100mm 125kg 80 x 60mm 102 x 84mm 128mm 3261w 3266w 3271w 3276w
125mm 160kg 80 x 60mm 102 x 84mm 155mm 3262w 3267w 3272w 3277w
150mm 200kg 105 x 80mm 135 x 110mm 190mm 3263w 3268w 3273w 3278w
200mm 250kg 105 x 80mm 135 x 110mm 235mm 3264w 3269w 3274w 3279w
