Description

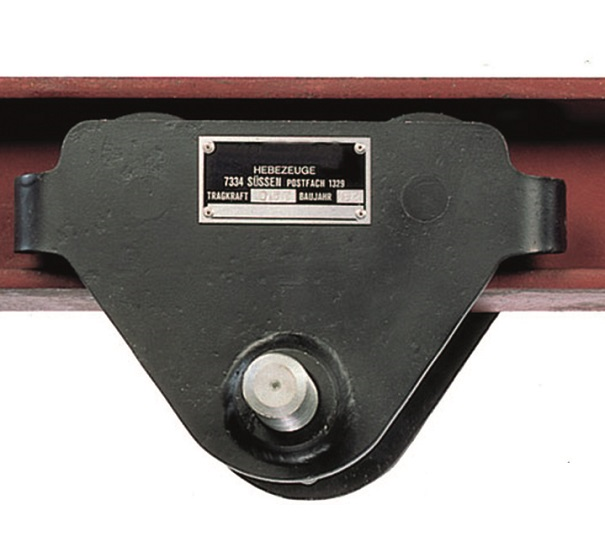

> Quick fitting, smooth running manual push operated travel trolleys
> Capacities available from 500kg to 5000kg – please see individual dimensions below.
> Adjustable for flange widths 50 to 220mm.
> Can be adjusted to fit most ‘I’ section beams
> Ideal for use with hand chain hoists
> Low height due to compact design
> Cast iron rollers and roller bearing wheels for smooth running
> Central load suspension, no side movement with tilt protection
> Tested to 25% overload – test certificate supplied
Specification
.tg {border-collapse:collapse;border-spacing:0;}
.tg td{font-family:Arial, sans-serif;font-size:14px;padding:10px 5px;border-style:solid;border-width:1px;overflow:hidden;word-break:normal;}
.tg th{font-family:Arial, sans-serif;font-size:14px;font-weight:normal;padding:10px 5px;border-style:solid;border-width:1px;overflow:hidden;word-break:normal;}
.tg .tg-baqh{text-align:center;vertical-align:top}
.tg .tg-amwm{font-weight:bold;text-align:center;vertical-align:top}
| Beam Section |
Push
Travel
Type |
| Capacity |
Flange Width |
| 500kg |
50-220mm |
1711w |
| 1000kg |
58-220mm |
1712w |
| 2000kg |
66-220mm |
1713w |
| 3000kg |
74-220mm |
1714w |
| 5000kg |
90-220mm |
1728w |
