Description
• Suitable for tilting or erecting of steel coils or straps.
• They have to be well banded and rest on scantlings.
• Low self-weight due to use of high-grade steel.
• Other capacities and sizes available on request.

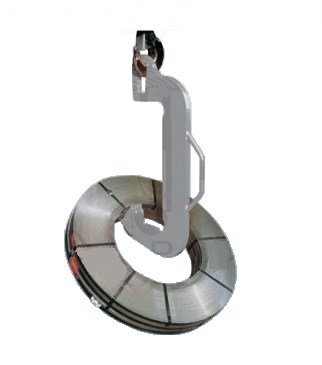

Tilting Coil Hooks
Price on application
Specification
.tg {border-collapse:collapse;border-spacing:0;} .tg td{font-family:Arial, sans-serif;font-size:14px;padding:10px 5px;border-style:solid;border-width:1px;overflow:hidden;word-break:normal;border-color:black;} .tg th{font-family:Arial, sans-serif;font-size:14px;font-weight:normal;padding:10px 5px;border-style:solid;border-width:1px;overflow:hidden;word-break:normal;border-color:black;} .tg .tg-v0hj{font-weight:bold;background-color:#efefef;border-color:inherit;text-align:center;vertical-align:top} .tg .tg-c3ow{border-color:inherit;text-align:center;vertical-align:top} .tg .tg-7btt{font-weight:bold;border-color:inherit;text-align:center;vertical-align:top}| Load capacity |
Dimensions | Weight per hook |
Type | |||||
|---|---|---|---|---|---|---|---|---|
| A | C | D | I | H | V | |||
| 500kg | 100 – 200mm | 8mm | 60mm | 400mm | 520mm | 100mm | 12kg | 9640w |
| 1000kg | 100 – 200mm | 10mm | 70mm | 450mm | 600mm | 120mm | 15kg | 9641w |
| 1000kg | 200 – 300mm | 10mm | 70mm | 500mm | 650mm | 120mm | 20kg | 9642w |
| 2500kg | 100 – 200mm | 12mm | 70mm | 500mm | 680mm | 150mm | 25kg | 9643w |
| 2500kg | 200 – 300mm | 12mm | 70mm | 500mm | 680mm | 150mm | 35kg | 9644w |
| 3000kg | 250 – 350mm | 15mm | 80mm | 550mm | 730mm | 150mm | 40kg | 9645w |
| 4000kg | 250 – 400mm | 20mm | 90mm | 600mm | 840mm | 190mm | 55kg | 9646w |
| 5000kg | 350 – 500mm | 25mm | 100mm | 650mm | 900mm | 190mm | 80kg | 9647w |
