Light Duty Platform Trucks – 200kg

From £287.00

Flatbed
Qty:-+
Sides
Qty:-+
Category:

Description

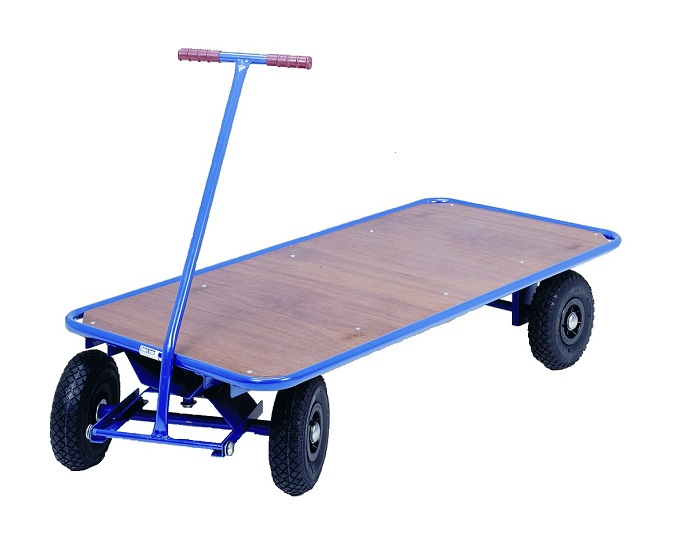

This lightweight flatbed turntable is ideally suited for moving loads in confined spaces or down narrow aisles.

The steering mechanism is a king pin and friction plate.

The frame is of tubular steel with a 12mm plywood bed.

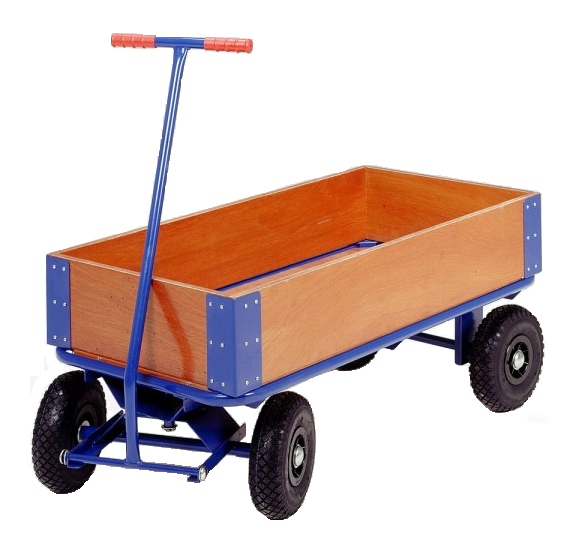

Available with 200mm drop-in wooden sides to enclose loose loads

Specification

.tg {border-collapse:collapse;border-spacing:0;} .tg td{font-family:Arial, sans-serif;font-size:14px;padding:10px 5px;border-style:solid;border-width:1px;overflow:hidden;word-break:normal;border-color:black;} .tg th{font-family:Arial, sans-serif;font-size:14px;font-weight:normal;padding:10px 5px;border-style:solid;border-width:1px;overflow:hidden;word-break:normal;border-color:black;} .tg .tg-7fle{font-weight:bold;background-color:#efefef;text-align:center;vertical-align:top} .tg .tg-baqh{text-align:center;vertical-align:top} .tg .tg-amwm{font-weight:bold;text-align:center;vertical-align:top}
Platform L x W x H Overall length Wheels Flatbed With Sides
Type Type
900 x 500 x 328mm 960mm Ø200mm nylon centre rubber tyre 3814w 3820w
900 x 500 x 398mm 960mm Ø260mm nylon centre pneumatic tyre 3815w 3821w
1200 x 600 x 328mm 1260mm Ø200mm nylon centre rubber tyre 3816w 3822w
1200 x 600 x 398mm 1260mm Ø260mm nylon centre pneumatic tyre 3817w 3823w
1500 x 700 x 328mm 1560mm Ø200mm nylon centre rubber tyre 3818w 3824w
1500 x 700 x 398mm 1560mm Ø260mm nylon centre pneumatic tyre 3819w 3825w
