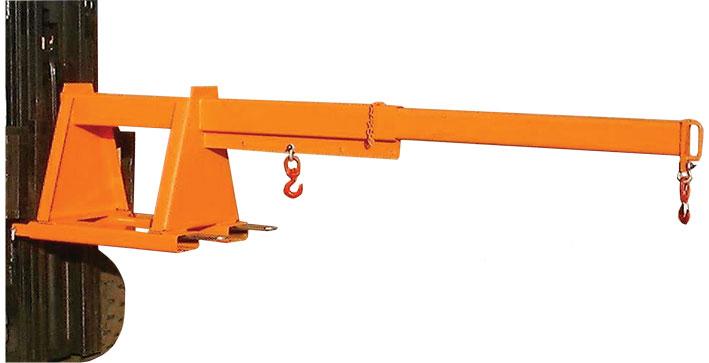

Extending Jibs
The Extending Fork Mounted Jib allows the movement of long and awkward loads from inaccessible locations with up to 9 different lifting positions and with the added benefit of two hooks and shackles so as to ‘cradle’ your load.
Standard Features
- Multi hook positioning from 1000-3000mm load centres
- Supplied complete with 2 No swivel hooks and bow shackles
- Maximum fork section 150 x 50mm at 435mm centres
- Zinc plated heel pins for safe attachment to truck
Painted bright orange for safety

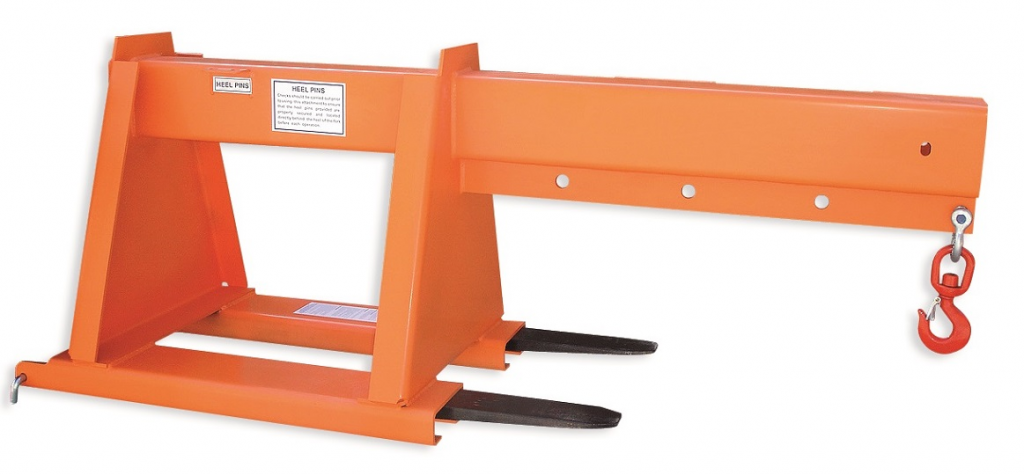

Non- Extending Jibs
When height is not at a premium, but maximum lift capacity is critical, the Non Extending Fork Mounted Jib allows the movement of long and awkward loads from inaccessible locations with the potential of 4 different lifting centres.

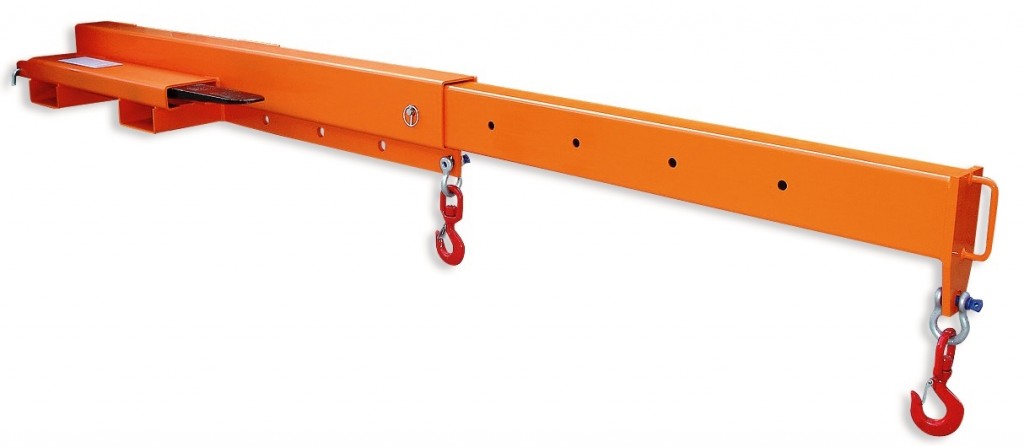

Low Profile Extending Jibs
The Low Profile Extending Jib allows the movement of long and awkward loads from inaccessible locations but with up to 10 different lifting positions and with the added benefit of two hooks and shackles so as to ‘cradle’ your load.
Standard Features
- Multi hook positioning from 500-3000mm load centres
- Supplied complete with 2 No Swivel hooks and bow shackles
- Four way pocket entry for ease of storage
- Maximum fork section 150 x 50mm at 281mm centres.
- Zinc plated heel pins for safe attachment to truck
- Painted bright orange for safety
Low Profile Non-Extending Jibs
When height is at a premium the Low Profile Jib allows the movement of long and awkward loads from inaccessible locations, with the potential of 5 different lifting centres.
Standard Features
- Multi hook positioning from 500-1750mm load centres
- Supplied complete with swivel hook and bow shackles
- Four way pocket entry for ease of storage
- Maximum fork section 150 x 50mm at 281mm centres.
- Zinc plated heel pins for safe attachment to truck
- Painted bright orange for safety

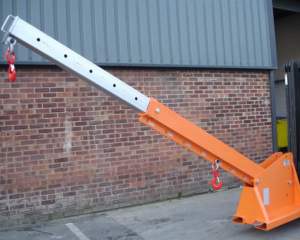

Height Adjustable Jibs
The Height Adjustable Extending Jib has all the characteristics of the standard incline fixed jib with the additional benefit of angular lifts.
This allows tall and awkward loads to be lifted by increasing the lift height of the forklift truck or tele handler.
Standard Features
- Multi hook positioning from 950-3850mm load centres.
- Adjustable angled lift at 0°, 15°, 30° and 45°.
- Supplied complete with 2 No swivel hooks.
- Maximum fork section 150x50mm at 350mm centres.
- Zinc plated heel pin for safe attachment to truck.
- Painted bright orange for safety.
