‘Automatic’ Low Level Skips

£203.00£1,464.00

£1,344.00
£1,464.00
£203.00
Category:

Description

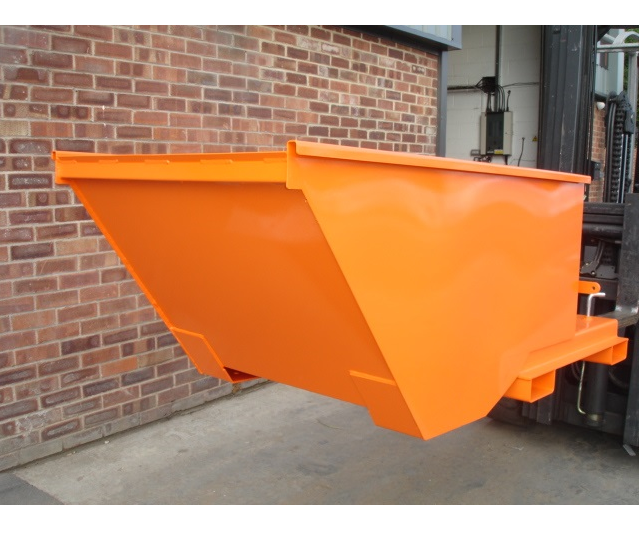

The low level skip is ideal for positioning under automatic punches, alongside lathes or cutting machines where blanks, swarf and natural waste is produced

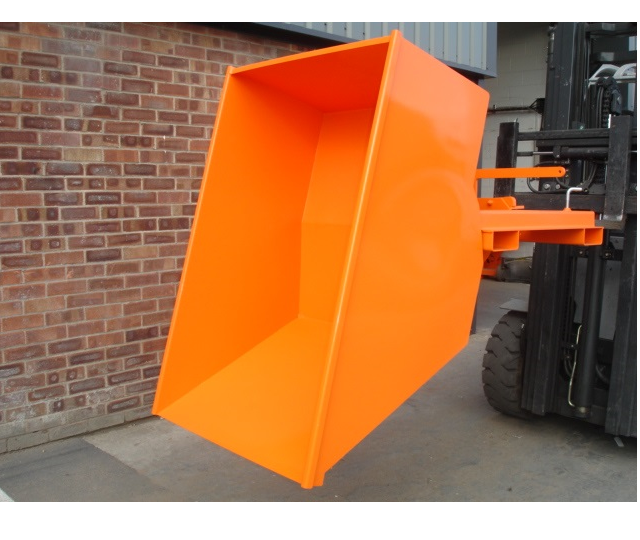

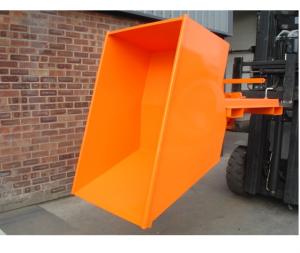

The Automatic Roll Forward Skip has been developed to eliminate the need for the Fork Lift operator to leave the cab when discharging the load. This has the benefit of reducing operating time and optimising safer working practices

Standard Features
• Low loading height
• Reinforced leading edge and body sides
• 4 way fork pocket entry

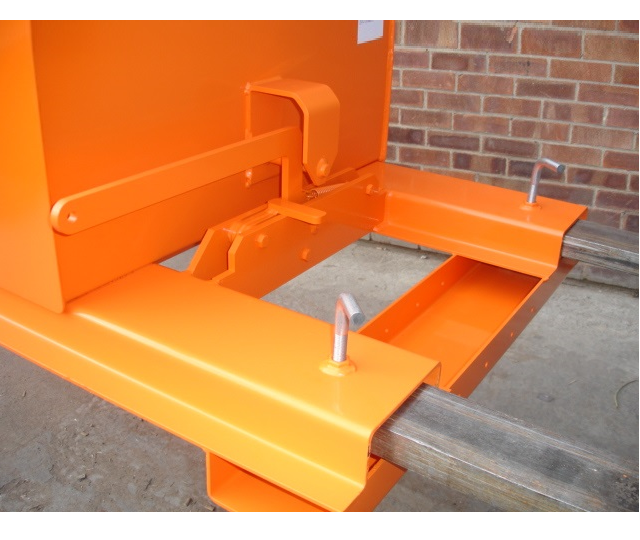

• Secondary Locking Mechanism to prevent accidental discharge
• Fully seam welded for retention of fluids
• Manual handle override
• Maximum fork section 150 x 60 mm at 683 mm centres
• Zinc plated twist screws for safe attachment to truck
• Painted bright orange for safety

Optional Features
• 125mm diameter nylon castors



Specification

Type Nominal Capacity Capacity Max fork section required Fork Centres Width Length Height Weight C of G LLC
1175w 0.70m3 300kg 150 x 60mm 683mm 910mm 1380mm 540mm* 215kg 630mm Fork length: 530mm
1176w 1.0m3 600kg 150 x 60mm 683mm 1300mm 1380mm 540mm* 245kg 650mm Fork length: 530mm
1177w 125mm dia nylon castors

* Add 160 mm to height to give overall skip height

Product code

1175w, 1176w, 1177w
