Description

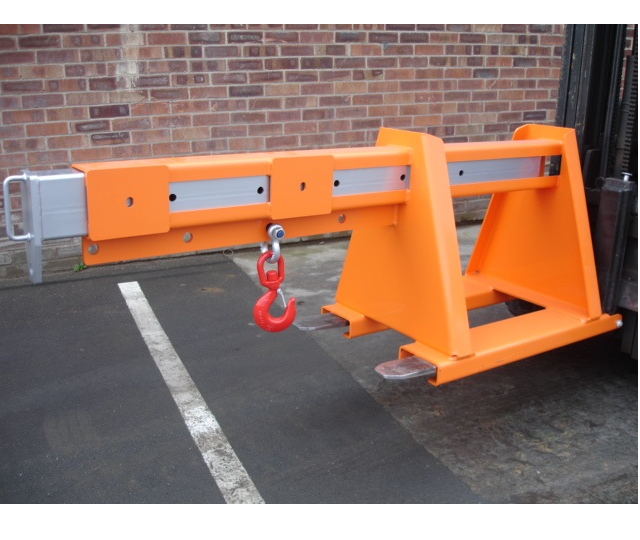

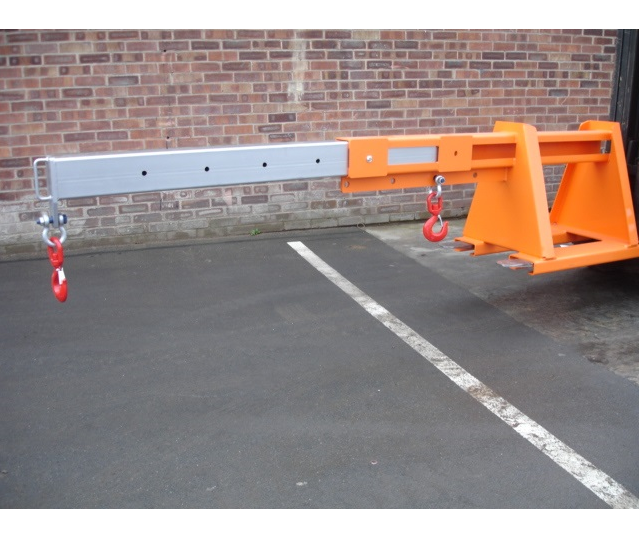

The Extending Fork Mounted Jib allows the movement of long and awkward loads from inaccessible locations with up to 9 different lifting positions and with the added benefit of two hooks and shackles so as to ‘cradle’ your load.
Standard Features
• Multi hook positioning from 1000-3000mm load centres
• Supplied complete with 2 No swivel hooks and bow shackles
• Maximum fork section 150 x 50mm at 435mm centres
• Zinc plated heel pins for safe attachment to truck
• Painted bright orange for safety
Specification
.tg {border-collapse:collapse;border-spacing:0;}
.tg td{font-family:Arial, sans-serif;font-size:14px;padding:10px 5px;border-style:solid;border-width:1px;overflow:hidden;word-break:normal;}
.tg th{font-family:Arial, sans-serif;font-size:14px;font-weight:normal;padding:10px 5px;border-style:solid;border-width:1px;overflow:hidden;word-break:normal;}
.tg .tg-baqh{text-align:center;vertical-align:top}
.tg .tg-amwm{font-weight:bold;text-align:center;vertical-align:bottom}
.tg .tg-9hbo{font-weight:bold;text-align:center;vertical-align:bottom}
| Capacities at centres shown |
Weight |
Type |
| 1000mm |
1250mm |
1500mm |
1750mm |
2000mm |
2250mm |
2500mm |
2750mm |
3000mm |
| 1000kg |
900kg |
800kg |
700kg |
600kg |
500kg |
400kg |
300kg |
200kg |
175kg |
1116w |
| 1500kg |
1250kg |
1100kg |
1000kg |
800kg |
700kg |
600kg |
500kg |
400kg |
175kg |
1117w |
| 2000kg |
1500kg |
1350kg |
1350kg |
1000kg |
800kg |
700kg |
600kg |
400kg |
175kg |
1118w |
| 3000kg |
2000kg |
1750kg |
1750kg |
1250kg |
1000kg |
900kg |
800kg |
700kg |
176kg |
1119w |
| 4000kg |
3000kg |
2750kg |
2750kg |
2000kg |
1500kg |
1250kg |
1000kg |
850kg |
175kg |
1120w |
