Description

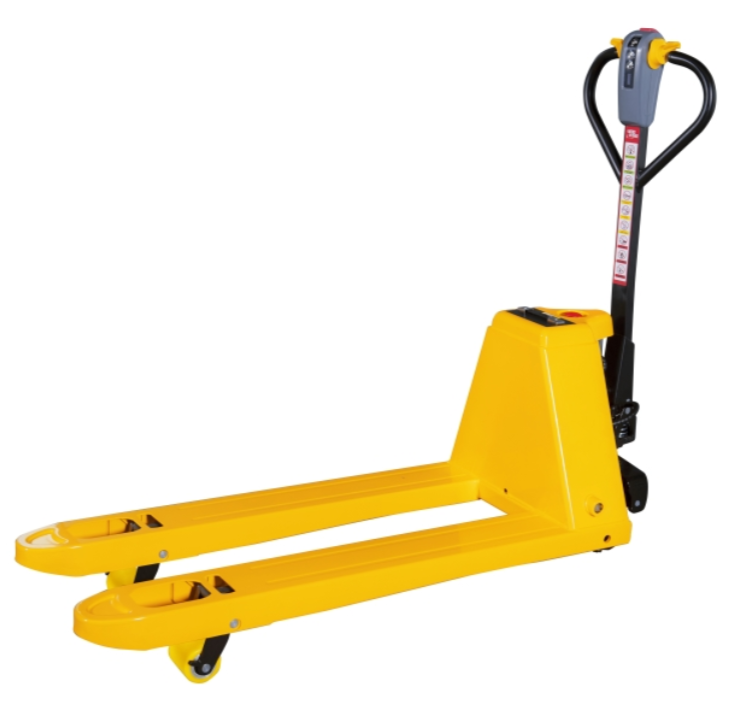

The truck features a very reliable 0.75kw brushless maintenance free driving motor, coupled together with a highly efficient lithium battery giving maximum running time between charges.
To allow the unit to be constantly operated, you also have the option of purchasing extra batteries which are easily interchangeable (within seconds). These allow the truck to be used on a fully charged battery, whilst the spent battery is being charged with the supplied external battery charger.
Rated at 1500kg capacity and a slope/climbing gradability of 4% laden, 10% unladen—this is a powerful machine with average life 3 times greater than a manual pallet truck. Despite this, it’s a compact unit, only 32mm longer than a standard pallet truck.
Features a multi-function handle for forward/reverse, lifting and lowering which also has an LCD display, horn and emergency stop button.
Please note: these machines are not IP rated against direct contact with water. They are designed to be used in a warehouse environment and should not be stored or operated in damp or wet conditions, as this will void the warranty.
Specification
.tg {border-collapse:collapse;border-spacing:0;}
.tg td{border-color:black;border-style:solid;border-width:1px;font-family:Arial, sans-serif;font-size:14px;
overflow:hidden;padding:10px 5px;word-break:normal;}
.tg th{border-color:black;border-style:solid;border-width:1px;font-family:Arial, sans-serif;font-size:14px;
font-weight:normal;overflow:hidden;padding:10px 5px;word-break:normal;}
.tg .tg-1wig{font-weight:bold;text-align:left;vertical-align:top}
.tg .tg-baqh{text-align:center;vertical-align:top}
.tg .tg-amwm{font-weight:bold;text-align:center;vertical-align:top}
.tg .tg-0lax{text-align:left;vertical-align:top}
| Type
| 9790w
| 9791w
|
| Capacity |
1500kg |
1500kg |
| Load centre |
600mm |
600mm |
| Fork L x W |
1150mm x 550mm |
1220mm x 685mm |
| Fork section W x D |
160mm x 58mm |
160mm x 58mm |
| Lowered fork height |
82mm |
82mm |
| Raised fork height |
197mm |
197mm |
| Overall L x W |
1552mm x 550mm |
1622mm x 685mm |
| Overall height with tiller |
1276mm |
1276mm |
| Overall height without tiller |
520mm |
520mm |
| Minimum radius |
1353mm |
1353mm |
| Minimum aisle width required (800 x 1200mm) |
1887mm |
1887mm |
| Minimum aisle width required (1000 x 1200mm) |
1918mm |
1918mm |
| Maximum travelling speed – laden / unladen |
3.5kmh / 4kmh |
3.5kmh / 4kmh |
| Maximum lifting speed – laden / unladen |
19kmh / 19kmh |
19kmh / 19kmh |
| Gradeability – laden / unladen |
4% / 10% |
4% / 10% |
| Drive (steer) wheel – Polyurethane |
130 x 55mm |
130 x 55mm |
| Loading wheel – polyurethane |
80 x 70mm |
80 x 70mm |
| Travel motor |
DC 0.45kw |
DC 0.45kw |
| Lifting motor |
DC 0.5kw |
DC 0.5kw |
| Battery |
48v |
24v |
| Charger |
10ah lithium |
20ah lithium |
