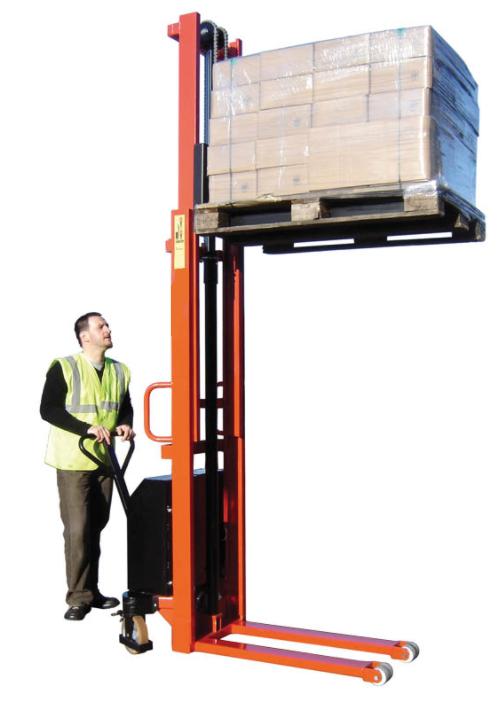

Heavy Duty Semi Electric Lift Pallet Stackers – 1000kg



Price on application

Category:

Description

Battery powered lift, manual traction

• Robust construction
• 1000kg capacity
• Fork length: 1150mm
• Width over forks: 545mm
• Lowered fork height: 85mm
• Straddle legs & adjustable forks are available at extra cost

Specification

.tg {border-collapse:collapse;border-spacing:0;} .tg td{border-color:black;border-style:solid;border-width:1px;font-family:Arial, sans-serif;font-size:14px; overflow:hidden;padding:10px 5px;word-break:normal;} .tg th{border-color:black;border-style:solid;border-width:1px;font-family:Arial, sans-serif;font-size:14px; font-weight:normal;overflow:hidden;padding:10px 5px;word-break:normal;} .tg .tg-1wig{font-weight:bold;text-align:left;vertical-align:top} .tg .tg-7fle{background-color:#efefef;font-weight:bold;text-align:center;vertical-align:top} .tg .tg-baqh{text-align:center;vertical-align:top} .tg .tg-amwm{font-weight:bold;text-align:center;vertical-align:top} .tg .tg-0lax{text-align:left;vertical-align:top} .tg .tg-4k42{background-color:#680100;color:#ffffff;font-weight:bold;text-align:center;vertical-align:top} .tg .tg-b3sw{background-color:#efefef;font-weight:bold;text-align:left;vertical-align:top}
STACKERS
Type 9739w 9740w 9741w 9742w 9743w 9744w 9745w
Capacity 1000kg
Load Centre 600mm
Max. Lift Height 1120mm 1600mm 2000mm 2500mm 3000mm 3500mm 3700mm
Lowered Fork Height 85mm
Fork Length 1150mm
Width over Forks 545mm
Overall Length 1785mm
Overall width 665mm 665mm 775mm 775mm 775mm 775mm 775mm
Overall Closed Height 1585mm 1970mm 1470mm 1720mm 1970mm 2220mm 2320mm
Wheels ø 200 Polyurethane / ø 80mm Nylon
Approx. Weight 285kg 310kg 390kg 420kg 450kg 480kg 500kg
OPTIONAL EXTRAS
Description Type
Wide straddle 1060mm inside, 1310mm outside 9746w
Wide straddle 1260mm inside, 1510mm outside 9747w
Forged forks, 1200mm long x 120mm wide x 50mm deep, fork adjustment 260-820mm overall 9748w
