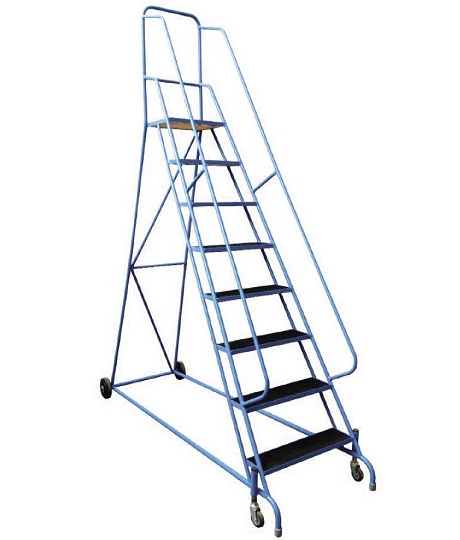

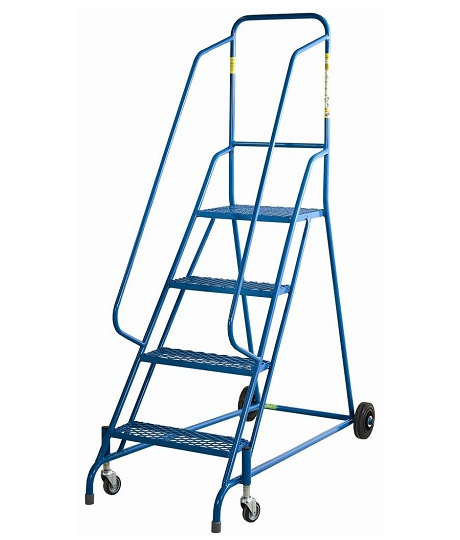

Heavy Duty Spring Steps

From £314.00

Please choose from Expanded Steel or Ribbed Rubber Treads

Expanded Steel Treads
Qty:-+
Ribbed Rubber Treads
Qty:-+

Description

Manufactured & Approved to the recognised European GS Standard.

Certified to EN 131.

Capacity: rated 150kg

Tread Depth: 145mm
Platform Size: 400mm wide x 300mm deep

Available with a choice of either non-slip ribbed rubber or expanded steel mesh treads.

Powder coated finish.

Mobile on 150mm Rubber tyred rear wheels and spring loaded swivel castors.

Supplied fully assembled



PLEASE CHECK OVERALL HEIGHT BEFORE ORDERING

Specification

No of treads Platform
Height
Overall H x W x D Expanded Steel Treads
Type
Ribbed Rubber Treads
Type
2 500mm 1210 x 540 x 820mm 8105w 8112w
3 750mm 1460 x 570 x 1032mm 8106w 8113w
4 1000mm 1710 x 600 x 1244mm 8107w 8114w
5 1250mm 1960 x 630 x 1456mm 8108w 8115w
6 1500mm 2210 x 660 x 1668mm 8109w 8116w
7 1750mm 2460 x 690 x 1880mm 8110w 8117w
8 2000mm 2710 x 720 x 2029mm 8111w 8118w

Product Code

8105w, 8106w, 8107w, 8108w, 8109w, 8110w, 8111w, 8112w, 8113w, 8114w, 8115w, 8116w, 8117w, 8118w
