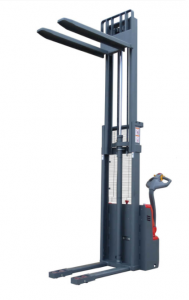

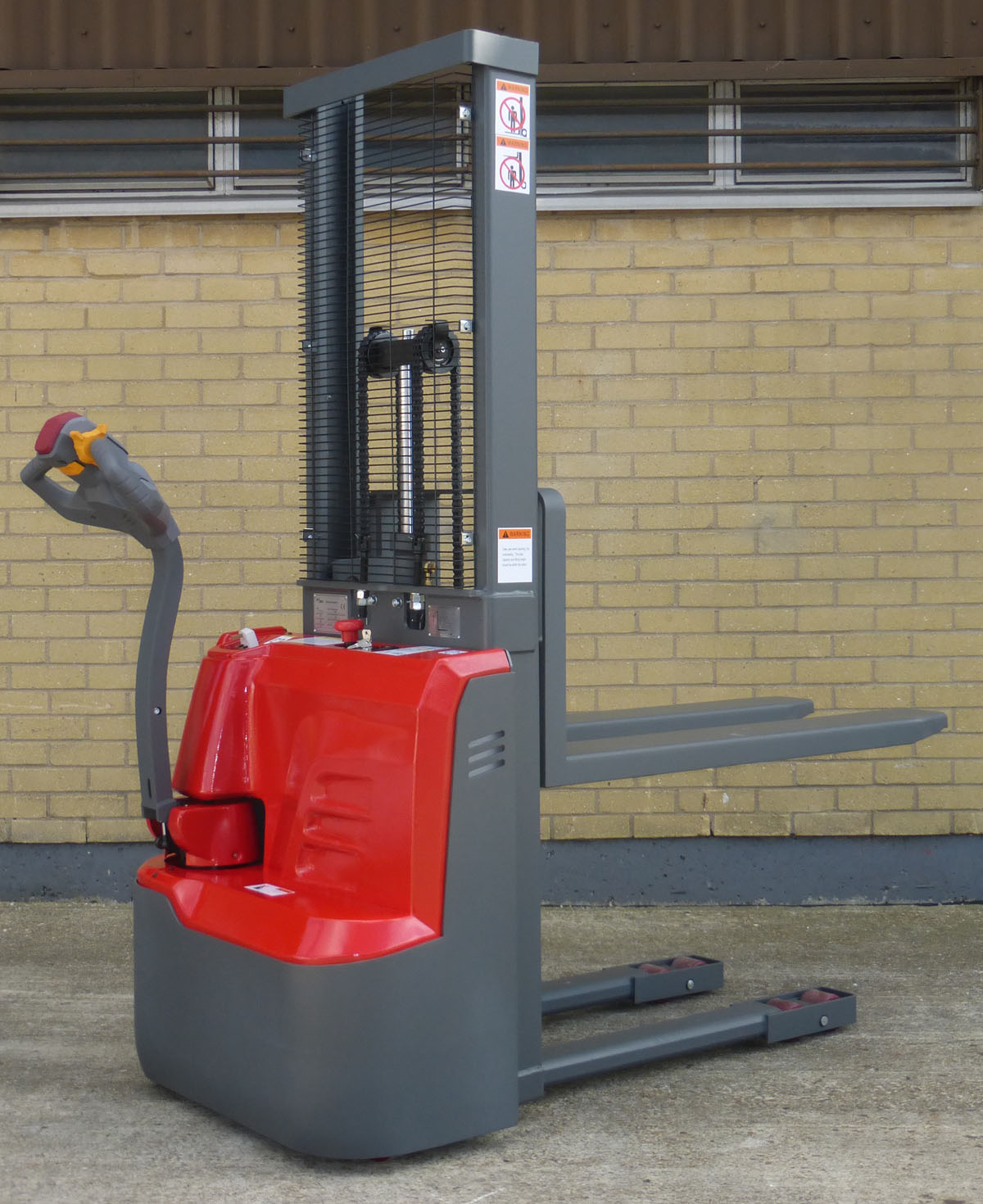

Lightweight Fully Powered Pallet Stackers – 1000kg



Price on application

Category:

Description

Both drive and lift movement are operated by controls on an ergonomically designed handle.

Fitted with 2 powerful 120Ah batteries and on-board charger, these provide approximately 3 hours of operational charge

• Battery powered lift and drive
• Light and versatile; compact and reliable
• Suitable for small factories and warehouses
• Wrapover forks
• Fixed straddle
• On board charger
• Turning radius: 1400mm
• Chargeable from standard 230V/13A 3-pin socket
• CE certified

Specification

Type 9749w 9750w
Capacity 1000kg 1000kg
Load Centre 600mm 600mm
Max Lift Height of forks 1600mm 3000mm
Min Fork Height 85mm 85mm
Fork Length 1150mm 1150mm
Fixed Width over Forks 560mm 560mm
Overall Length 1740mm 1780mm
Overall Width 820mm 820mm
Overall Closed Height 1985mm 1985mm
Mast Type Single Duplex
Battery 12v 120Ah x 2
Wheels Polyurethane
Wheels Diameter ø 220 / 78mm

Product Code

9749w, 9750w
