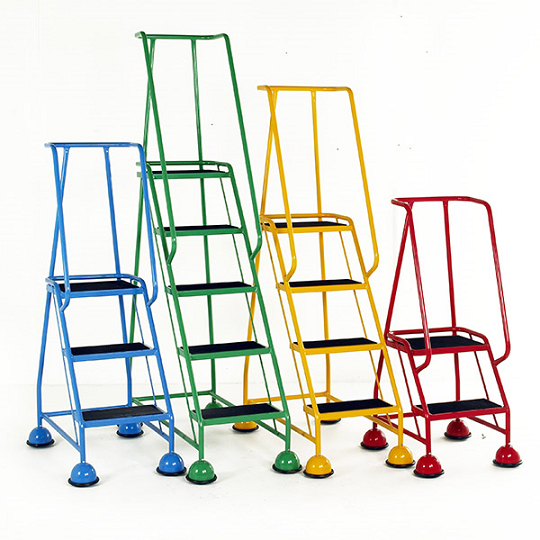

Description
Close fitting continuous single rail guard around top platform extending down each side of stairway as a short handrail.
Fitted with dome covered spring loaded castors which retract when weight is applied to the steps, giving firm contact with the floor.
Fully welded throughout.
Available with ribbed rubber or anti-slip treads
Castors: dome covered spring loaded 50mm dia swivel castors which retract when weight is applied to the steps, giving firm contact with the floor. Grey non marking tyres. Dome covers have a double rolled bottom edge together with protective cover strip, giving a neat appearance and reasonable protection to carpets and other floor surfaces.
Finish: hard wearing powder coated, with optional colours: blue, green, grey, orange, red, sandstone, white or yellow
Specification
.tg {border-collapse:collapse;border-spacing:0;}
.tg td{border-color:black;border-style:solid;border-width:1px;font-family:Arial, sans-serif;font-size:14px;
overflow:hidden;padding:10px 5px;word-break:normal;}
.tg th{border-color:black;border-style:solid;border-width:1px;font-family:Arial, sans-serif;font-size:14px;
font-weight:normal;overflow:hidden;padding:10px 5px;word-break:normal;}
.tg .tg-7fle{background-color:#efefef;font-weight:bold;text-align:center;vertical-align:top}
.tg .tg-r240{background-color:#680100;border-color:#680100;color:#ffffff;font-weight:bold;text-align:center;vertical-align:top}
.tg .tg-baqh{text-align:center;vertical-align:top}
.tg .tg-53gw{background-color:#680100;border-color:#680100;color:#ffffff;font-weight:bold;text-align:center;vertical-align:middle}
.tg .tg-kxn2{background-color:#EFEFEF;font-weight:bold;text-align:center;vertical-align:top}
.tg .tg-amwm{font-weight:bold;text-align:center;vertical-align:top}
.tg .tg-4k42{background-color:#680100;color:#ffffff;font-weight:bold;text-align:center;vertical-align:top}
NO OF
TREADS |
AVERAGE
WORKING
HEIGHT |
PLATFORM
HEIGHT |
PLATFORM
W X D |
OVERALL H X W X D
(INCL RAILS) |
WEIGHT |
TREAD TYPE |
Ribbed Rubber
Type |
Anti-slip
Type |
| 2 |
2.00m |
508mm |
380 x 280mm |
1185 x 580 x 615mm |
12kg |
9060w |
9061w |
| 3 |
2.26m |
762mm |
380 x 280mm |
1425 x 580 x 795mm |
14kg |
1196w |
1197w |
| 4 |
2.52m |
1016mm |
380 x 280mm |
1683 x 580 x 955mm |
17kg |
1198w |
1199w |
| 5 |
2.77m |
1270mm |
380 x 280mm |
1940 x 580 x 1120mm |
20kg |
1200w |
1201w |
| OPTIONAL EXTRA |
| Description |
Overall L x W x D |
Load Capacity |
Finish |
Type |

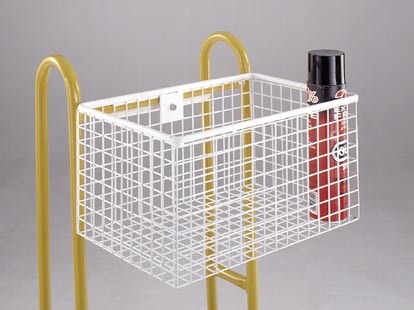

| Hook-on Wire Basket |
350 x 220 x 220mm |
3kg |
White powder coated |
1202w |
