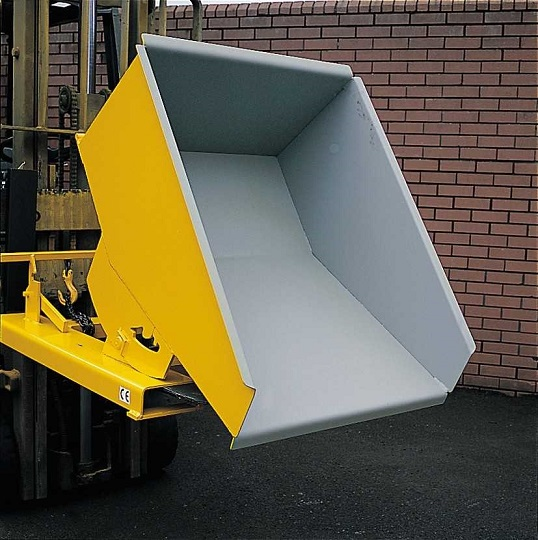

Self Dumping Hoppers

Price on Application

Category:

Description

> Self dumping hoppers aid the safe handling of waste disposal and factory refuse, bulk materials etc
> Heavy duty construction with roll forward action
> Light release tipping mechanism is accessible from either side
> Unique twin locking for increased locking when the skips under load
> Optional castors can be retrospectively fitted – please select Type C from castors above when ordering hopper
> Durable spray paint finish.

DOWNLOAD PDF

Specification

To suit forks: 150 x 65mm

.tg {border-collapse:collapse;border-spacing:0;}
.tg td{font-family:Arial, sans-serif;font-size:14px;padding:10px 5px;border-style:solid;border-width:1px;overflow:hidden;word-break:normal;}
.tg th{font-family:Arial, sans-serif;font-size:14px;font-weight:normal;padding:10px 5px;border-style:solid;border-width:1px;overflow:hidden;word-break:normal;}
.tg .tg-7fle{font-weight:bold;background-color:#efefef;text-align:center;vertical-align:top}
.tg .tg-baqh{text-align:center;vertical-align:top}
.tg .tg-amwm{font-weight:bold;text-align:center;vertical-align:top}

Type Volume Capacity OA Length OA Width OA Height Hopper Body Length Hopper Body Height OA Width of Fork Pockets
4935w 0.25m3 1000kg 1148mm 794mm 678mm 1025mm 547mm 890mm
4936w 0.40m3 1000kg 1410mm 794mm 781mm 1197mm 547mm 890mm
1163w 0.80m3 1000kg 1480mm 1300mm 834mm 1325mm 600mm 890mm
1164w 1.20m3 1250kg 1710mm 1300mm 985mm 1540mm 750mm 890mm
4937w 1.60m3 1500kg 1710mm 1700mm 985mm 1540mm 750mm 890mm
4938w 2.00m3 1500kg 1710mm 2125mm 985mm 1540mm 750mm 890mm
PHYSICAL PROPERTIES
TYPE WEIGHT (WITHOUT CASTORS) C of G (min) C of G (max) LOAD CENTRE
4935w 100kg 542mm 818mm 595mm
4936w 110kg 598mm 899mm 679mm
1163w 145kg 667mm 1042mm 735mm
1164w 170kg 756mm 1145mm 835mm
4937w 180kg 768mm 1178mm 835mm
4938w 225kg 792mm 1181mm 835mm
