Steel Hoop Guards

Price on Application

Category:

Description

The Steel Hoop Guards protect and segregate pedestrians, machinery and other zones from works vehicles, falls etc.

• Versatile and effective protection.
• Highly visible finish.
• Additional reinforcing crossbar.
• Easily installed with 4 bolts per guard (bolts supplied separately).
• Permanent & removable versions now available for fixing to vertical surfaces.

Applications:

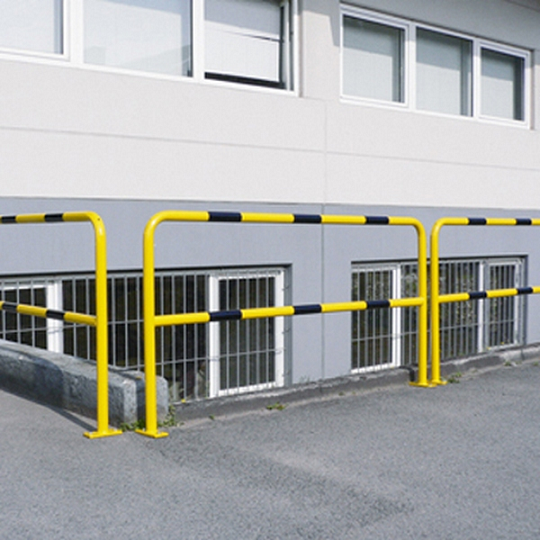

Protection of pedestrian areas (entrances, exits etc.), machinery, dangerous zones, elevation changes, loading docks, hazardous areas, garage pits etc.

Specifications:
• Lengths: 1,000, 1,500 and 2,000mm
• Height: 1,000mm Surface mount
• Diameter: 48mm with 2mm wall thickness

Fixing plates

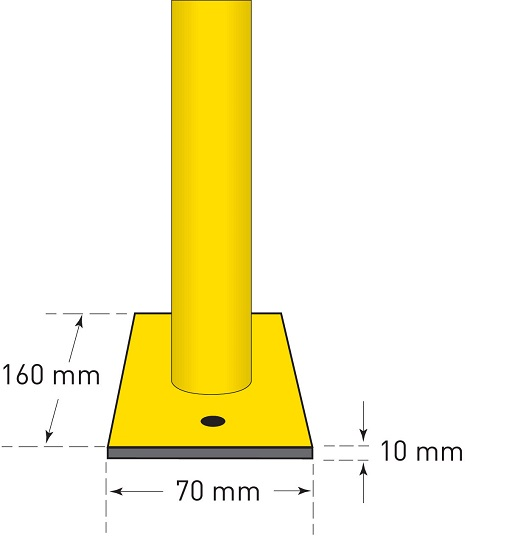

• Surface Mount – 70 x 160 x 10mm,  2 x mounting plates with pre-drilled fixing holes

Finishes:
• Indoor: Powder coated yellow with black bands.
• Outdoor: Hot Dip Galvanised and Powder coated yellow with black bands.

Specification

.tg {border-collapse:collapse;border-spacing:0;}
.tg td{border-color:black;border-style:solid;border-width:1px;font-family:Arial, sans-serif;font-size:14px;
overflow:hidden;padding:10px 5px;word-break:normal;}
.tg th{border-color:black;border-style:solid;border-width:1px;font-family:Arial, sans-serif;font-size:14px;
font-weight:normal;overflow:hidden;padding:10px 5px;word-break:normal;}
.tg .tg-54sw{background-color:#FFF;border-color:inherit;font-weight:bold;text-align:center;vertical-align:middle}
.tg .tg-9wq8{border-color:inherit;text-align:center;vertical-align:middle}
.tg .tg-7bjv{background-color:#680100;border-color:inherit;color:#ffffff;font-weight:bold;text-align:center;vertical-align:top}
.tg .tg-nbj5{background-color:#FFF;border-color:inherit;text-align:center;vertical-align:top}
.tg .tg-4px2{background-color:#680100;border-color:inherit;color:#ffffff;text-align:center;vertical-align:top}
.tg .tg-uzvj{border-color:inherit;font-weight:bold;text-align:center;vertical-align:middle}
.tg .tg-rcip{background-color:#FFF;border-color:inherit;text-align:center;vertical-align:middle}

Steel Hoop Guards,
2mm Wall Thickness, 48mm dia
1000mm high
Surface Mounted		 Length Finish Applications Weight Type

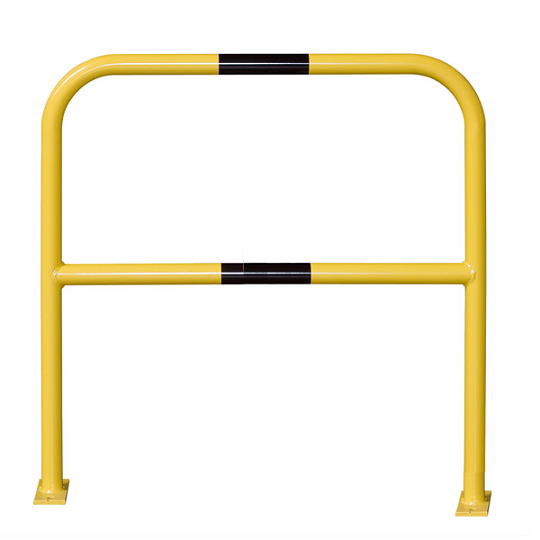

Image 1000mm powder-coated indoor 10kg 5815w
hot-dip galvanised and powder-coated indoor and outdoor 5816w

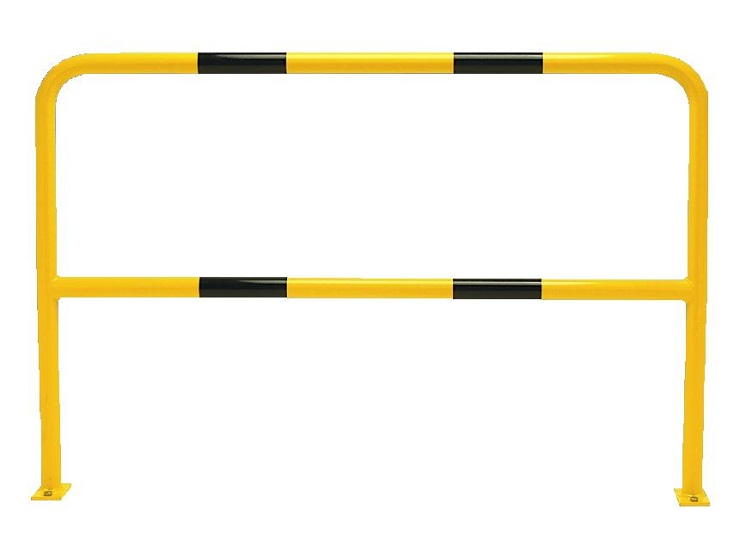

1500mm powder-coated indoor 12.50kg 5817w
hot-dip galvanised and powder-coated indoor and outdoor 5818w
2000mm powder-coated indoor 15kg 5819w
hot-dip galvanised and powder-coated indoor and outdoor 5820w
Fixings Description Type
Image Rawl Bolts 8 x 100mm
(Pack of 4)		 5821w
Image Through Bolt Anchors 12 x 120mm
(Pack of 4)		 9813w
