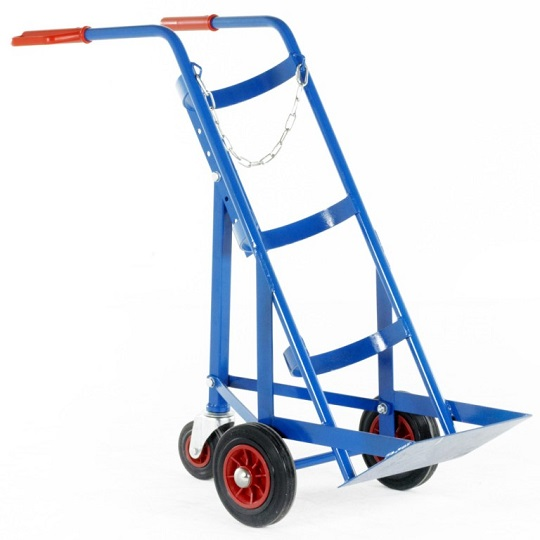

Tall Cylinder Support Trucks




Designed to carry cylinder loads on 3-wheel base, thus minimising operator fatigue and risk.

Easy to load with flat footplate.

Capacity: 150kg max load

All models fitted with adjustable rake back.

All models fitted with 200mm dia rubber wheels with roller bearings, and 125mm dia rear swivel rubber tyred castor

Overall front-back dimension: 1350mm.

Finish: blue epoxy



Capacity To suit cylinders dia O/A W x L Weight Type
150kg 230mm 430 x 1140mm 25kg 7204w
150kg 275mm 475 x 1140mm 25kg 7205w

Product Code

7204w, 7205w
