Description
Commercial duty double and triple extension ladders that can be split for use as single sections.
The comfortable ‘D’ shaped twist-proof rungs are secured into rigid box section stiles for comfortable safe use.
Product Features
• Commercial strength box-section construction
• Twist proof rung joint
• Reduce fatigue with deep, comfortable ‘D’ rungs
• Slip resistant high traction rungs
• Sections separate for use as single ladders
• Anti-slip rubber feet
• 3-year warranty
• Max Load 150kg
• EN131
DOWNLOAD PDF
Please note: prices include delivery to England & Wales only. Please contact our sales dept on 0121 454 7514 for transport costs to other areas.
Specification

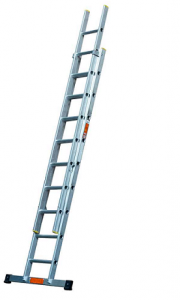

TRADE DOUBLE LADDERS
Top Horn: 250mm, Bottom Horn: 240mm, Rung Pitch: 250mm, Inner/Outer Width: 285/410mm |
| TYPE |
RUNGS |
CLOSED LENGTH |
APPROX WORKING HEIGHT * |
EXTENDED LENGTH |
OVERALL WIDTH |
DEPTH |
WEIGHT |
| 2674w |
2 x 9 |
2.5m |
4.6m |
4.0m |
410mm |
125mm |
10.5kg |
| 2675w |
2 x 11 |
3.0m |
5.6m |
5.0m |
410mm |
125mm |
12.3kg |
| 2676w |
2 x 13 |
3.5m |
6.6m |
6.0m |
410mm |
125mm |
14.3kg |
| 2677w |
2 x 15 |
4.0m |
7.6m |
7.0m |
410mm |
135mm |
18.8kg |
| 2678w |
2 x 17 |
4.5m |
8.6m |
8.0m |
410mm |
150mm |
22.6kg |
| 2679w |
2 x 19 |
5.0m |
9.6m |
9.0m |
410mm |
150mm |
24.9kg |
| 2680w |
2 x 21 |
5.5m |
10.6m |
10.0m |
410mm |
150mm |
30.0kg |

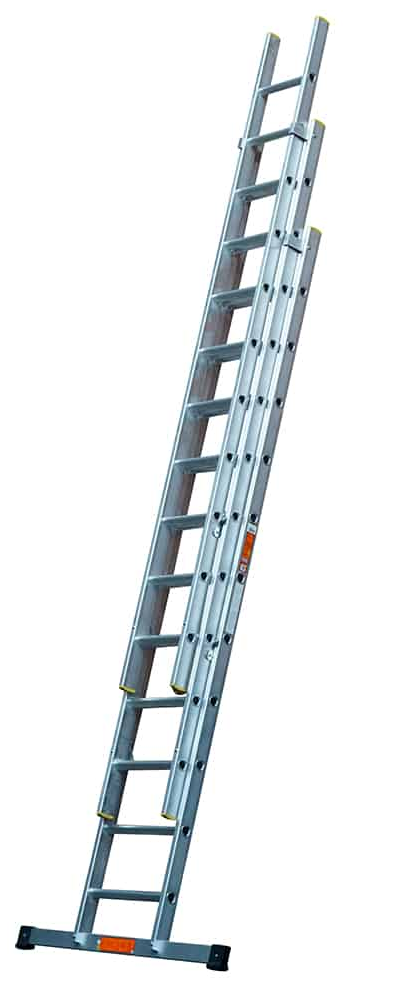

TRADE TRIPLE LADDERS
TOP HORN: 250MM, BOTTOM HORN: 240MM, RUNG PITCH:250MM, INNER/OUTER WIDTH: 285/485MM |
| TYPE |
RUNGS |
CLOSED LENGTH |
APPROX WORKING HEIGHT * |
EXTENDED LENGTH |
OVERALL WIDTH |
DEPTH |
WEIGHT |
| 2681w |
3 x 9 |
2.5m |
6.0m |
5.5m |
485mm |
200mm |
17.5kg |
| 2682w |
3 x 11 |
3.0m |
7.6m |
7.0m |
485mm |
200mm |
21.0kg |
| 2683w |
3 x 13 |
3.5m |
9.1m |
8.5m |
485mm |
200mm |
26.8kg |
| 2684w |
3 x 15 |
4.0m |
10.6m |
9.9m |
485mm |
220mm |
34.0kg |
* Working Height is calculated as 1600mm plus the height of the platform or last climbing tread, whichever is appropriate.
Product Code
2674w, 2675w, 2676w, 2677w, 2678w, 2679w, 2680w, 2681w, 2682w, 2683w, 2684
