Description

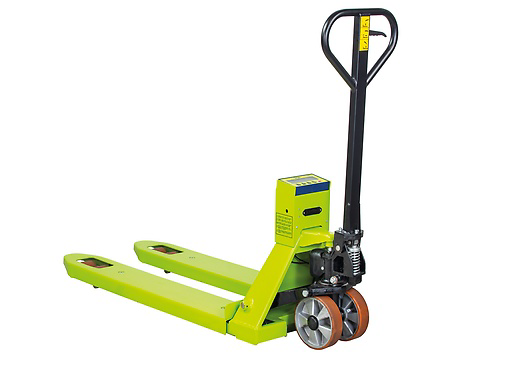

The PX25 pallet truck is a simple, economical and robust tool to be used for lifting and weighing of transported loads.
Thanks to the 4 load cells it is able to be very precise and functional in all internal weighing operations; ideal for checking incoming goods, avoiding overloads and determining shipping weights
Its large-sized 6 digits LCD display provides accurate and precise weighing in kg and lb.
The setting of tare shows both gross and net weights.
Weights are shown in 0.5/1 kg/lb steps with 0.05% precision.
Main functions are:
• Tare
• Unbalanced load
• Auto-off
DOWNLOAD PDF
Specification
.tg {border-collapse:collapse;border-spacing:0;}
.tg td{border-color:black;border-style:solid;border-width:1px;font-family:Arial, sans-serif;font-size:14px;
overflow:hidden;padding:10px 5px;word-break:normal;}
.tg th{border-color:black;border-style:solid;border-width:1px;font-family:Arial, sans-serif;font-size:14px;
font-weight:normal;overflow:hidden;padding:10px 5px;word-break:normal;}
.tg .tg-1wig{font-weight:bold;text-align:left;vertical-align:top}
.tg .tg-baqh{text-align:center;vertical-align:top}
| Type
| 9836w
|
| Load capacity |
2500kg |
| Lift height of forks |
90-115mm |
| Fork length |
1185mm |
| Fork spread |
555mm overall |
| Fork section W x D |
180 x 60mm |
| Weighing increments |
0.5kg |
| Thermal Printer |
No |
| Turning radius |
1426mm |
