Aluminium Platform Steps



Price on Application

Description

  • Lightweight heavy duty aluminium construction
  • 3, 4 and 5 tread versions available

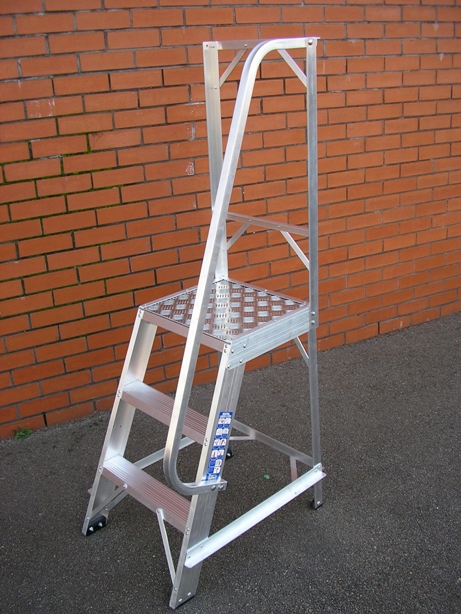

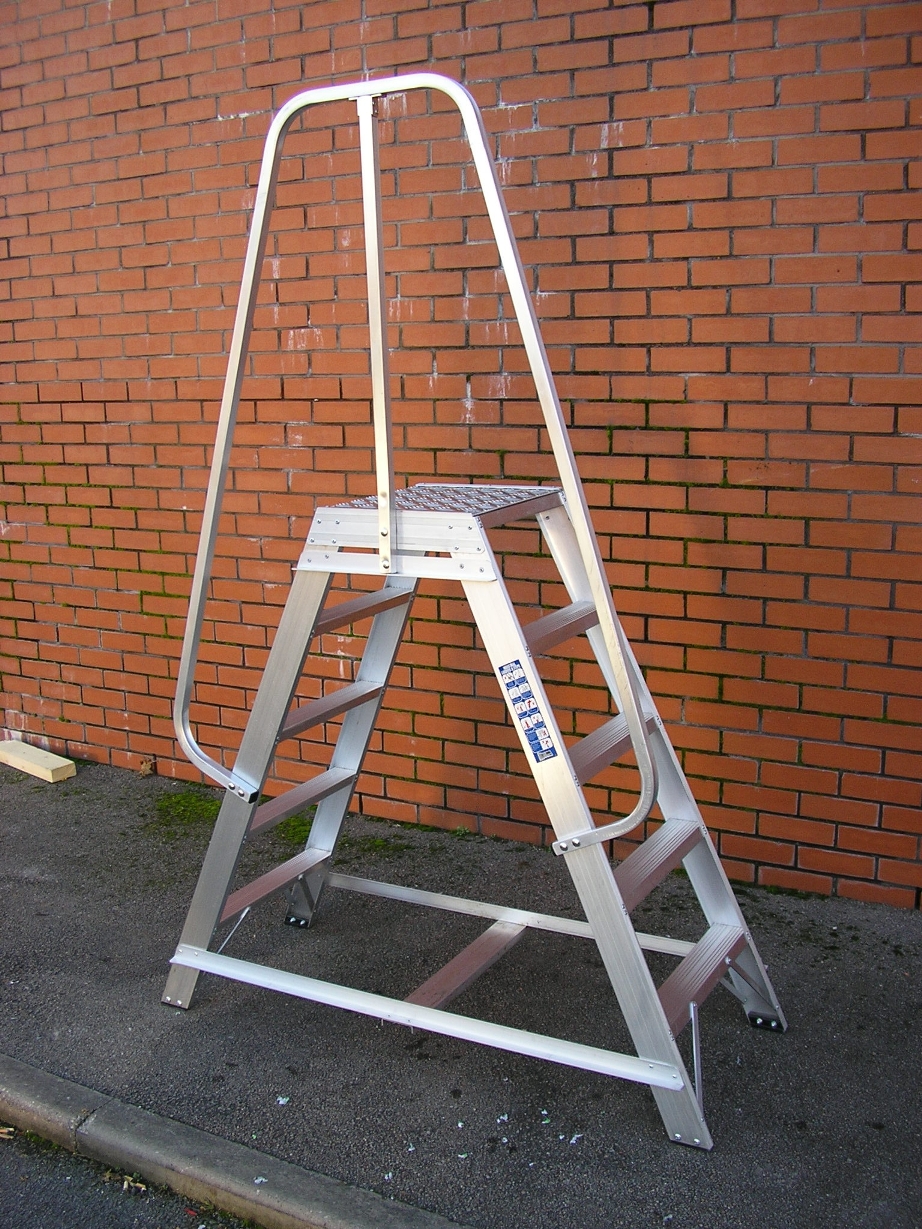

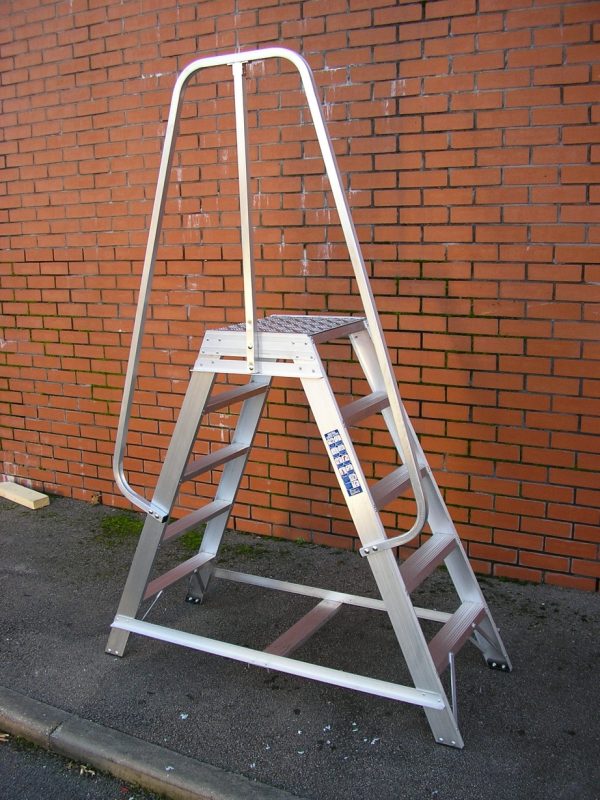

  • Single or Double sided steps
  • Double rivetted ribbed 80mm deep treads
  • Non-slip feet
  • Large working platform 400mm wide x 360mm deep
  • Bolt on Handrail available – per side, at extra cost (not supplied as standard & must be ordered at same time as steps to avoid extra carriage costs)

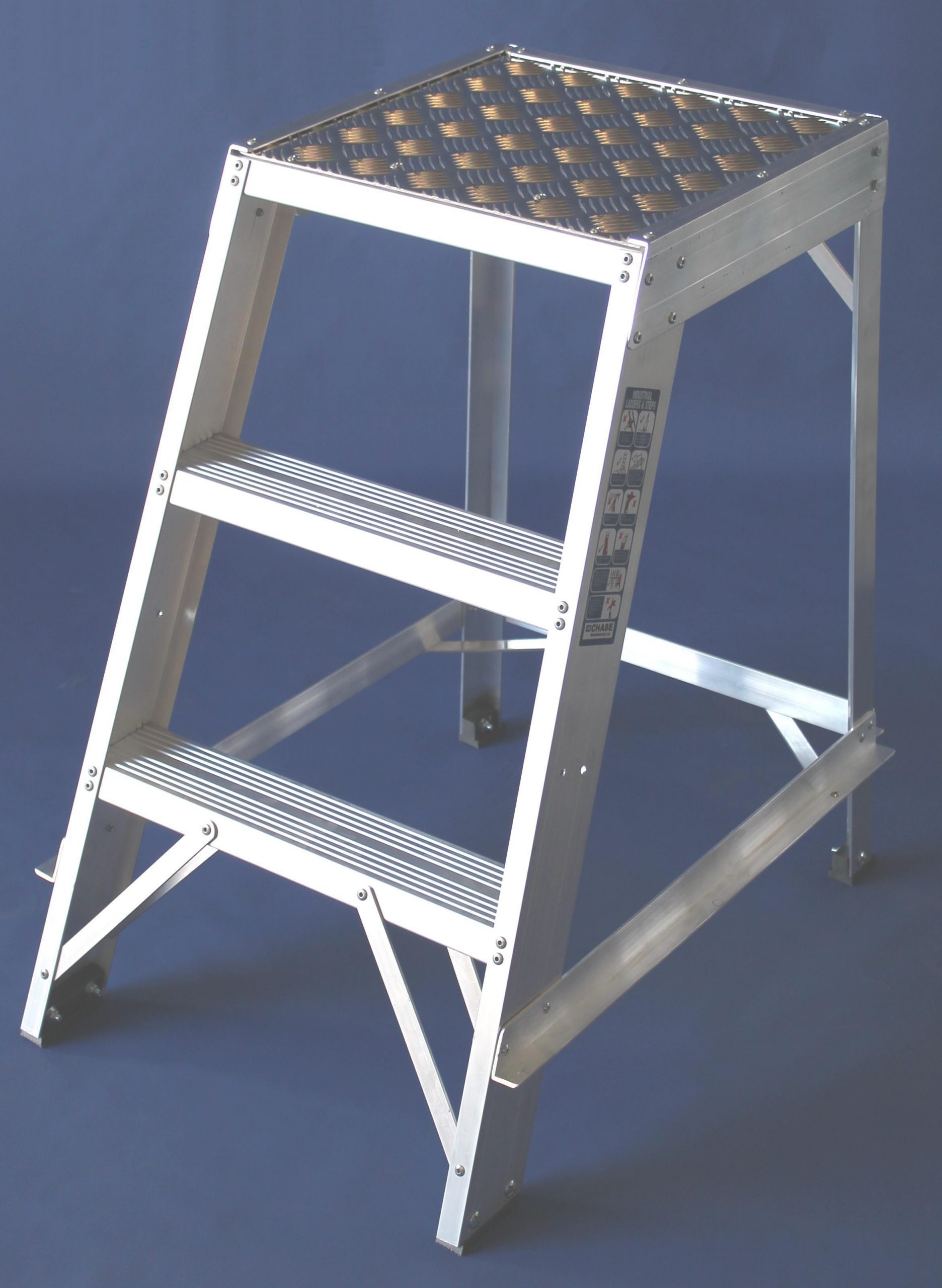

  • Please note: single sided steps without handrail option are supplied without rear railing as standard.   If Rear railing is required, this is available at extra cost.



Please see PDF below for full specification.

DOWNLOAD PDF

Specification

.tg {border-collapse:collapse;border-spacing:0;}
.tg td{font-family:Arial, sans-serif;font-size:14px;padding:10px 5px;border-style:solid;border-width:1px;overflow:hidden;word-break:normal;}
.tg th{font-family:Arial, sans-serif;font-size:14px;font-weight:normal;padding:10px 5px;border-style:solid;border-width:1px;overflow:hidden;word-break:normal;}
.tg .tg-7fle{font-weight:bold;background-color:#efefef;text-align:center;vertical-align:top}
.tg .tg-baqh{text-align:center;vertical-align:top}
.tg .tg-amwm{font-weight:bold;text-align:center;vertical-align:top}

No of Treads
incl top
platform

Platform height

Overall width

Single Sided Double Sided
Weight OA depth Type Weight OA depth Type
3 735mm 520mm 7kg 675mm 1184w 8kg 985mm 1187w
4 980mm 545mm 8kg 780mm 1185w 9kg 1195mm 1188w
5 1225mm 570mm 9kg 880mm 1186w 11kg 1400mm 1189w

.tg {border-collapse:collapse;border-spacing:0;}
.tg td{font-family:Arial, sans-serif;font-size:14px;padding:10px 5px;border-style:solid;border-width:1px;overflow:hidden;word-break:normal;}
.tg th{font-family:Arial, sans-serif;font-size:14px;font-weight:normal;padding:10px 5px;border-style:solid;border-width:1px;overflow:hidden;word-break:normal;}
.tg .tg-9hbo{font-weight:bold;vertical-align:top}
.tg .tg-amwm{font-weight:bold;text-align:center;vertical-align:top}
.tg .tg-yw4l{vertical-align:top}

Optional extras Type
Bolt on handrail (per side) 1190w
Tilt ‘n tip castors 1191w
Rear Rail for single sided steps only without handrail 1191RR

Note: single sided steps without handrail option are supplied without rear railing as standard
