Description

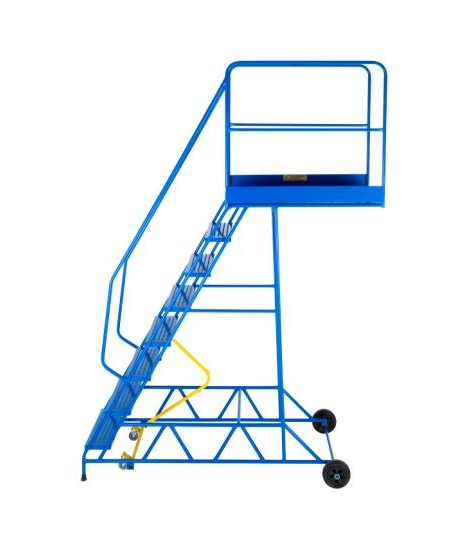

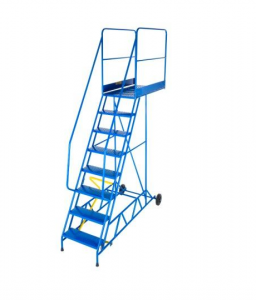

Cantilever Mobile Steps are the ideal solution to get to hard-to-reach areas.
While providing a stable platform, the operator can work directly over (hover) certain objects like Vehicles, Machinery and other equipment or tooling.
- Fixed handrails with chain to rear for ease of access
- Platform: 900mm deep x 730mm wide
- Tread depth: 200mm
- Cantilever overhang: 290mm from front of wheels, 380mm from axle
- Expanded metal tread provides excellent slip resistance and drainage
- Easy one-user manoeuvrability
- Side operated handlock
- Strong tubular steel construction
- Synthetic paint
- 1-year warranty
- 120kg work load capacity
- Colour: blue as standard
Full specification pdf
PRICE ON APPLICATION
Specification
.tg {border-collapse:collapse;border-spacing:0;}
.tg td{border-color:black;border-style:solid;border-width:1px;font-family:Arial, sans-serif;font-size:14px;
overflow:hidden;padding:10px 5px;word-break:normal;}
.tg th{border-color:black;border-style:solid;border-width:1px;font-family:Arial, sans-serif;font-size:14px;
font-weight:normal;overflow:hidden;padding:10px 5px;word-break:normal;}
.tg .tg-baqh{text-align:center;vertical-align:top}
.tg .tg-amwm{font-weight:bold;text-align:center;vertical-align:top}
| No of Treads
| Tread Depth
| Platform
Height
| Platform
L x W
| Overall
Height
| Overall W x D
(approx)
| Overhang from front of wheels
| Type
|
| 6 |
200mm |
1440mm |
900 x 730mm |
2410mm |
900mm x 2000mm |
290mm |
6143w |
| 7 |
200mm |
1730mm |
900 x 730mm |
2700mm |
900mm x 2200mm |
290mm |
6144w |
| 8 |
200mm |
1920mm |
900 x 730mm |
2890mm |
900mm x 2400mm |
290mm |
6145w |
