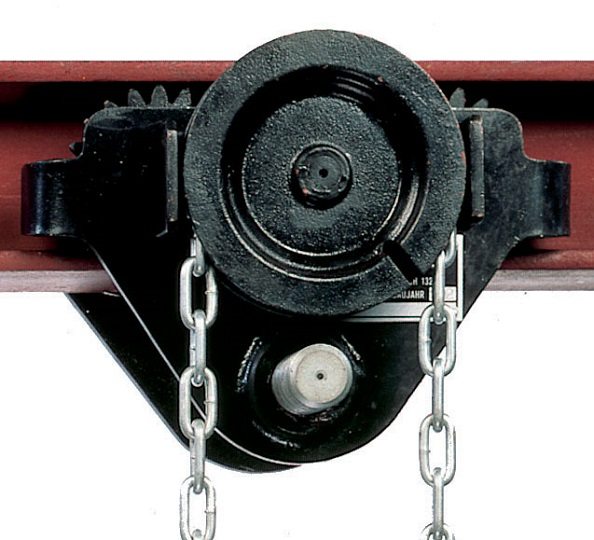

Chain Travel Trolleys

Price on Application

Description

> Quick fitting, smooth running chain operated travel trolleys
> Capacities available from 500kg to 5000kg .
> Adjustable for flange widths 50 to 220mm.
> Can be adjusted to fit most ā€˜Iā€™ section beams
> Ideal for use with hand chain hoists
> Low height due to compact design
> Cast iron rollers and roller bearing wheels for smooth running
> Central load suspension, no side movement with tilt protection
> Chain travel has 3m of chain supplied as standard
> Tested to 25% overload – test certificate supplied

Specification

.tg {border-collapse:collapse;border-spacing:0;}
.tg td{font-family:Arial, sans-serif;font-size:14px;padding:10px 5px;border-style:solid;border-width:1px;overflow:hidden;word-break:normal;}
.tg th{font-family:Arial, sans-serif;font-size:14px;font-weight:normal;padding:10px 5px;border-style:solid;border-width:1px;overflow:hidden;word-break:normal;}
.tg .tg-baqh{text-align:center;vertical-align:top}
.tg .tg-amwm{font-weight:bold;text-align:center;vertical-align:top}

Beam Section Chain
Travel
Type
Capacity Flange Width
500kg 50-220mm 1715w
1000kg 58-220mm 1716w
2000kg 66-220mm 1717w
3000kg 74-220mm 1718w
5000kg 90-220mm 1729w
