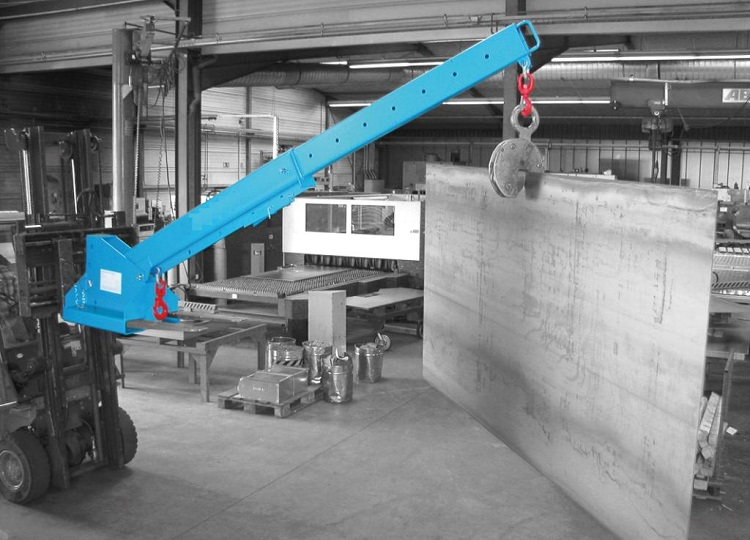

The extendable jib increases the reach of the forklift truck.
• Steel construction
• 2200mm basic length
• The jib can be extended 8 in steps to reach full length
• Variable working can be fixed in each of the 3 positions (15°, 30° & 45°) by using the pin provided.
• Secured to forks by chain to prevent slipping
• Supplied with 2 swivel hooks with safety catch
All prices on application. Please contact our sales on 0121 454 7514 for a quotation.
.tg {border-collapse:collapse;border-spacing:0;}
.tg td{font-family:Arial, sans-serif;font-size:14px;padding:10px 5px;border-style:solid;border-width:1px;overflow:hidden;word-break:normal;}
.tg th{font-family:Arial, sans-serif;font-size:14px;font-weight:normal;padding:10px 5px;border-style:solid;border-width:1px;overflow:hidden;word-break:normal;}
.tg .tg-bobw{font-weight:bold;text-align:center;vertical-align:bottom}
.tg .tg-baqh{text-align:center;vertical-align:top}
.tg .tg-amwm{font-weight:bold;text-align:center;vertical-align:top}
.tg .tg-9hbo{font-weight:bold;vertical-align:top}
| Type ↓ |
Jib Position → | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | Weight Kg ↓ |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Distance (mm) → | 695 | 990 | 1285 | 1580 | 1825 | 2090 | 2290 | 2490 | 2690 | 2890 | 3090 | 3290 | 3490 | 3690 | ||
| 6450w | Max Load (kg) → | 2500 | 2500 | 2500 | 1800 | 1400 | 1200 | 1050 | 950 | 850 | 770 | 700 | 650 | 600 | 560 | 218 |
| 6451w | Max load (kg) → | 5000 | 3550 | 2750 | 2250 | 1950 | 1700 | 1550 | 100 | 1300 | 1200 | 1150 | 1050 | 1000 | 950 | 250 |
