Description

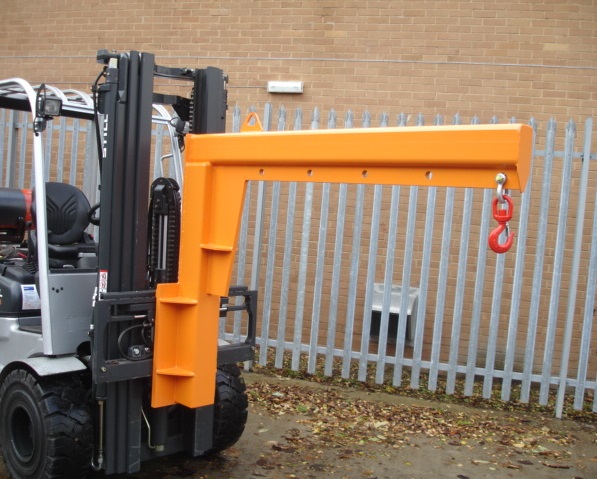

• When dedicated lifts are needed on a regular basis the carriage mountable High Lifting Jib delivers the perfect substitute to an overhead crane or static floor mounted Jib Arm.
• With the added benefit of a reduced lost load centre and, centre of gravity over and above the Fork Mounted version.
• The High Lift Jib offers the alternative of where a load may need to be lifted from a higher point.
Standard Features:
• Multi hook positioning from 1000-1750mm load centres

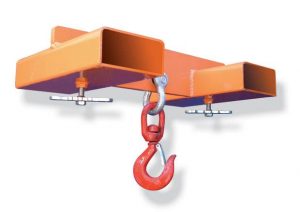

• Supplied complete with Swivel hook and bow shackle
• Quick release bottom hangers supplied as standard
• Lifting eye at centre of gravity for ease of movement and mounting on to forklift
• Painted bright orange for safety
Please note: all prices exclude delivery charges. Please contact us for transport costs.
Specification
.tg {border-collapse:collapse;border-spacing:0;}
.tg td{font-family:Arial, sans-serif;font-size:14px;padding:10px 5px;border-style:solid;border-width:1px;overflow:hidden;word-break:normal;border-color:black;}
.tg th{font-family:Arial, sans-serif;font-size:14px;font-weight:normal;padding:10px 5px;border-style:solid;border-width:1px;overflow:hidden;word-break:normal;border-color:black;}
.tg .tg-yj5y{background-color:#efefef;border-color:inherit;text-align:center;vertical-align:top}
.tg .tg-c3ow{border-color:inherit;text-align:center;vertical-align:top}
.tg .tg-uzvj{font-weight:bold;border-color:inherit;text-align:center;vertical-align:middle}
.tg .tg-7btt{font-weight:bold;border-color:inherit;text-align:center;vertical-align:top}
ITA/FEM
Class |
Capacity at Centres |
Weight |
C of G |
LLC |
Type |
| 500kg |
1000kg |
1250kg |
1500kg |
1750kg |
| 2 |
1000mm |
800mm |
700mm |
500mm |
405mm |
TBA |
TBA |
30mm |

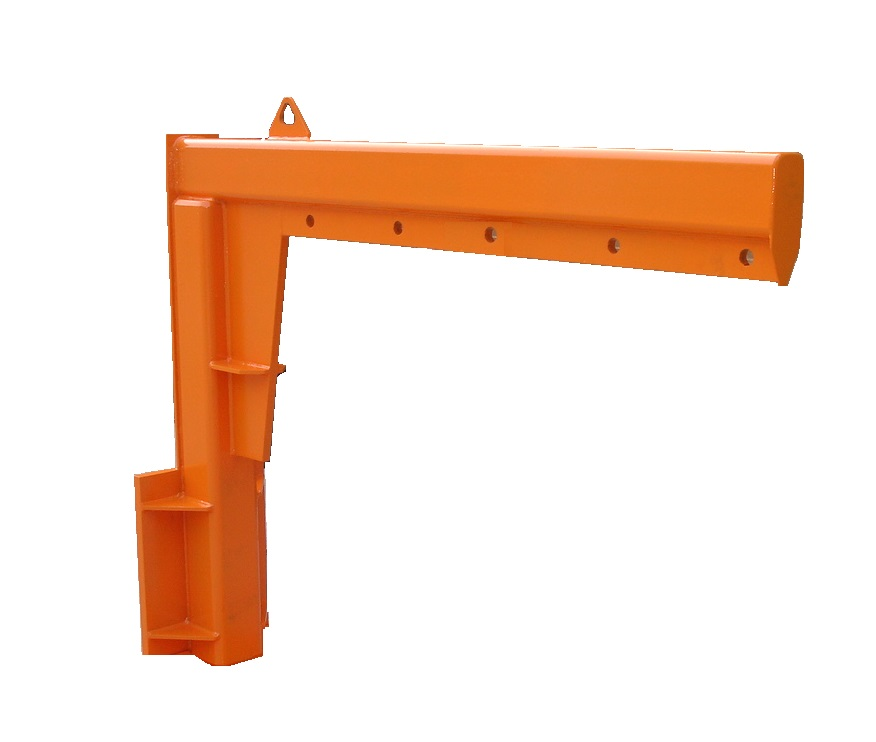

9607w |
| 2 |
2000mm |
1500mm |
1350mm |
800mm |
420mm |
253kg |
410mm |
30mm |
9608w |
| 3 |
3000mm |
2400mm |
1750mm |
900mm |
430mm |
253kg |
410mm |
40mm |
9609w |
| 3 |
4000mm |
3000mm |
2000mm |
1000mm |
470mm |
253kg |
410mm |
40mm |
9610w |
| 4 |
5000mm |
3500mm |
2700mm |
1850mm |
1400mm |
276kg |
430mm |
50mm |
9611w |
| 4 |
6000mm |
4650mm |
3800mm |
2450mm |
1650mm |
310kg |
430mm |
50mm |
9612w |
| 4 |
7000mm |
5375mm |
4750mm |
4125mm |
3500mm |
310kg |
430mm |
50mm |
9613w |
