Description

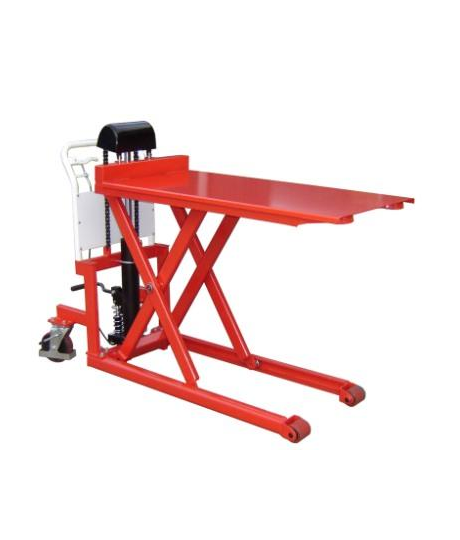

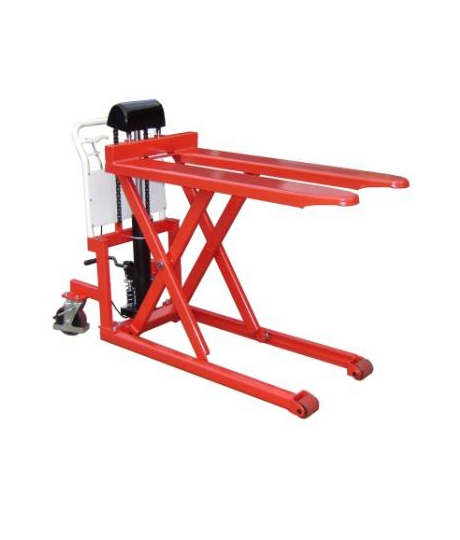

Skid lifters are high lift pallet trucks with scissor action. Unlike regular high lifters they can be moved around when raised which makes them ideal for use in manufacturing and packaging environments. Our skid lifters are also supplied with a removable platform so the machine doubles up as a scissor lift table.
FEATURES AND BENEFITS:
– Raise pallets or platform to correct working height to minimise back strain
– Combination of pallet truck and lift table
– Fully welded heavy duty steel frame – Easy to use control lever & total stop brake on castor wheel
– Foot operated pedal for easier and faster lifting
Specification
.tg {border-collapse:collapse;border-spacing:0;}
.tg td{font-family:Arial, sans-serif;font-size:14px;padding:10px 5px;border-style:solid;border-width:1px;overflow:hidden;word-break:normal;}
.tg th{font-family:Arial, sans-serif;font-size:14px;font-weight:normal;padding:10px 5px;border-style:solid;border-width:1px;overflow:hidden;word-break:normal;}
.tg .tg-baqh{text-align:center;vertical-align:top}
.tg .tg-9hbo{font-weight:bold;vertical-align:top}
.tg .tg-amwm{font-weight:bold;text-align:center;vertical-align:top}
| Model |
5660w |
5656w |
5657w |
5661w |
| Capacity |
500kg |
500kg |
1000kg |
1000kg |
| Fork length |
1115mm |
1115m |
1115mm |
1115mm |
| Fork width overall |
526mm |
690mm |
526mm |
690mm |
| Platform length |
1115mm |
1115mm |
1115mm |
1115mm |
| Platform width |
538mm |
703mm |
538mm |
703mm |
| Max fork height |
830mm/833mm* |
830mm/833mm* |
830mm/833mm* |
830mm/833mm* |
| Min fork height |
85mm/88mm* |
85mm/88mm* |
85mm/88mm* |
85mm/88mm* |
| Pumps/strokes to max height |
45 |
45 |
45 |
45 |
| Load roller – polyurethane |
70mm dia x 68mm |
70mm dia x 68mm |
72mm dia x 68mm |
72mm dia x 68mm |
| Steering wheel – polyurethane |
150mm dia x 40mm |
150mm dia x 40mm |
150mm dia x 40mm |
150mm dia x 40mm |
| Overall length |
1550mm |
1550mm |
1640mm |
1640mm |
| Overall width |
538mm |
703mm |
693mm |
858m |
| Approx height |
1012mm |
1012mm |
1307mm |
1307mm |
| Approx weight |
122kg |
136kg |
150kg |
158kg |
