Description
> Scissor lift table that can be used above ground or in a floor pit application
> Tables are controlled by a 24v ‘in-built’ hydraulic power pack via an up and down pendant
> Tables are powered by AC380v/50Hz/3 phase mains
> Relief valve on power pack prevents overloading
> Compensated flow valve gives controlled lowering speed
> Hose burst safety valve stops table lowering in the event of a hose breakage
> Safety perimeter on platform prevents descent on contact with obstructions
> Mechanical safety chocks are provided for maintenance
> Self lubricating bushes on axle pivot points
> Manufactured to EN1570 & EN60204-1
> Please note that colour may differ to one illustrated
Specification
.tg {border-collapse:collapse;border-spacing:0;}
.tg td{font-family:Arial, sans-serif;font-size:14px;padding:10px 5px;border-style:solid;border-width:1px;overflow:hidden;word-break:normal;}
.tg th{font-family:Arial, sans-serif;font-size:14px;font-weight:normal;padding:10px 5px;border-style:solid;border-width:1px;overflow:hidden;word-break:normal;}
.tg .tg-baqh{text-align:center;vertical-align:top}
.tg .tg-9hbo{font-weight:bold;vertical-align:top}
.tg .tg-amwm{font-weight:bold;text-align:center;vertical-align:top}
| Capacity
| 1000kg
| 2000kg
| 2000kg
|
| Max Height |
1010mm |
1010mm |
1780mm |
| Min Height |
190mm |
190mm |
360mm |
| Platform Size |
1300 x 800mm |
1300 x 800mm |
1300 x 850mm |
| Lifting Time |
40mm/s |
22mm/s |
35mm/s |
| Motor |
0.75kw |
.75kw |
2.2kw |
| Weight |
220kg |
280kg |
295kg |
| Type |

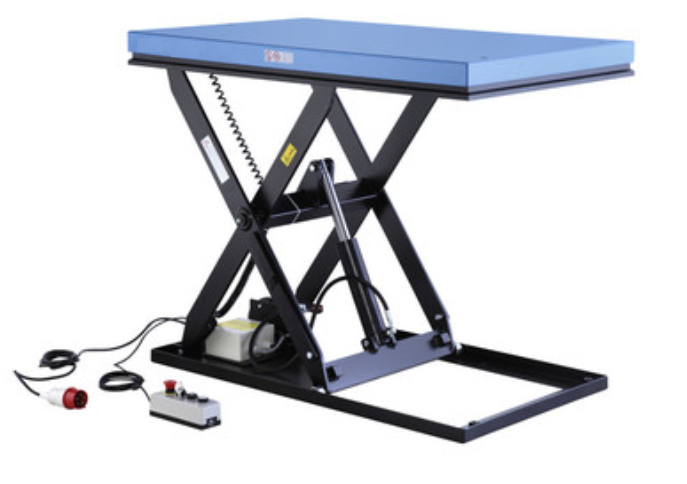

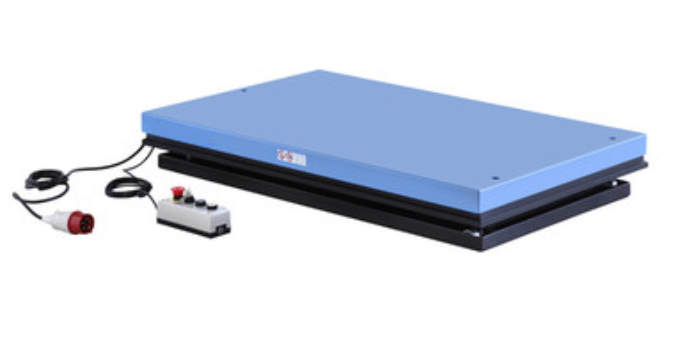

2548w |

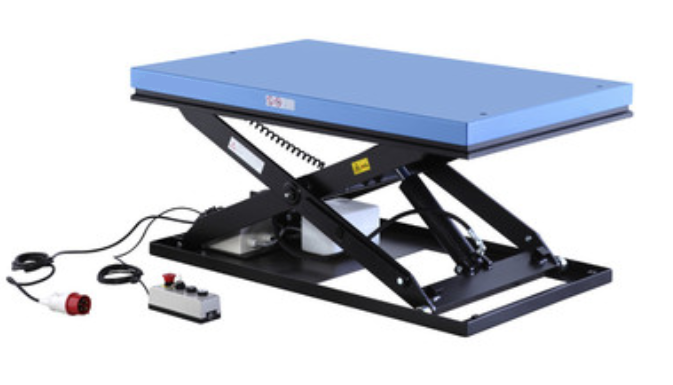

2549w |

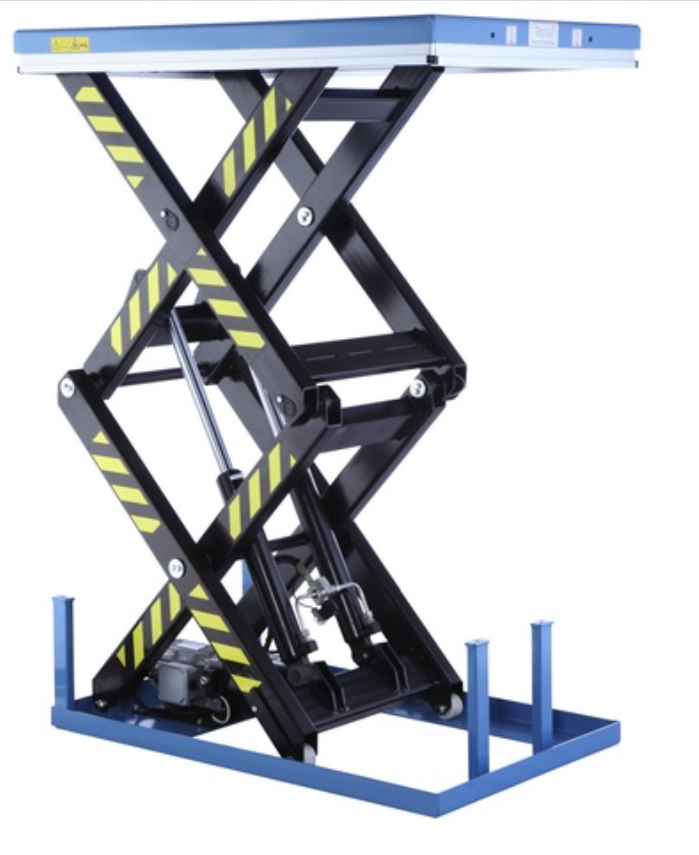

2550w |
